Cooling system
u Position HT collector 1 on aggregate support.
u Tighten screws 6 to torque.

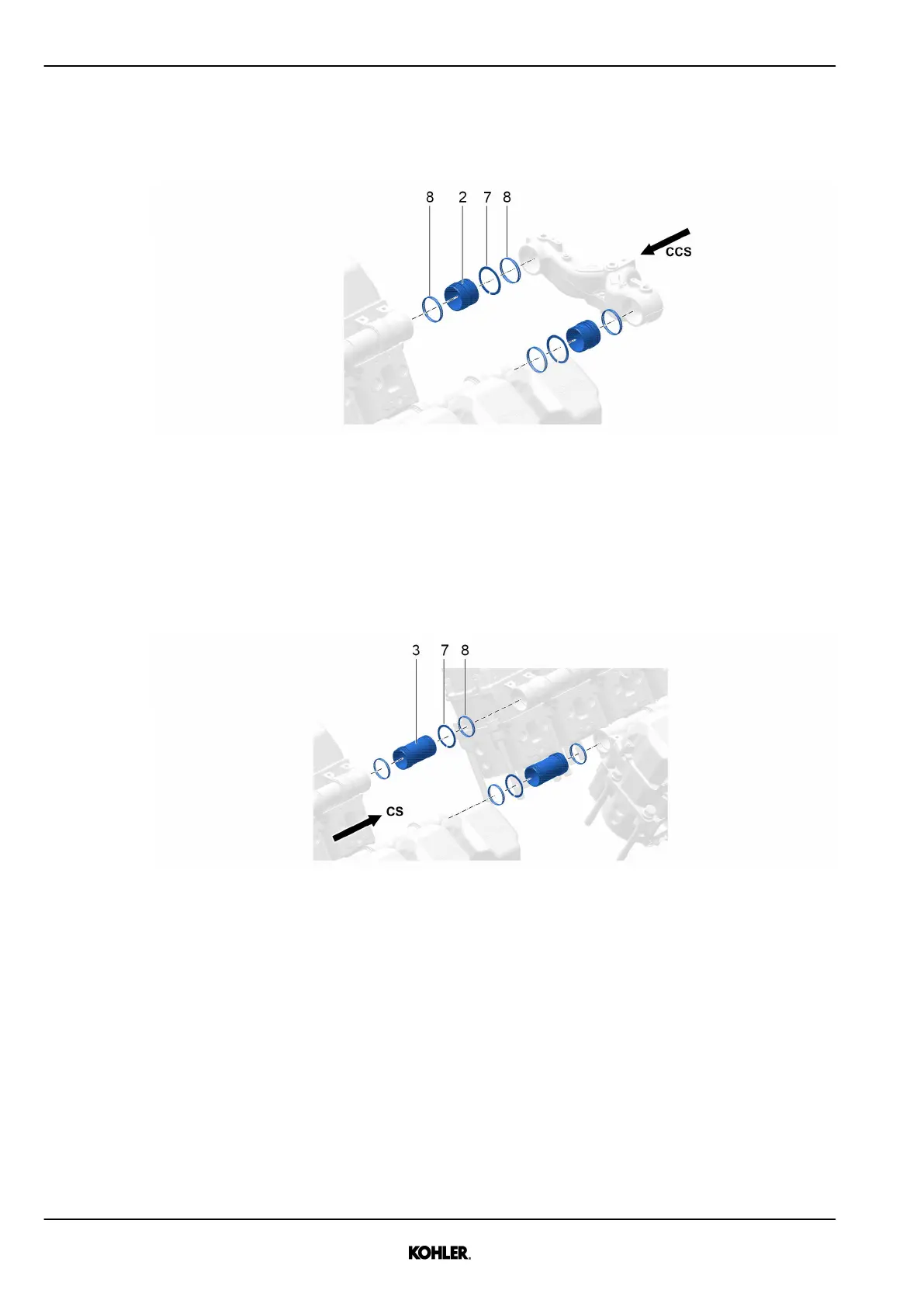

Fig. 229: Installing pipe
u Insert o-rings 8.
u Position clamp 7 in the pipe middle.
u Insert A bank pipe 2 into collector.
u Insert B bank pipe 2 into rocker arm housing.
u After housing is installed, push pipes to the right until clamp 7 can be placed in its groove.
Fig. 230: Installing water pipe
u Insert o-rings 8.
u Position clamp 7 in middle of pipe 3.
u Insert pipe 3 from the left into the rocker arm housing.
u After housing is installed, push pipe to the right until clamp 7 can be placed in its groove.
