Service and Repair Manual Repair
Fuel system
Installation

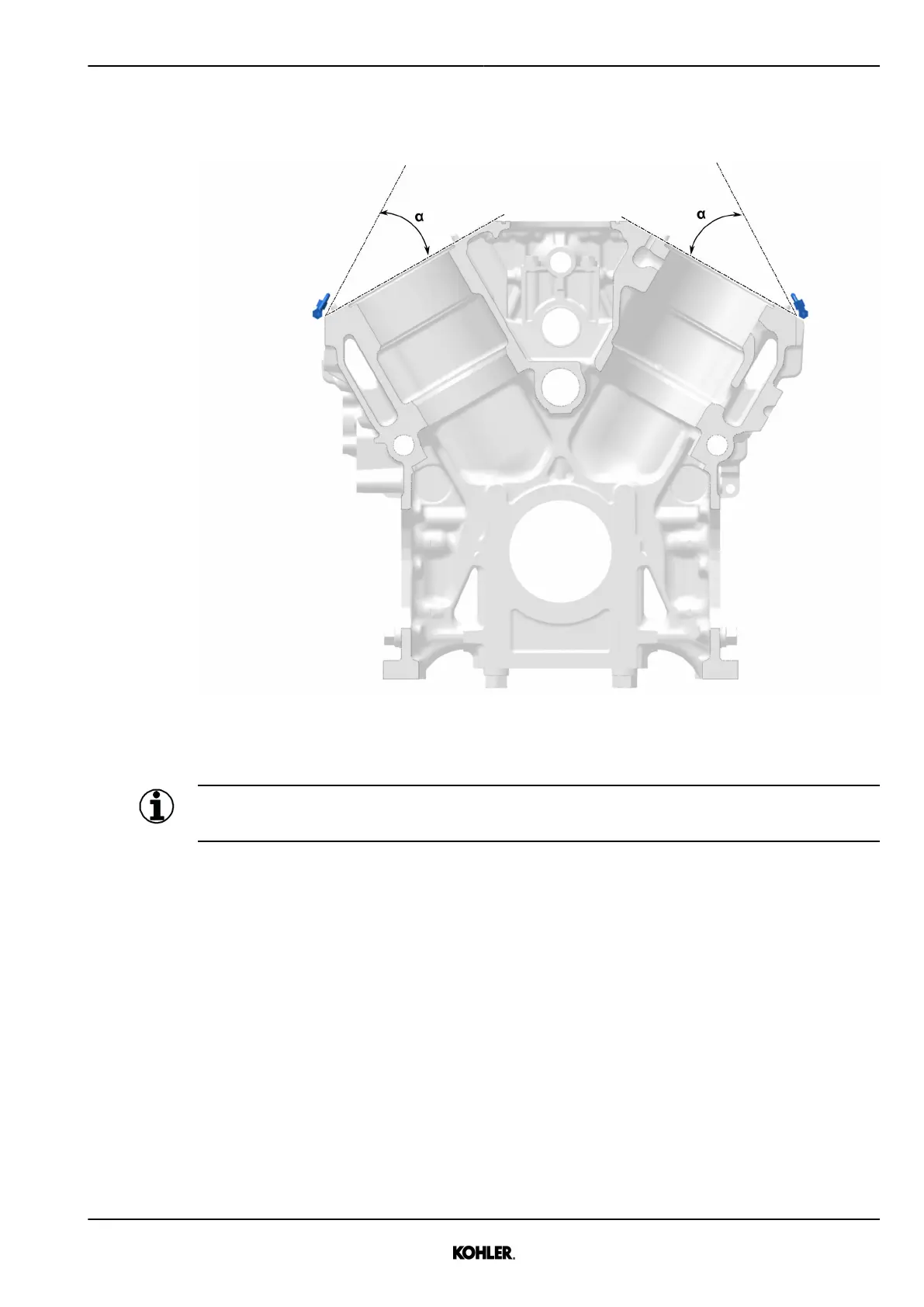

Fig. 122: Fuel return and venting pipes inclination
u Mount fuel return and venting pipes.
Information
Install fuel return and venting pipes with an angle of 30° minimum in relation to the crankcase.
u Tighten fuel return and venting pipes to torque.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening torques,
page 274.)
3.6.2
High pressure pipes removal and installation
Previous tasks
q Release the pressure of the HP fuel system using Kodia tool.
