Charge air system
3.7 Charge air system
3.7.1 Air intake line removal and installation
Previous tasks
Not applicable.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Vaseline
– Rags
Overview

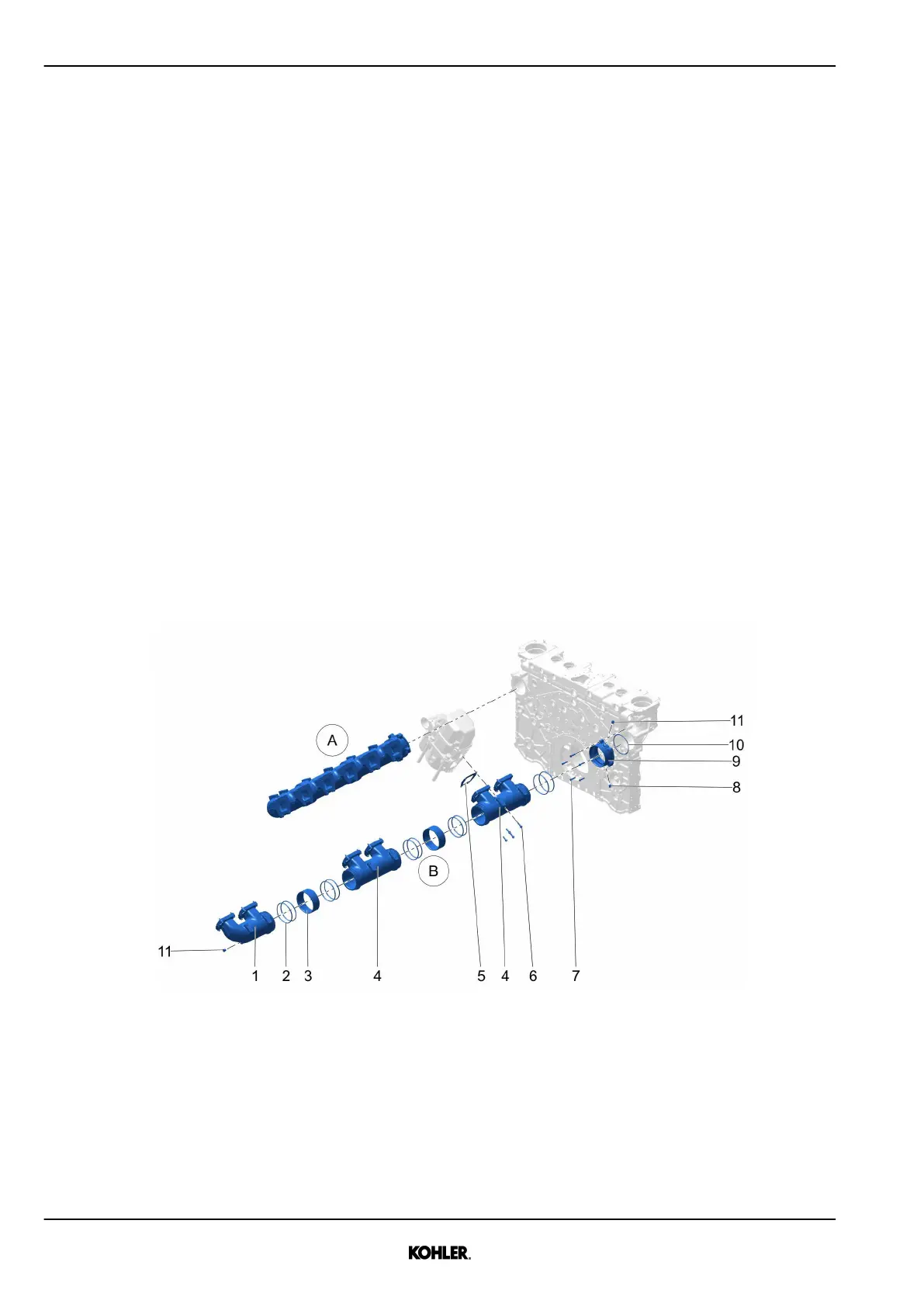

Fig. 160: Task overview
1 Charge air pipe – end segment (B bank) 7 Screw (M10)
2 O-ring 8 Screw plug
3 Pipe 9 Connection piece
4 Charge air pipe – middle segment (B
bank)
10 O-ring
5 Gasket 11 Screw plug
6 Screw (M10)
140
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
