Exhaust gas system
2 Straight air intake connection 6 O-ring
3 Screw plug 7 Straight air intake connection
4 Screw (M8) 8 Connection flange
Removal
u Remove nuts 1.
u Remove straight air intake connections 2, 7.
Installation
u
Install straight air intake connections 2, 7 with nuts 1.
u Install flanges 5, 8 with o-rings 6 and screws (M8) 4.
u Install screw plugs 3 in straight air intake connections 2, 7.
Specific values
Not applicable.
Tightening specifications

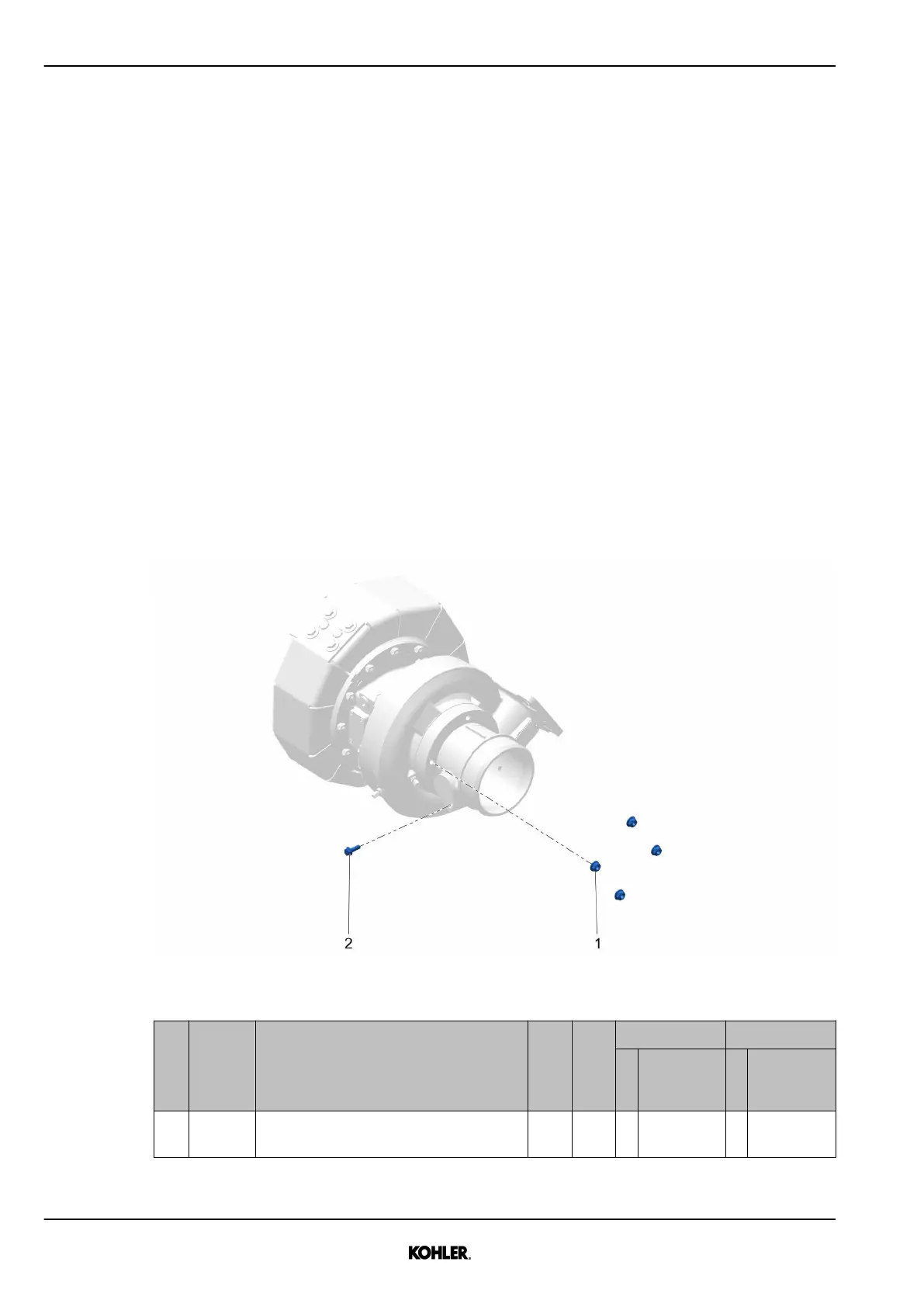

Fig. 182: Admission pipes
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 221AA EN 1664 M10x1,5-10.9-FLZN - Yes 1 35 Nm
26 ft-lb
- -
160
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
