Exhaust gas system

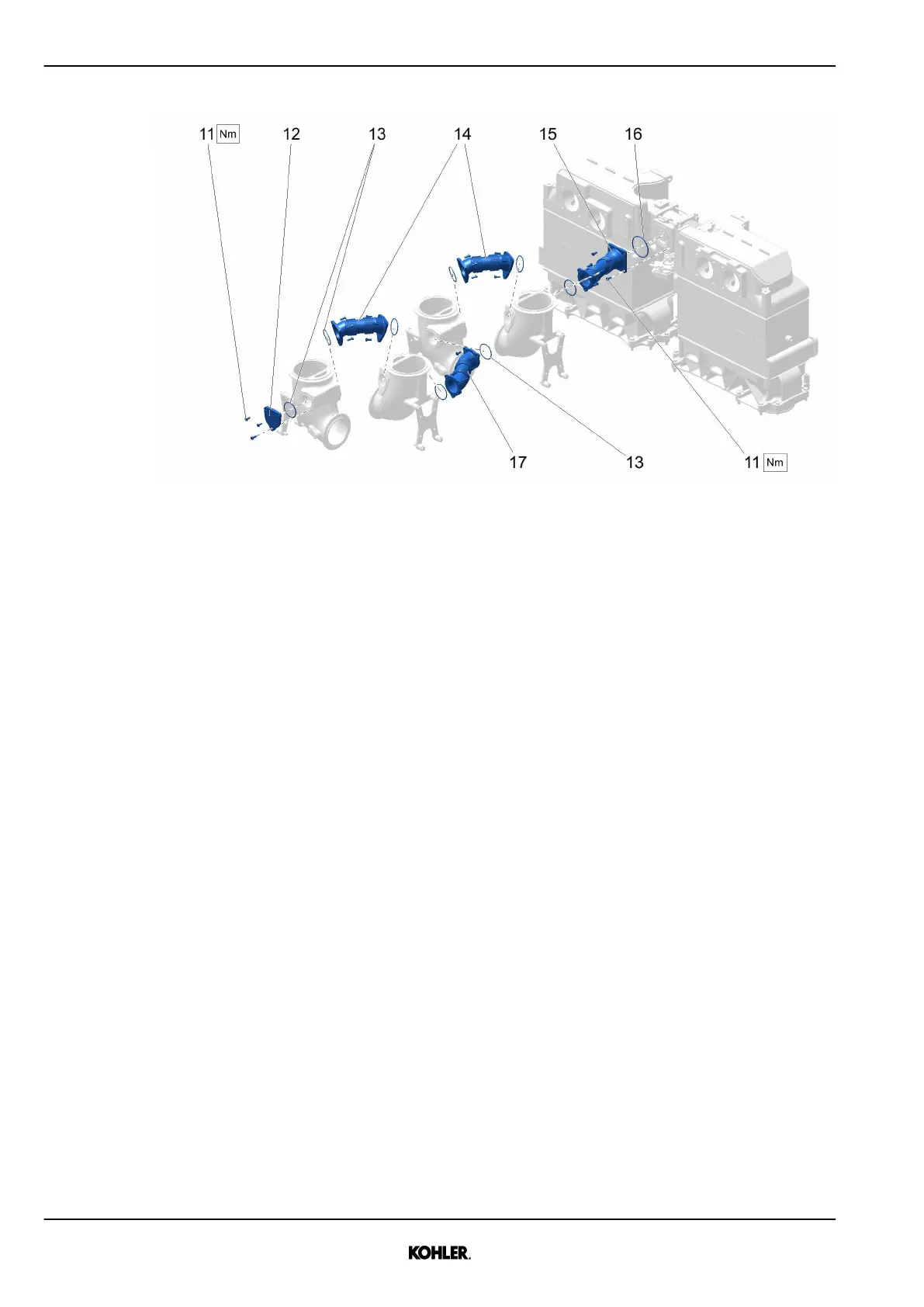

Fig. 190: Installing compensators
u Install cover 12 with screws 11, and o-ring 13.
u Install compensators 14, 17 with screws 11, and o-rings 13.
u Install compensator 15 with screws 11, and o-rings 13, 16.
u Tighten screws 11 to torque.
Specific values
Not applicable.
168
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
