Cooling system
u Screw distributor block 6 with screws 5.
u Install venting pipes 1, 3, 7, 9, 10, 11 with T connector 4 and flange joints 2, 8.

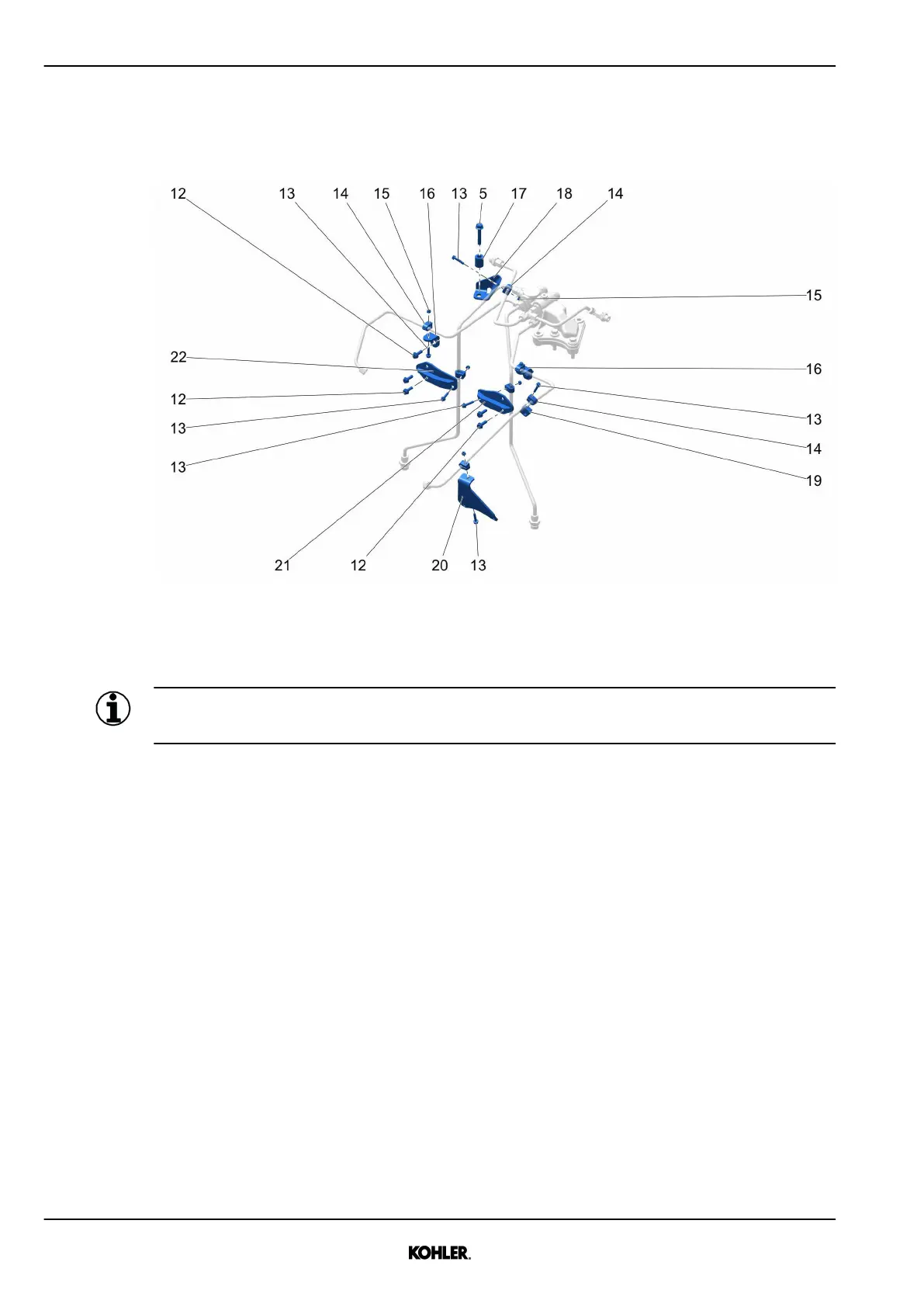

Fig. 239: Installing venting lines
u Install clamps 14 and holders 16, 18, 19, 20, 21, 22 with screws 5, 12, 13, distance sleeve 17
and nuts 15.
Information
Use Loctite 243 only for screw 13 in holder 19.
