Service and Repair Manual Product description
Technical description

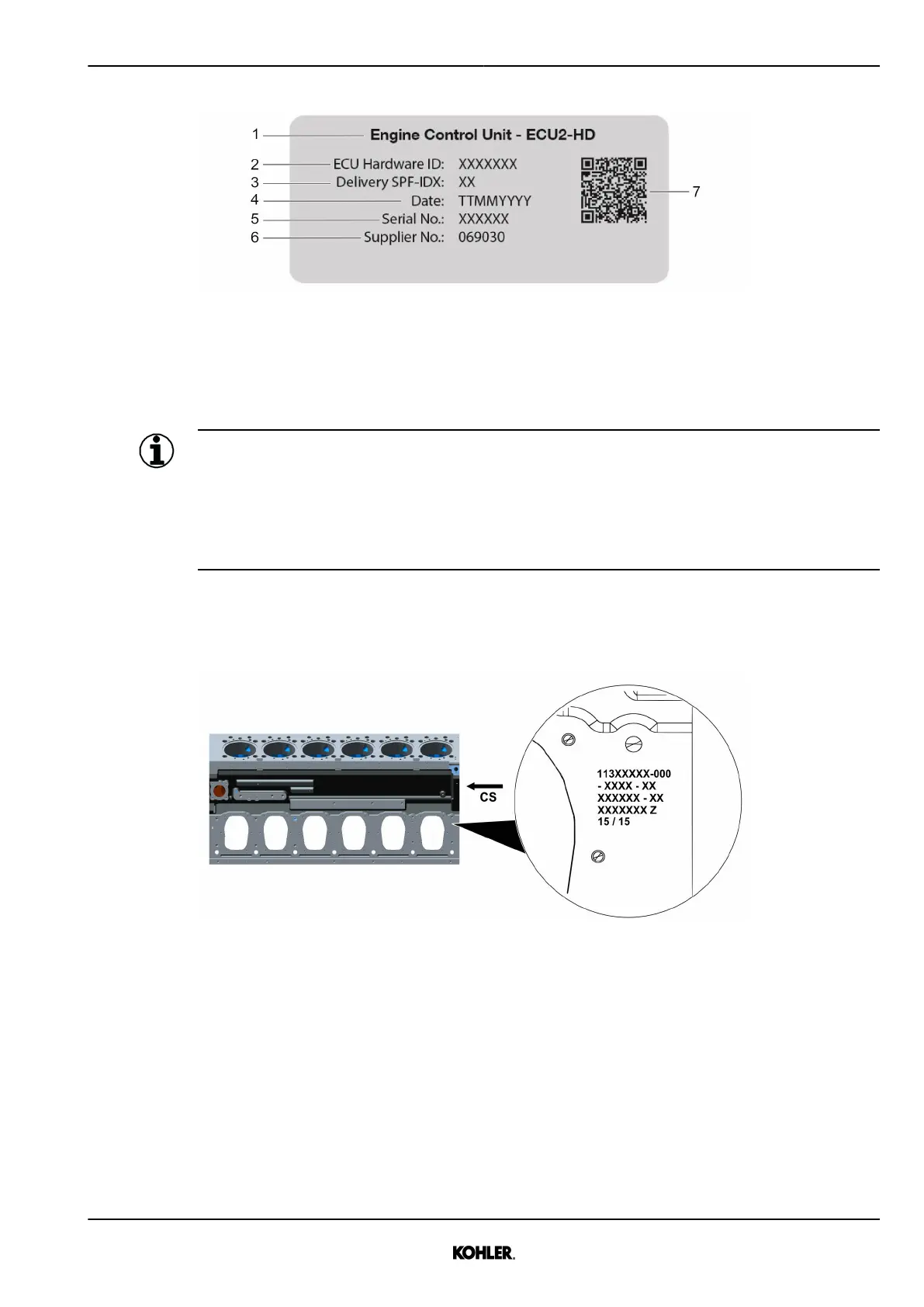

Fig. 11: Hardware nameplate
1 Product designation 5 Serial number
2 Engine control unit ID number 6 Supplier number
3 Hardware version 7 QR Code
4 Delivery date
Information
u The information on the engine control unit nameplate corresponds to the delivery status (ex:
works Kohler Co.). Depending on software updates in the field, it may be the case that this infor-
mation is no longer up to date.
u The real information can be viewed in the device display or read out with the KOHLER diag-
nosis and service tool KODIA.
Crankcase identification
The crankcase identification is stamped onto the left side of the crankcase.
Fig. 12: Crankcase identification location
Connecting rod identification
The connecting rod identification is stamped on the connecting rod and on the connected rod
bearing cap.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
23
