Overview

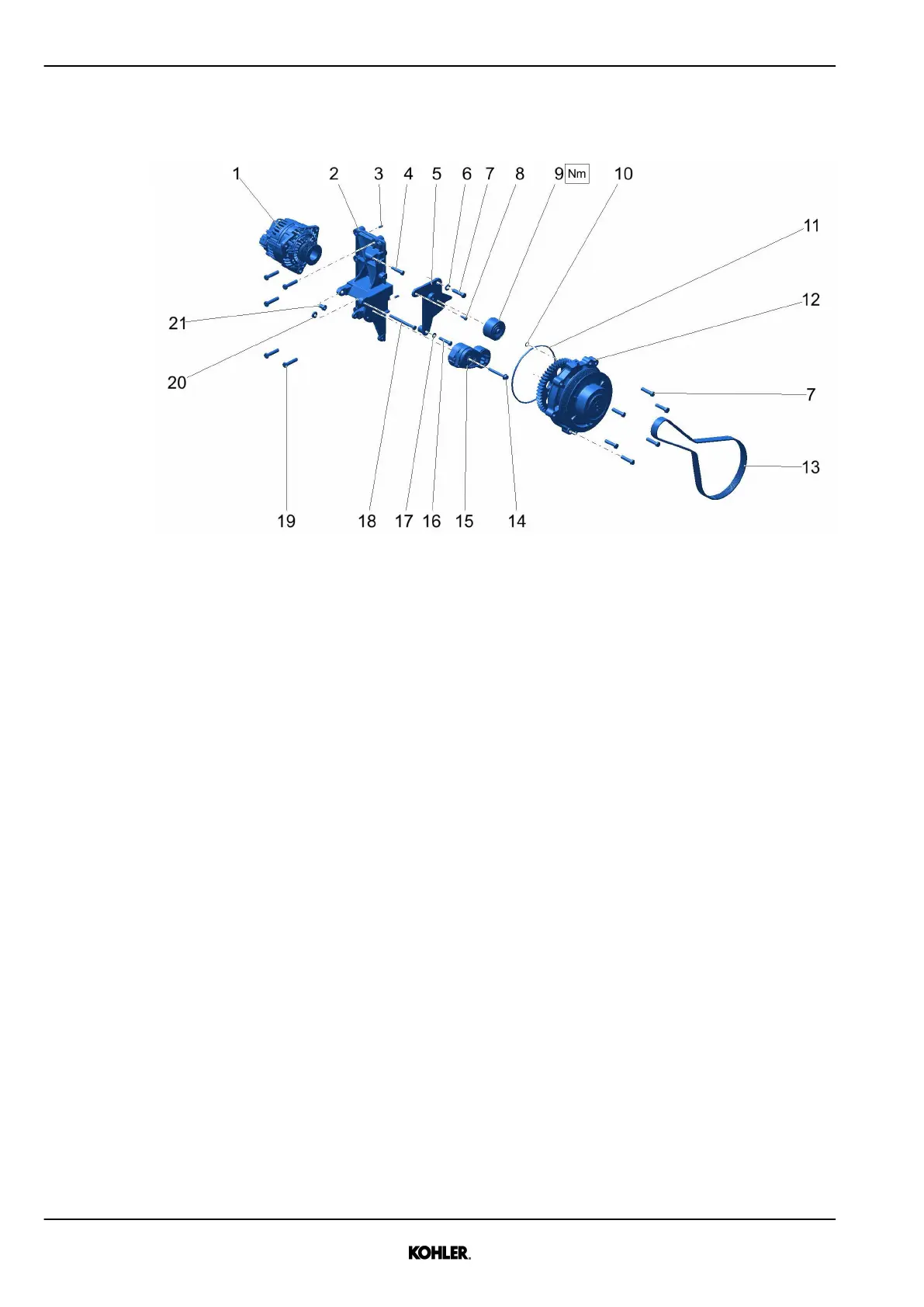

Fig. 273: Task overview
1 Battery charging alternator 12 Auxiliary PTO
2 Bracket 13 Belt
3 Pin 14 Screw (M10)
4 Screw (M10) 15 Tensioning device
5 Retaining plate 16 Screw (M10)
6 Washer 17 Washer
7 Screw (M12) 18 Screw (M10)
8 Screw (M8) 19 Screw (M12)
9 Roller 20 Distance sleeve (EATS only)
10 O-ring 21 Sleeve
11 O-ring
