Service and Repair Manual Tools and devices
Tools

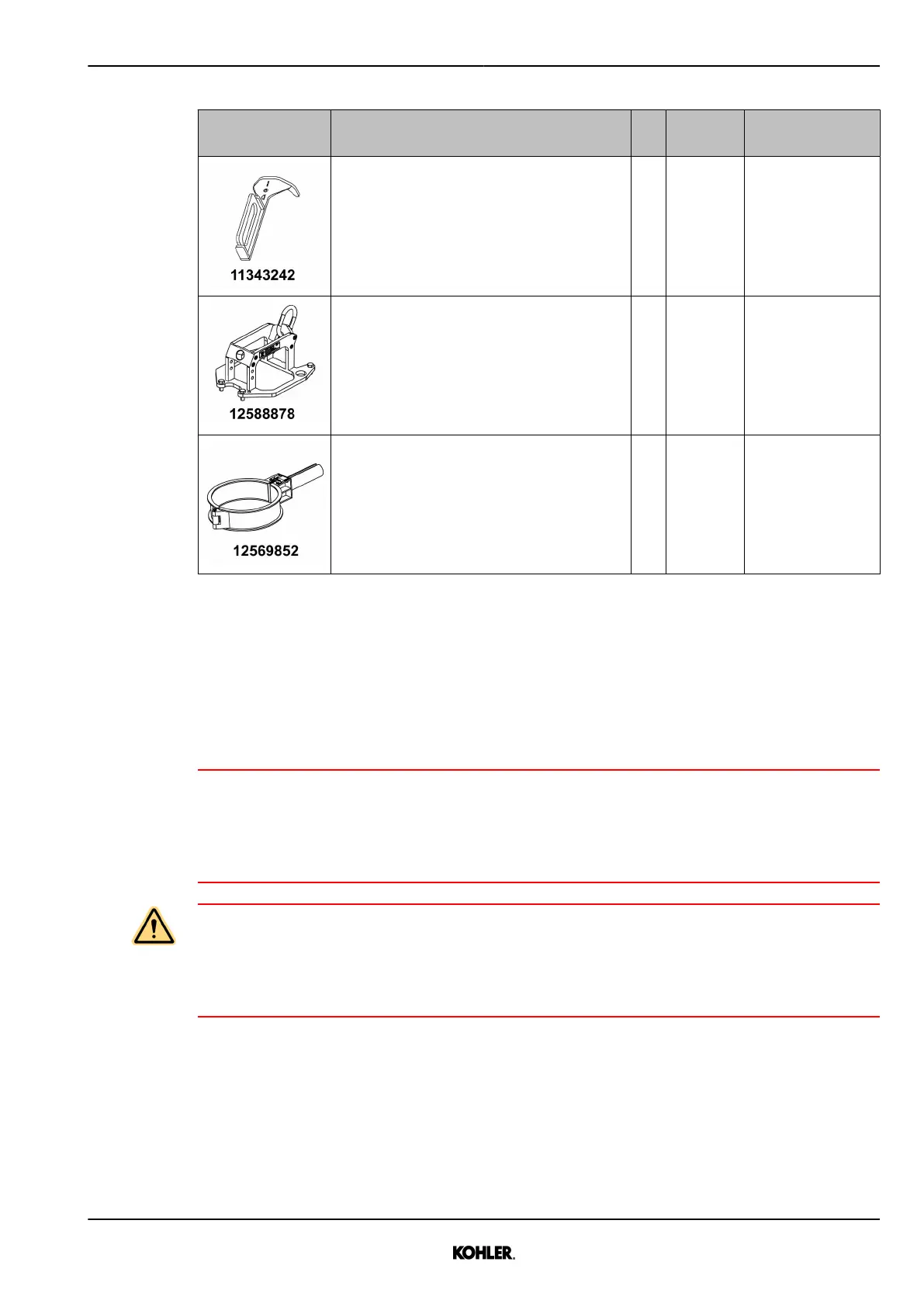

Special tool Designation Qty Ident KOHLER Ident
number
Coolant Connector Pipe Tool 1 11343242 230612686
Cylinder head lifting device 12588878 230612865
Piston ring compressor 12569852 230613049
Tab. 57: Special tools
4.1.2 Turning device
Safe handling of the turning device
The turning device is used to turn a gearwheel which drives the flywheel gear rim, and is mounted
on the engine on delivery.
NOTICE
Risk of engine main failure by forgotten turning device
Keeping the turning device screwed on the flywheel housing while operating the engine will lead to
a break of the turning device and to an engine main failure!
u Dismount immediately the turning device and mount the cover on the flywheel housing.
WARNING
Risk of crushing, shearing, cutting or severing by use of the turning device
Using the turning device can lead to injuries to personnel working on the engine!
u Before using the turning device, prevent the personnel in the vicinity of the engine and get
confirmed they stand in a secure area.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
269
