Service and Repair Manual Product description
Technical description
Charge air cooler identification

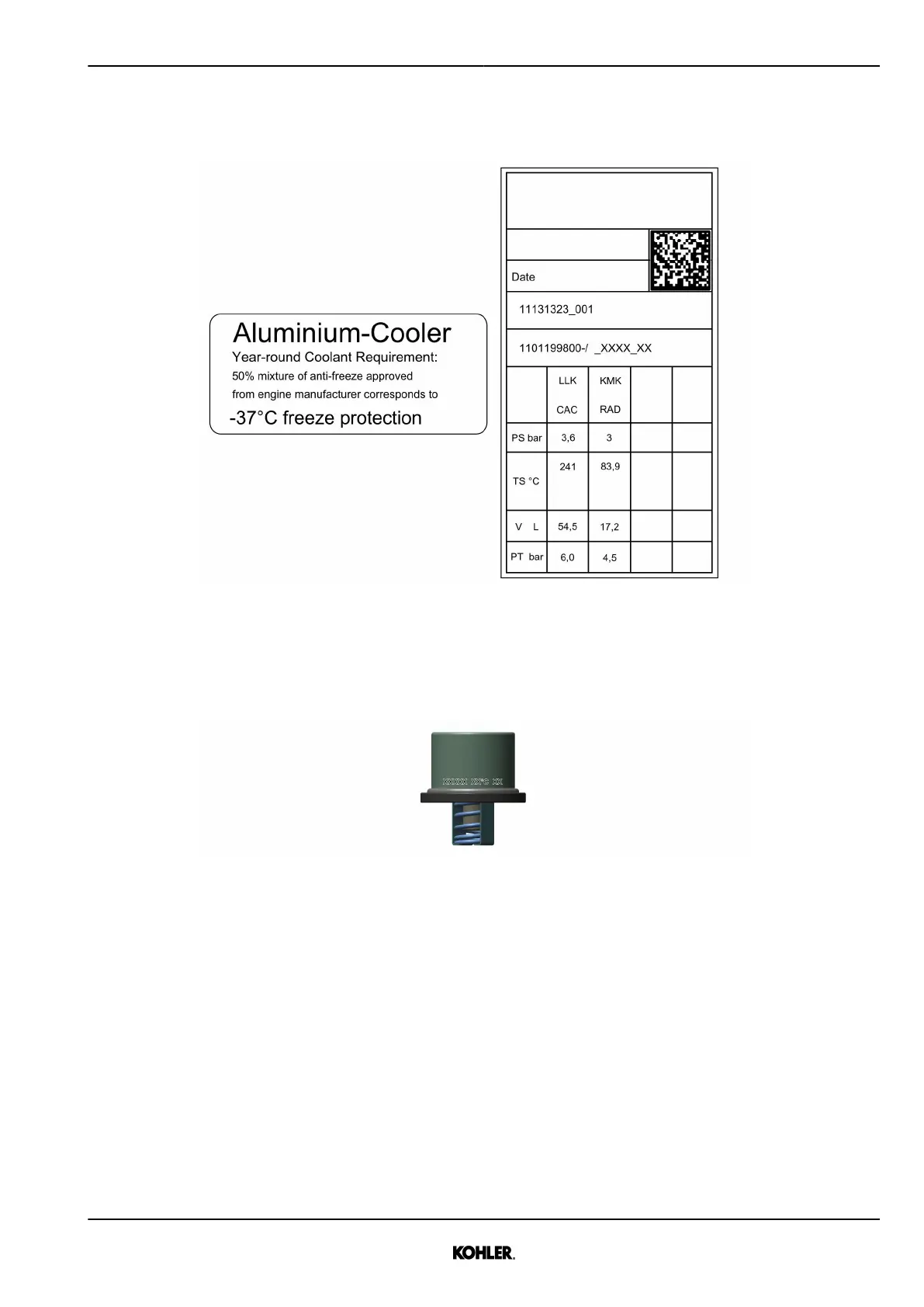

Fig. 19: Charge air cooler nameplates
The charge air cooler company nameplate is mounted on the charge air cooler.
Thermostat opening point value
Fig. 20: Thermostat markings
The opening point value of the thermostat is engraved on the thermostat.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
27
