Repair Service and Repair Manual
Driving gear
Overview

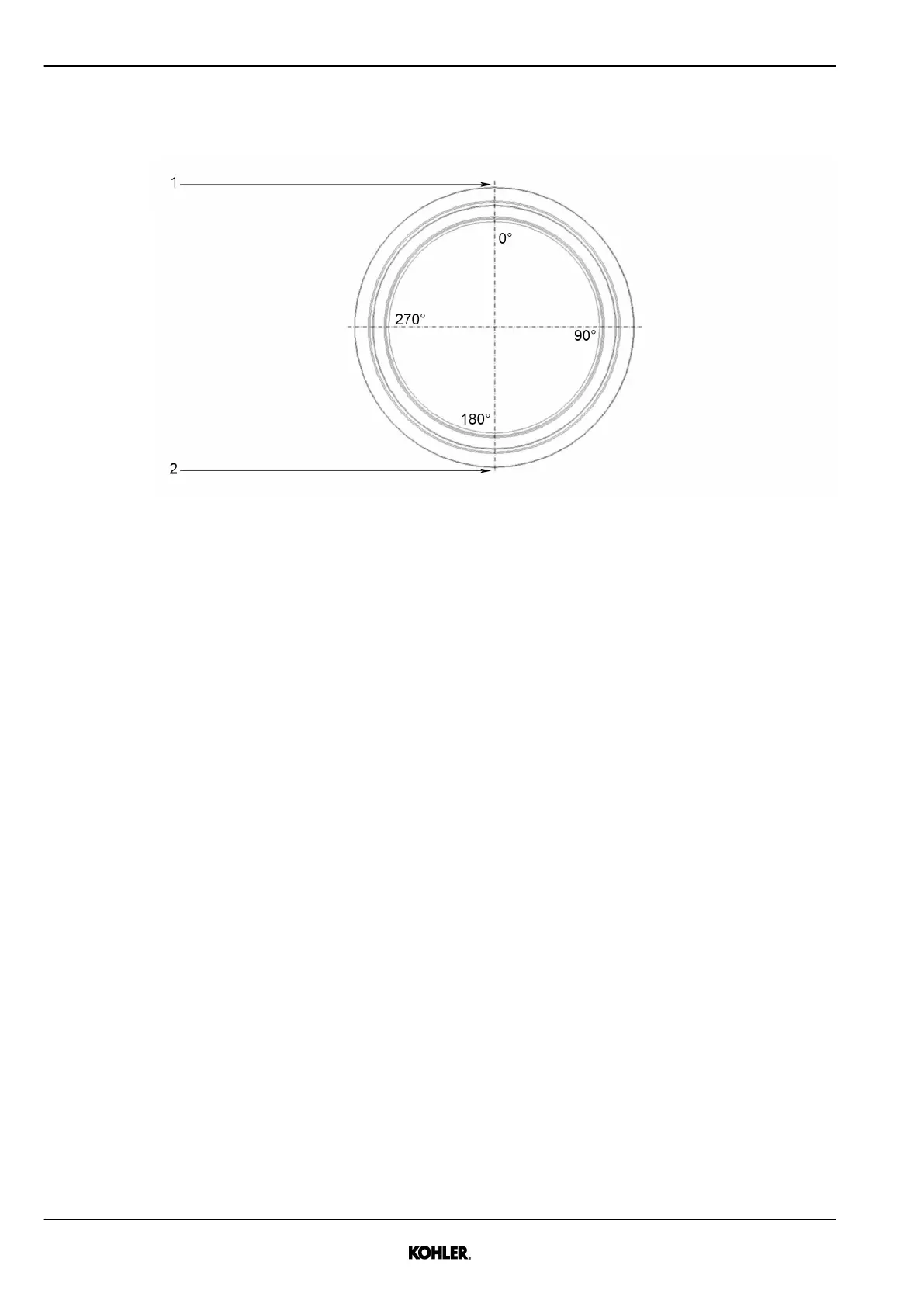

Fig. 104: Task overview
1 Exhaust side 2 Admission side
Endoscopy
u Place endoscope in injector hole on top of cylinder head.
u Turn engine until piston is in BDC (Bottom Dead Center) position.
u Check inside of liner by endoscope.
u Note findings on data sheet.
u Repeat procedure for each cylinder.
98
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
