Operation and Maintenance Manual Maintenance
Daily or monthly maintenance activities

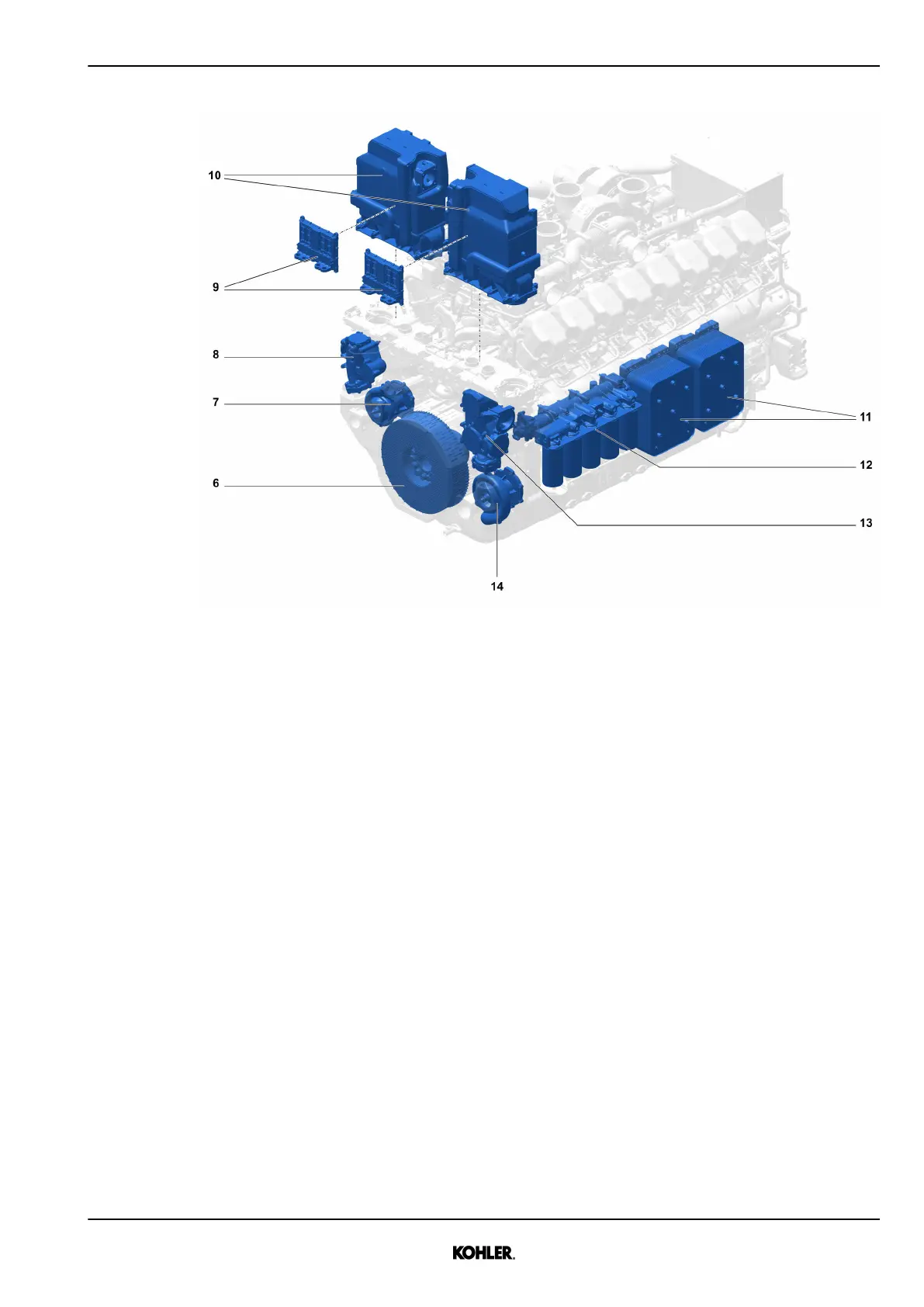

Fig. 47: Visual inspection of engine (2)
6 Damper — Shaft seal 11 Oil coolers
7 Water pump low temperature 12 Spin-on oil filters
8 Thermostat low temperature 13 Thermostat high temperature
9 Engine control unit (ECU) 14 Water pump high temperature
10 Charge air cooler
KD83V16 33521030601_0_1 EN_US
2018-07
© 2018 by Kohler Co. All rights reserved.
93
