Transportation - Storage Operation and Maintenance Manual
Dimensions and weight
3.2 Dimensions and weight
WARNING
Crushing, impact, shearing, part ejection hazards by load movement or lifting devices failure.
Guiding the moving load by hand could cause serious injury or death by crushing or shearing.
Lifting the entire machinery could cause serious injury or death by crushing, impact or parts ejec-
tion.
Falling load could cause serious injury or death by crushing, impact or parts ejection.
Failure of lifting devices could cause serious injury or death by ejection of parts, crushing and
impact.
u It is forbidden to guide the load by hand.
u It is forbidden to lift complete machinery set by use of dedicated lifting points on the engine.
u Use only adapted lifting devices in good shape.
u Check and replace the lifting devices according local regulations.
u Respect a safety distance while lifting and moving the load.
u It is forbidden to pass under the load.
NOTICE
Falling/hanging lifting devices on the engine.
Falling/hanging lifting devices could result in property damages by impacts or tearing.
u Check and replace the lifting devices according local regulations.
u Move the lifting devices near the engine cautiously.

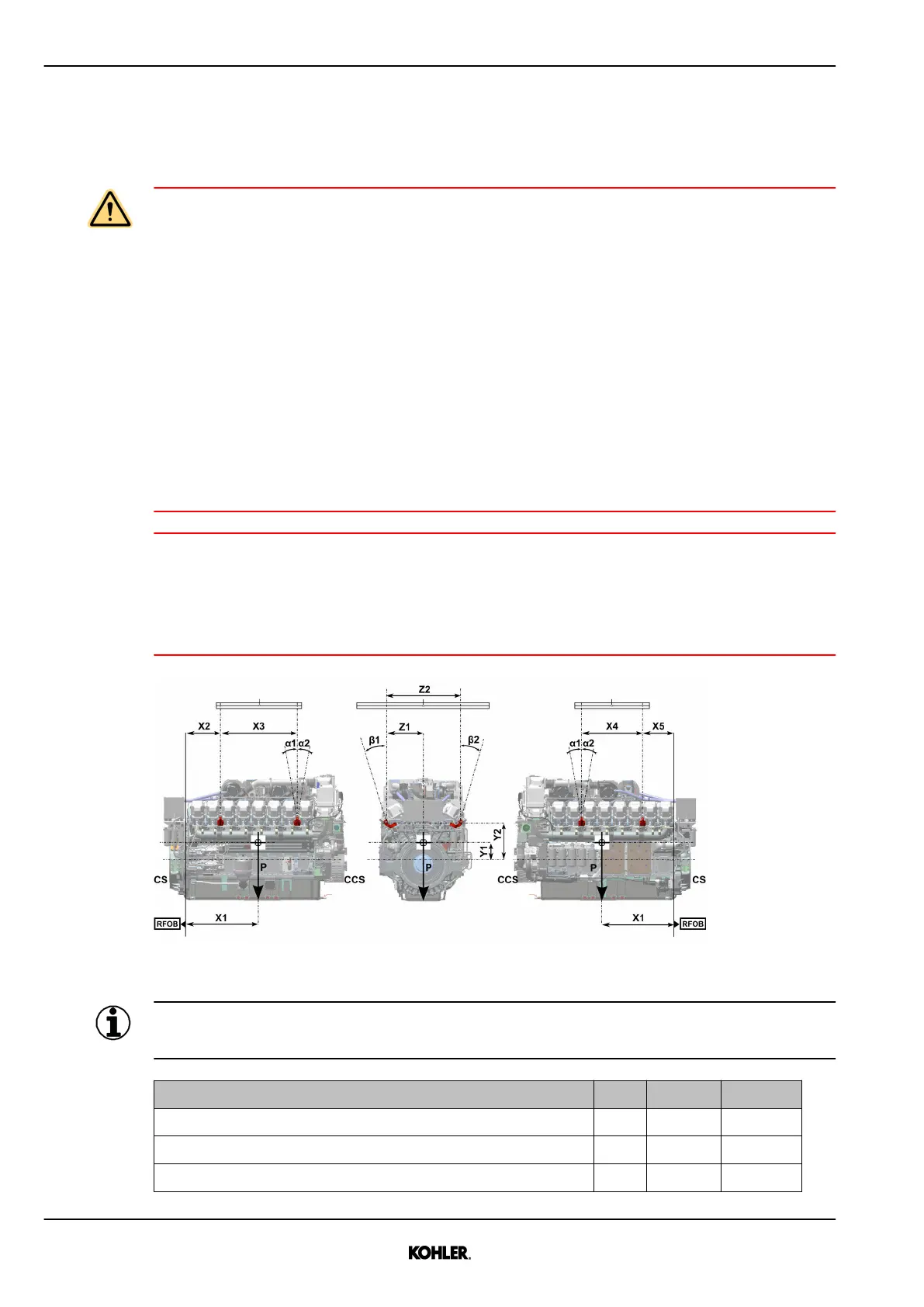

Fig. 40: Dimensions and weight of engine
Information
u RFOB stands for “Rear Face of Block”.
Designation Ref. SI-Value US-Value
From RFOB to center of gravity X1 1199 mm 47.20 inch
Axis to center of gravity Y1 299 mm 11,77 inch
From center of gravity to lifting point Z1 645 mm 25.39 inch
54
© 2018 by Kohler Co. All rights reserved.
KD83V16 33521030601_0_1 EN_US
2018-07
