Daily or monthly maintenance activities

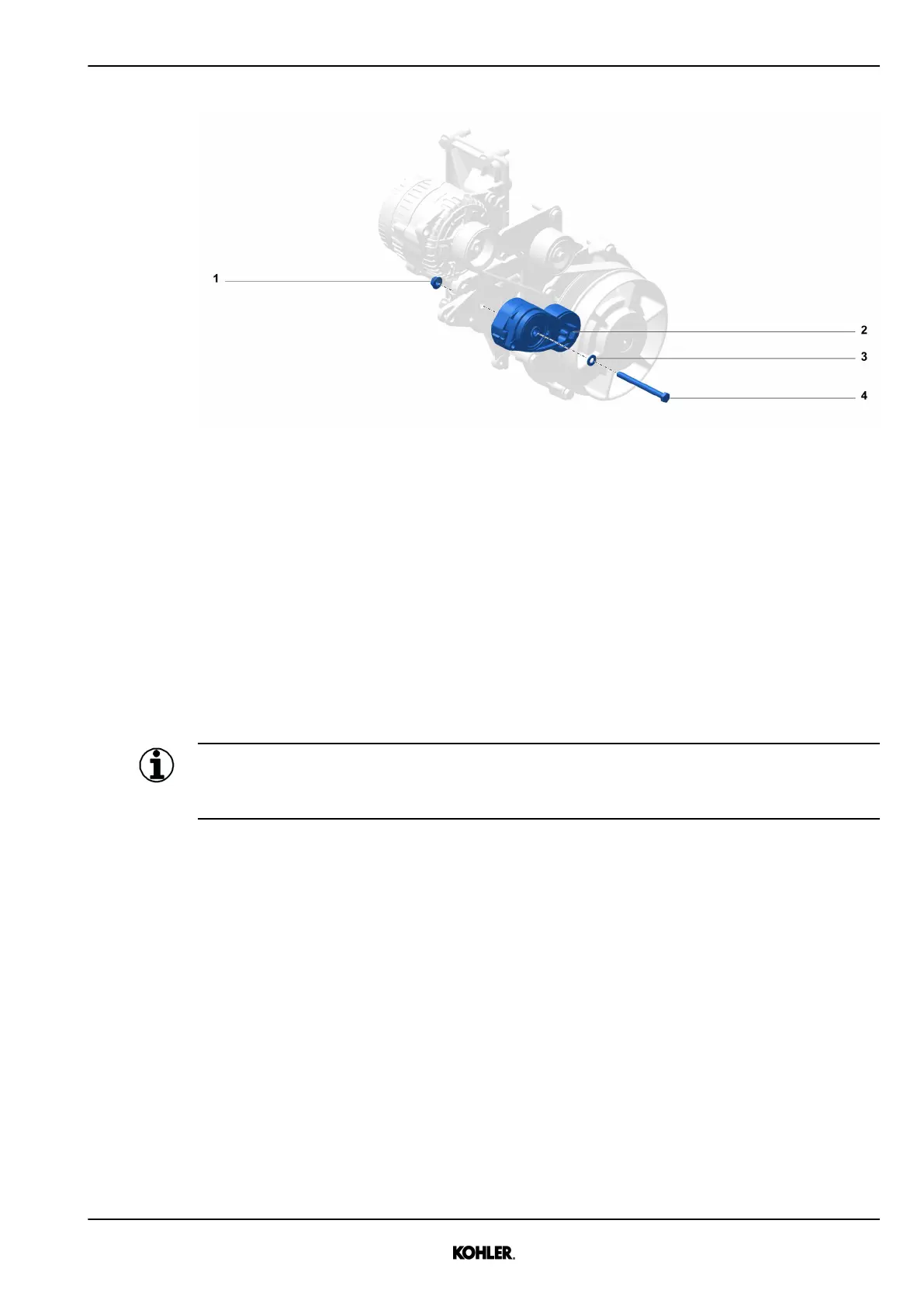

Fig. 55: Replacing tensioning device
1 Nut (M10) 3 Washer
2 Tensioning device 4 Screw (M10)
Tensioning device removal
u Remove screw (M10) 4 with washer 3 and nut (M10) 1.
u Remove tensioning device 2.
Tensioning device installation
u Mount tensioning device with screw (M10) 4, washer 2 and nut (M10) 1.
u Tighten screw (M10) 4 and nut (M10) 1 to 40 Nm.
Information
Mount the battery charging alternator cover in reverse sequence. (For more information see:
5.6.3 Removal of the battery charging alternator cover, page 95) .
5.6.7 Test run — SL008
See the generator set manual for more details.
