INFORMATION ABOUT MAINTENANCE
EN

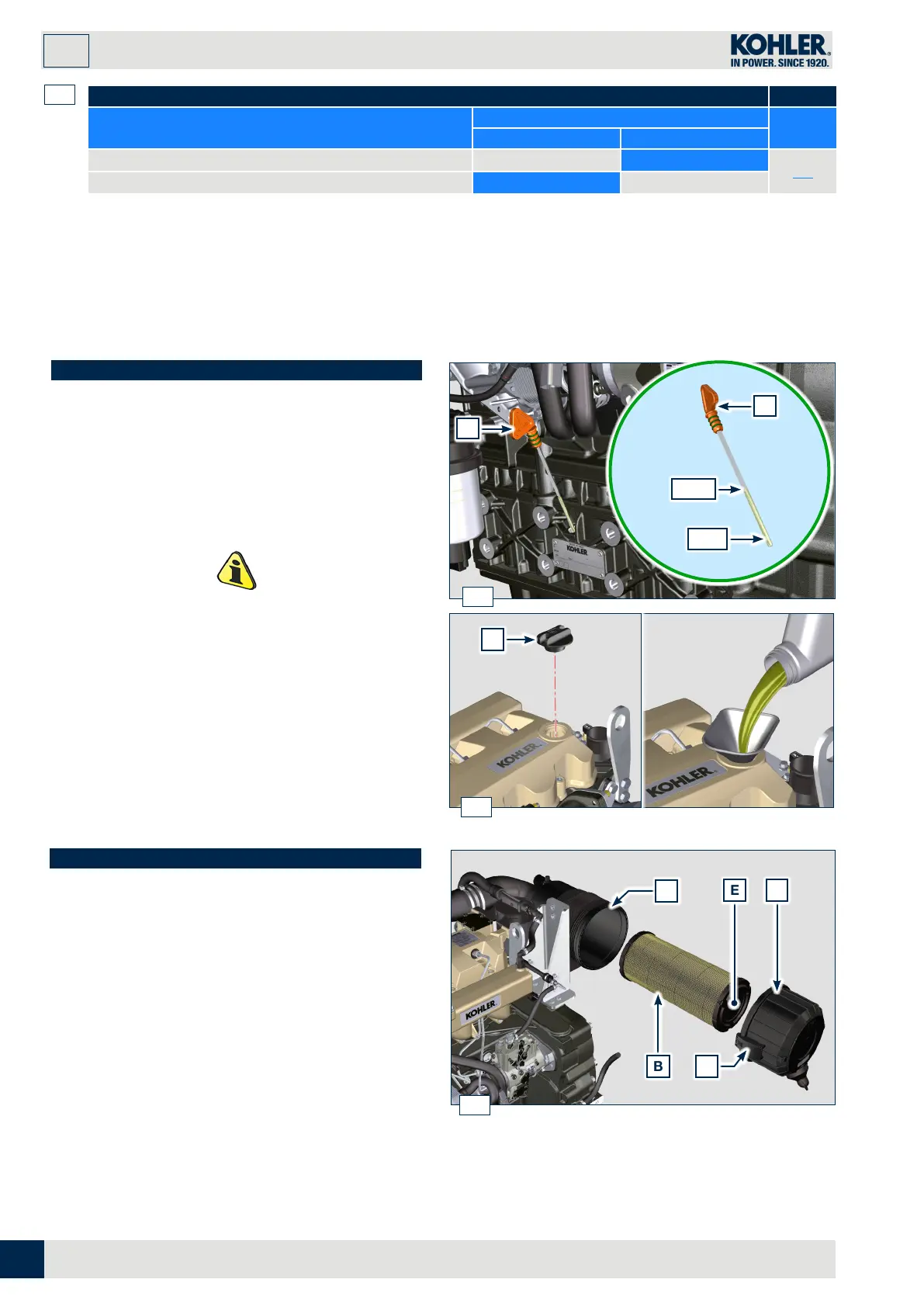

5.3 Oil level check
1. Loosen the oil filler cap A. Remove the oil dipstick B and
check that the level is up to MAX.
2. Pour in recommended oil until reaching the MAX level
mark.
3. Reinstall the oil dipstick B completely.
4. Re-tighten the cap A (Fig. 5.2).
Important
• Do not use the engine with the oil level below the minimum.
5.4 Air filter check
NOTE: Components not necessarily supplied by
KOHLER.
1. Release the two clasps F of the cover A.
2. Remove the cartridge B.
3. Clean the inside components A and D with a damp cloth.
4. Do not use compressed air, repeatedly tap the front side
E on a flat surface.
5. Reinstall:
- cartridge B.
- the cover A checking the right tightness of clasps F.
FUEL FILTER AND PREFILTER CARTRIDGE REPLACEMENT
ENGINE VERSION
PERIOD (HOURS)
PAR.
250 500
KDI Mechanical Injection Tier 3 – Stage IIIA
(1)
6.3
KDI Mechanical Injection Uncertified Engines
(1)
1. In case of low use: 12 months.
2. The period of time that must elapse before checking
the filter element depends on the environment in which
the engine operates. The air filter must be cleaned and
replaced more frequently under very dusty conditions.
3. In case of low use: 36 months.
6. Contact authorized KOHLER workshops.
7. The replacement interval is only an indication, it strongly
depends from environmental condition and hose status
detected during regular visual inspection.
8. The first check must be done after 10 hours.
9. Test the coolant condition annually with coolant test
strips.
10. It is recommended to have SCA (Supplemental Coolant
Additives) added at the first maintenance interval.
11. Read Cap. 2.5, "KDI Mechanical Injection Uncertified
Engines (no EGR Engines)"
ED0053030120
