KD 702_1003_1404 Workshop Manual_cod. ED0053029340_1° ed_
3
Technical information
KDW 1404
A
B
C
D
515.5 (20.30)
351.5 (13.84)
E
F
269.2 (10.60)
242.5 (9.55)
I
L
204 (8.03)
596 (23.46)
G
H
O
P
186 (7.32)
533 (20.98)
169.5 (6.67)
484.5 (19.07)
M
N
593 (23.35)
150 (5.90)
359 (14.13)
165 (6.50)

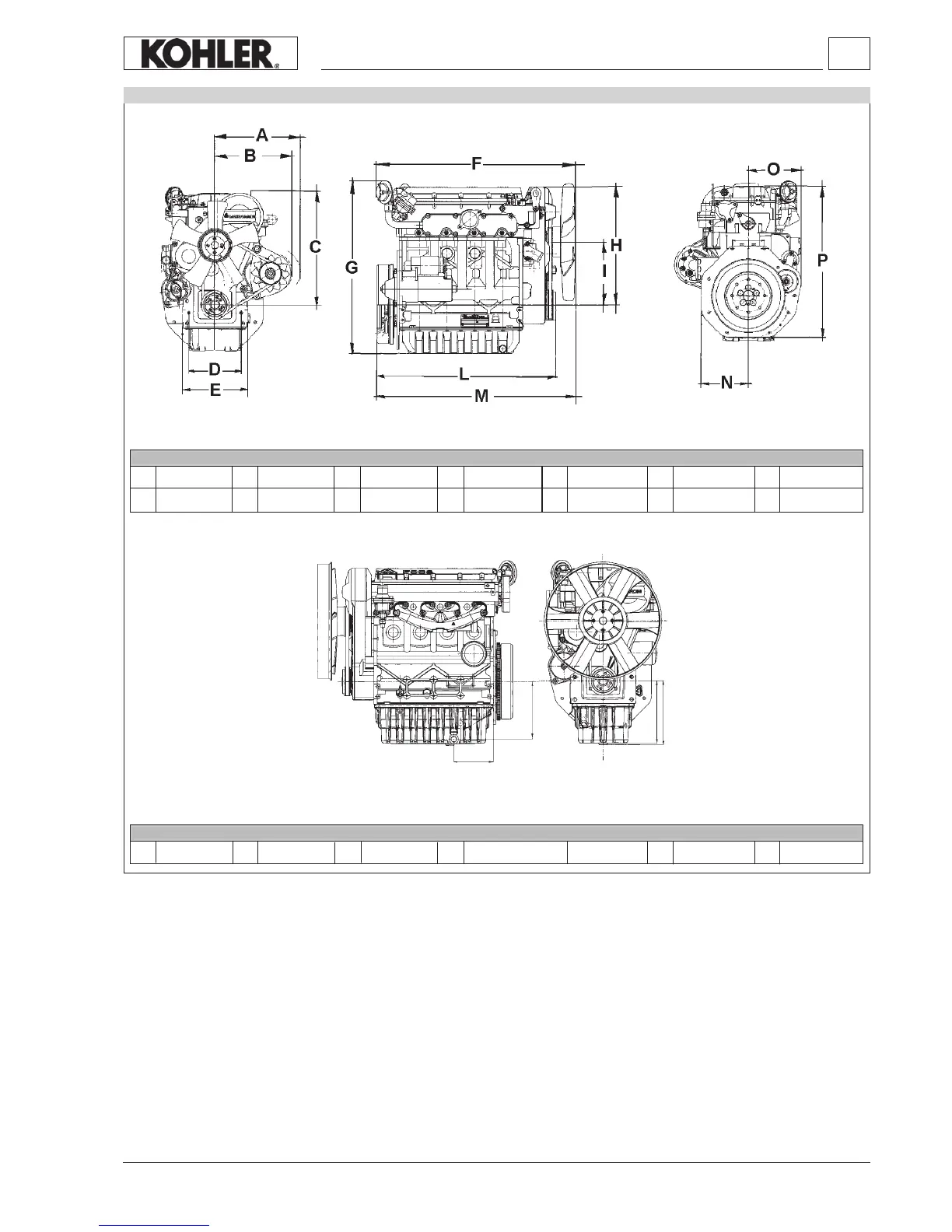

DIMENSIONS mm (in.) - DIMENSIONI mm - MESURES mm - EINBAUMAßE mm - DIMENSIONE mm - DIMEN0ÇÕES (mm)
A
B
C
122.25 (4.81)
192.5 (7.58)
178.5 (7.03)
D
197.85 (7.79)
DIMENSIONS mm (in.) - DIMENSIONI mm - MESURES mm - EINBAUMAßE mm - DIMENSIONE mm - DIMEN0ÇÕES (mm)
COPPA OLIO STANDARD IN LAMIERA - CARTER D’HUILE EN TÔLE STANDARD - SHEET METAL STANDARD OIL SUMP -
STANDARD BLECHÖLWANNE - CÁRTER DE ACEITE STANDARD EN PLANCHA - CÁRTER DE ÓLEO STANDARD EM CHAPA
COPPA OLIO MAGGIORATA IN ALLUMINIO - CARTER D’HUILE SURDIMENSIONNÉ EN ALUMINIUM - OVERSIZE ALUMINIUM OIL SUMP - VERGRÖSSER-
TER ALUMINIUMÖLWANNE - CÁRTER DE ACEITE SOBREDIMENSIONADO EN ALUMINIO - CÁRTER DE ÓLEO AUMENTADO - EM ALUMINIO
