ATTACHING THE DUCT CONNECTORS TO THE EXHAUST HOSE

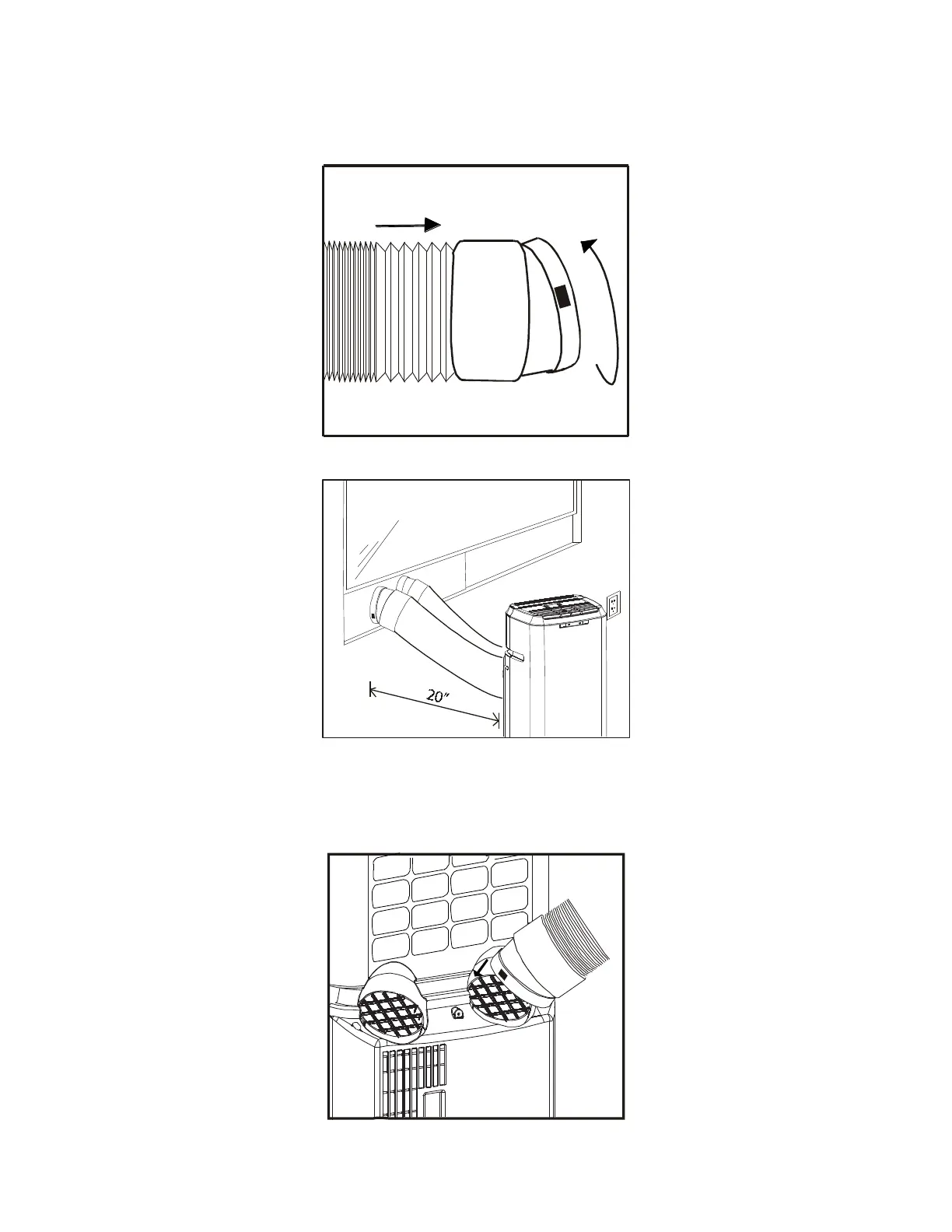

5. Attach the connectors to the hose.
A. Extend the ends of the exhaust hose
B. Thread the duct connector on by turning it clockwise until it stops.
6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall.
CONNECTING THE DUCT CONNECTOR TO THE UNIT
7. Align the slots on the duct connector to the tabs and snap the duct connector into the back of the unit.
In order to use the misting drain feature you will need to attach the duct connector with an opening for
the water line to the exhaust outlet on the unit.
