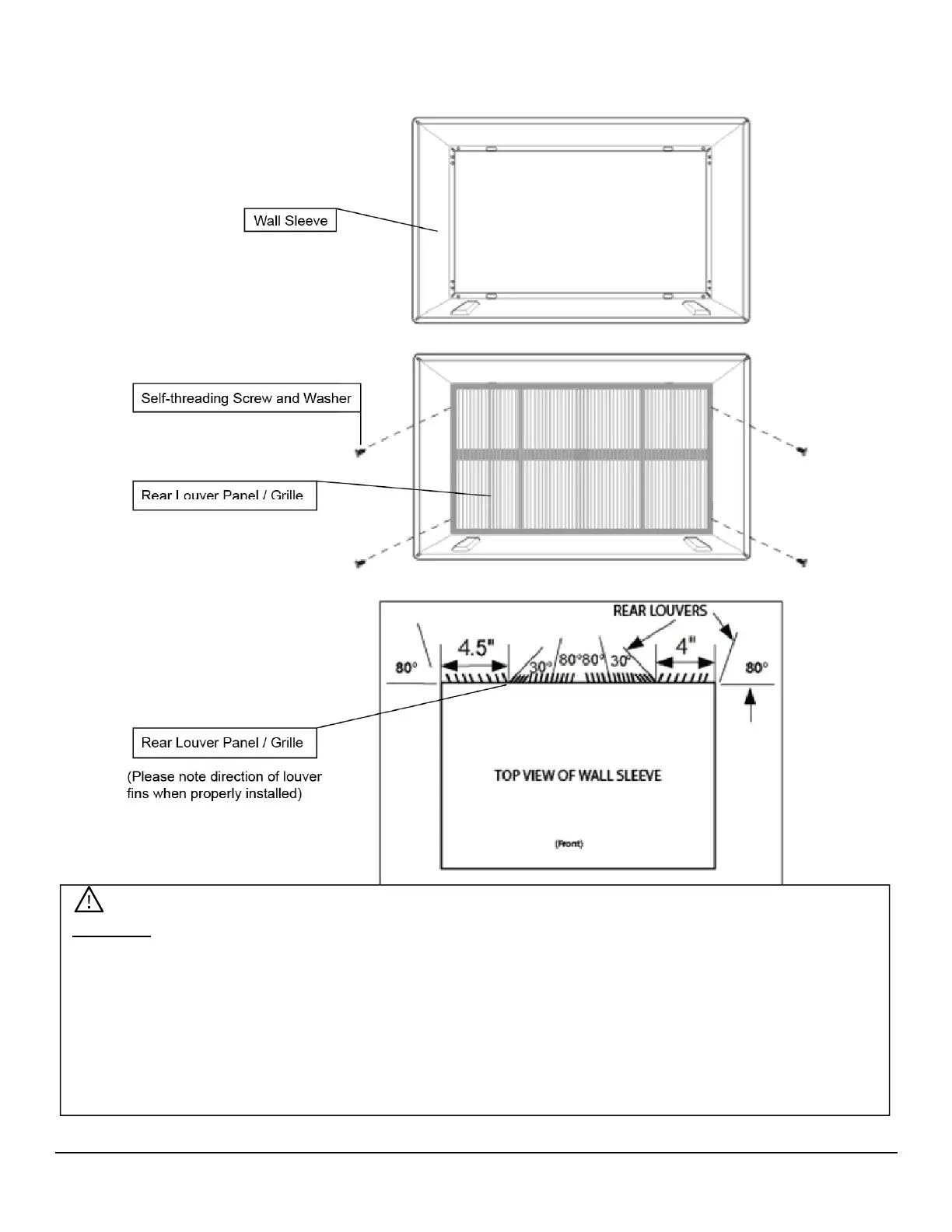

Rear Louver Panel / Grille Installation into Wall Sleeve Diagram
Important: Please ensure that the Rear Louver Panel / Grille is installed correctly to ensure
proper airflow and performance. Please note the direction and alignment of the louvered fins.
Also, please note that when aligned as instructed above, the holes in the louver panel / grille will
properly line up to the holes in the Koldfront wall sleeve.
If you are unable to secure the Rear Panel Louver / Grille to the wall sleeve, it may be attached
directly to the rear of the air conditioning unit. Please see the “Alternate and Supplemental
Installation Instructions” section on page 11.
