KOLDWAVE 2AK (AIRMASTER)
DUCT DESIGN
Condenser Duct
Should a longer 10" diameter duct be needed on the
condenser discharge, 10 foot flexible ducts may be
coupled together up to a maximum equivalent length
of 60 feet (allow 6 feet for every 90° bend).
1. 1/4 Turn Pawl
Latch Fasteners
2. Mounting Plate
3. Snozzle Caps
4. Insulation
5. Snozzle Duct
4
2
1
3
5

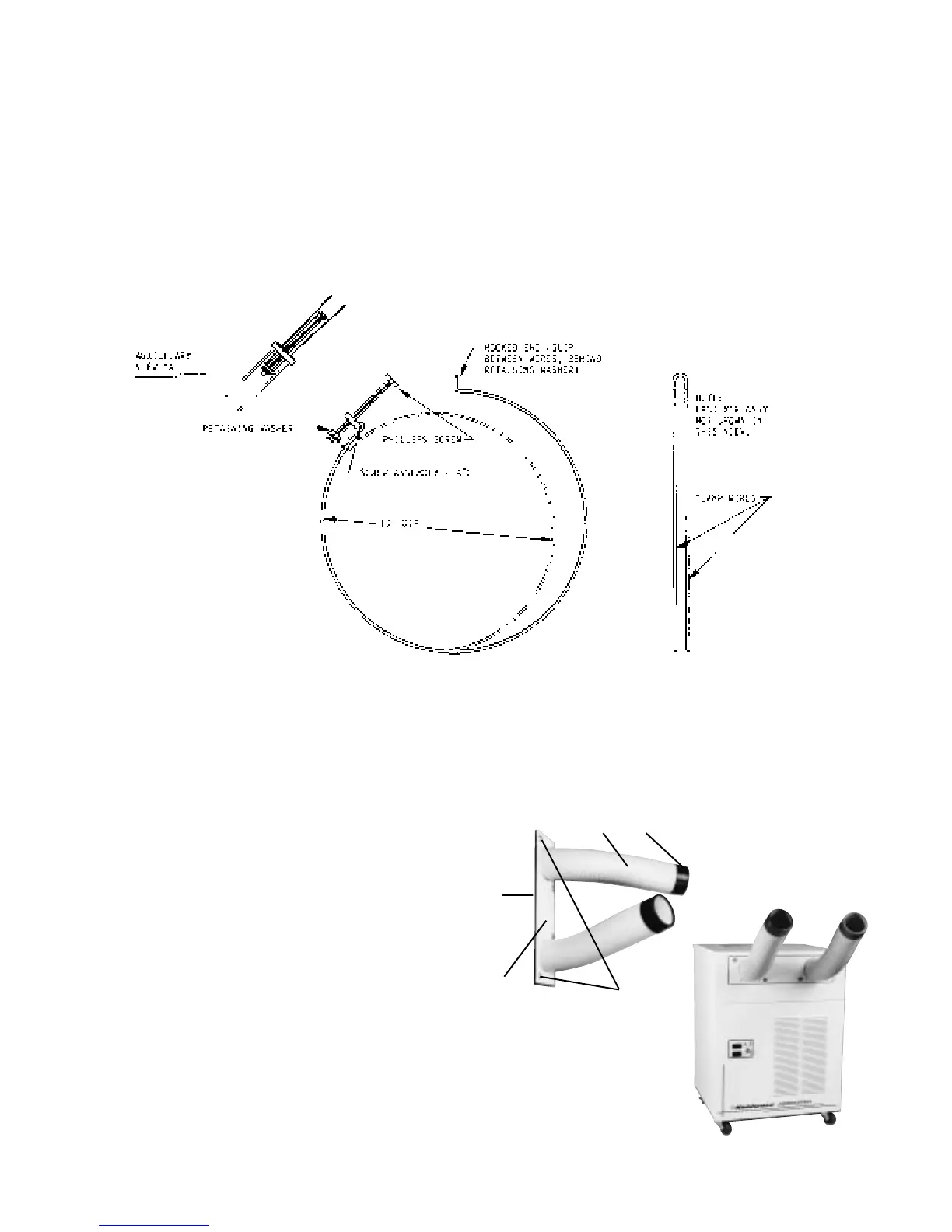

Duct Clamps
Two 10" diameter wire duct clamps are used to secure
the condenser air exhaust duct to the lay-in ceiling
panel/collar assembly and the Koldwave Airmaster
exhaust duct collar.
DISCHARGE AIR SNOZZLE
®
KIT ASSEMBLY
(OPTIONAL) SA040-D-028
A 20 gauge painted steel air discharge snozzle
®
mounting plate assembly can be furnished as an
optional item. Its purpose is to accommodate various
spot cooling applications, where air can be aimed and
concentrated on the object to be cooled. The plate is
designed with two 4" diameter, 16" compressed and
22" long extended flexible air duct snozzles
®
. The use
of the snozzles
®
will derate the capacity by
approximately 13%. The snozzle
®
plate is mounted
over the evaporator air discharge opening by 1/4 turn
Pawl Latch fasteners for each removal. It is secured in
place by tightening the four fasteners provided with the
plate assembly. It can be removed easily by turning
the fastener on quarter turn counter-clockwise.
10" Diameter Duct Clamp SA019-A-067
