KOLDWAVE 2AK (AIRMASTER)
2AK1411M AIRMASTER PRODUCT DATA AND SPECIFICATIONS
COOLING CAPACITY (BTU/HR) & EER
Evaporator Fan Speed High Low
Conditions Total Sensible EER* Total Sensible EER*
67°F DB/57°F WB (54% RH) 10,714 7736 9.44 9409 6216 8.86
72°F DB/60°F WB (50% RH) 11,200 8328 9.47 9933 6586 8.92
75°F DB/62°F WB (48% RH) 11,534 8538 9.49 10,238 6795 8.93
80°F DB/67°F WB (52% RH) 12,606 8375 9.92 11,262 6757 9.32
95°F DB/75°F WB (40% RH) 14,054 10,248 9.63 12,783 8069 9.20
95°F DB/83°F WB (61% RH) 14,917 6986 10.07 14,054 5902 9.88
104°F DB/80°F WB (36% RH)** 14,668 11,203 9.21 13,626 8725 8.95
ELECTRICAL DATA***
Voltage/Phase/Hertz 115/1/60
Amperage 13.8
Fuse Size (Amps) 20
Watts 1563
Inrush Current (Amps) 79.7
COMPRESSOR (ROTARY)
Horsepower 1.0
Watts 1080
RLA 9.7
LRA 54
RPM 3400
Refrigerant R-22
BLOWER (CONDENSER)
Speed High Low
Amps 1.4 0.8
Watts 134 89
RPM 1595 1053
CFM @ 0.0" H2O E.S.P. 400 265
BLOWER (CONDENSER)
Speed High Low
Amps 2.3 1.6
Watts 250 164
RPM 1090 780
CFM @ 0.0 E.S.P. 730 515
CFM @ 0.25 E.S.P. 610 450
CONDENSATE PUMP (OPTIONAL)
Motor HP .0125
Lift (Ft. of H2O) 11.0
Amps .48
Watts 50
EVAPORATOR
Number of Rows 3
Coil Face Area (Ft.2) 1.5
CONDENSER
Number of Rows 3
Coil Face Area (Ft.2) 2.44
EVAPORATOR AIR FILTER SIZE (INCHES)
Width 15.875
Height 18
Thickness 0.5
CONDENSER AIR FILTER SIZE (INCHES)
Width 19.25
Height 16.5
Thickness 0.5

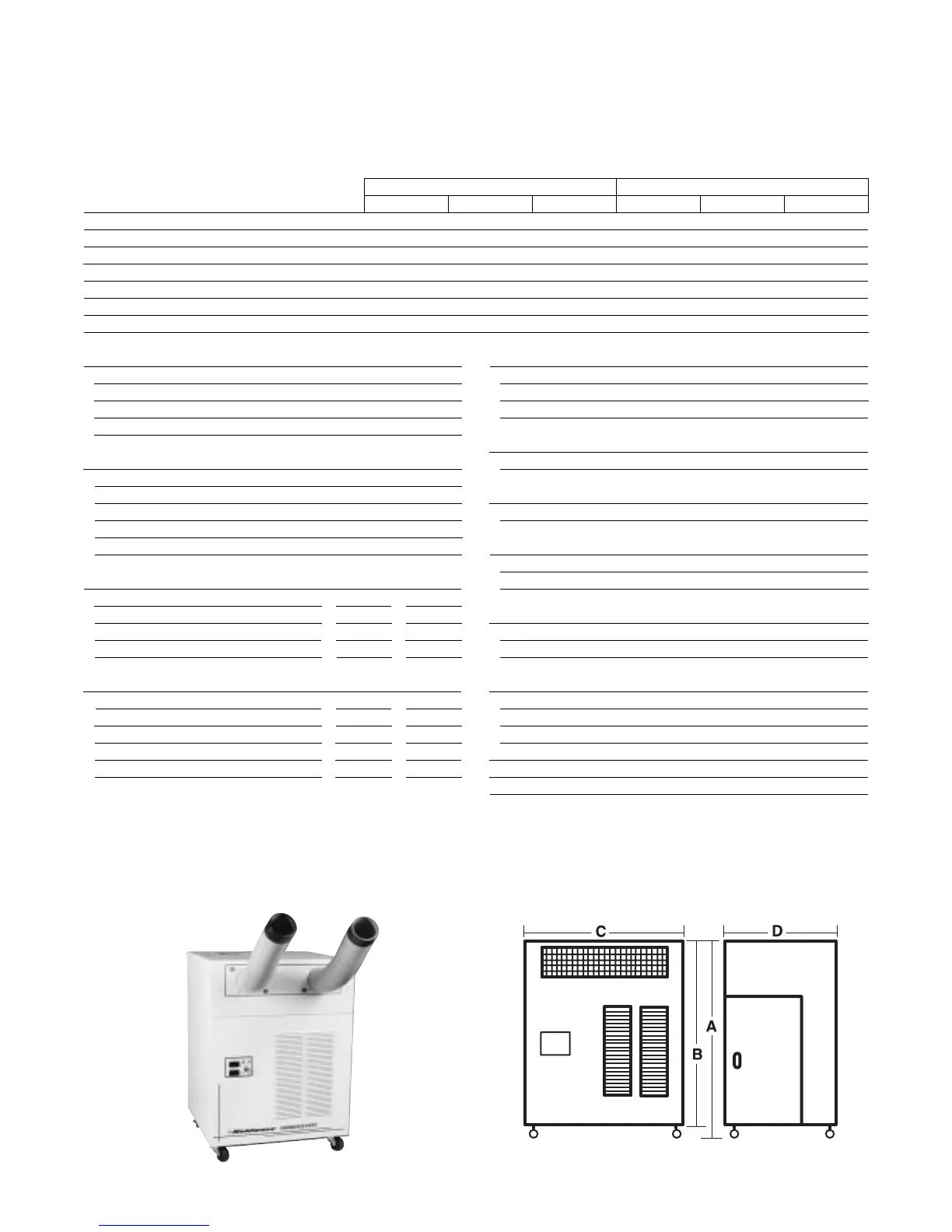

UNIT DIMENSIONS (INCHES)
(A) Height with Casters 34.25
(B) Height without Casters 31.125
(C) Length 25
(D) Depth 24
NET UNIT WEIGHT (LBS.) 185
SHIPPING WEIGHT (LBS.) 210
Time delay fuses and circuit breakers are recommended.
*EER determined with condenser discharge air ducted into another area on high fan speed.
**Maximum operating condition.
***Electrical ratings per U.L Standard 484 at 95°F DB/75° WB on high speed.
