7

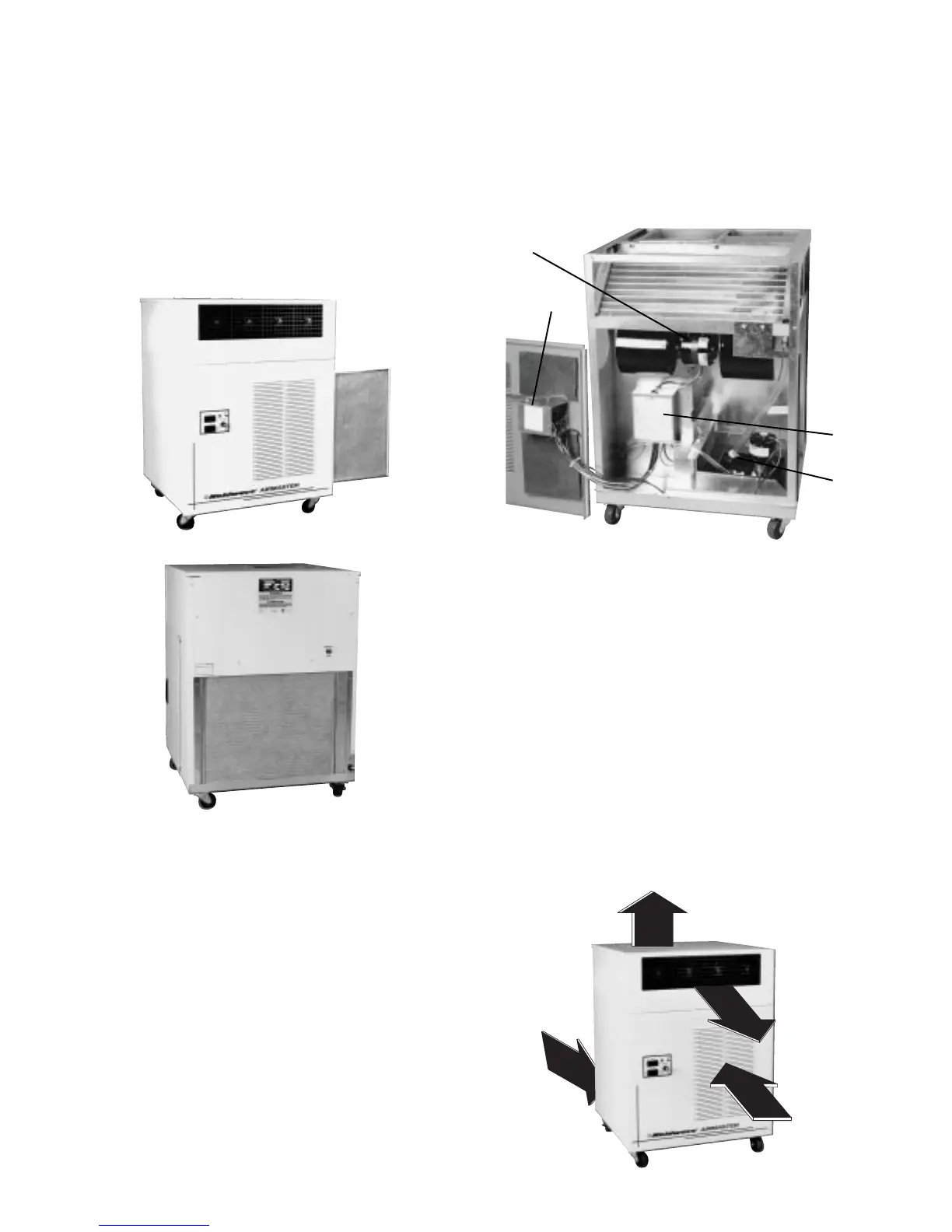

KOLDWAVE 2AK (AIRMASTER)
1. Evaporator Fan Motor
2. Control Enclosure
3. Terminal Block Enclosure
4. Condensate Pump Assembly (Optional)
1
2
3
4
AIR FILTERS
The Koldwave Airmaster employs two, 1/2" thick,
washable aluminum mesh air filters, located behind
the louvered front (evaporator) panel and beneath the
back (condenser) panel. The evaporator filter can be
easily removed and cleaned; just pull the filter end cap
at the bottom of filter and slide out. The condenser
filter is removed by lifting the tab at bottom of filter,
then pulling toward you and down.
GENERAL AIRFLOW PATTERNS
Condenser air is drawn in through the lower rear
section of the unit and passes through the condenser
coil and extracts heat. The hot air is blown out the
upper exhaust air opening. Evaporator air is taken
through the lower, front, louvered panel and is cooled
by the evaporator coil. It’s then blown in through four,
adjustable, four-way grilles, enabling a variety of
airflow possibilities. Both condenser and evaporative
air inlets are provided with filters.
ELECTRICAL
Electrical control is concentrated in an enclosed area
behind the control panel. Electrical interconnection is
achieved via a multi-position terminal strip located in a
junction box fastened to the bulkhead wall.
