15
KOLDWAVE 2AK (AIRMASTER)
ROOM AIR CONDITIONER
Koldwave Airmaster may also be used as a room air
conditioner to cool the entire enclosed space it is
placed in. In this application, hot exhaust air venting
and condenser air intake ducting are definitely needed.
This can be accomplished by employing the “Flexible
Duct Kit Assembly” (optional) and the “Condenser
Return Air Plenum” (optional) as specified in the

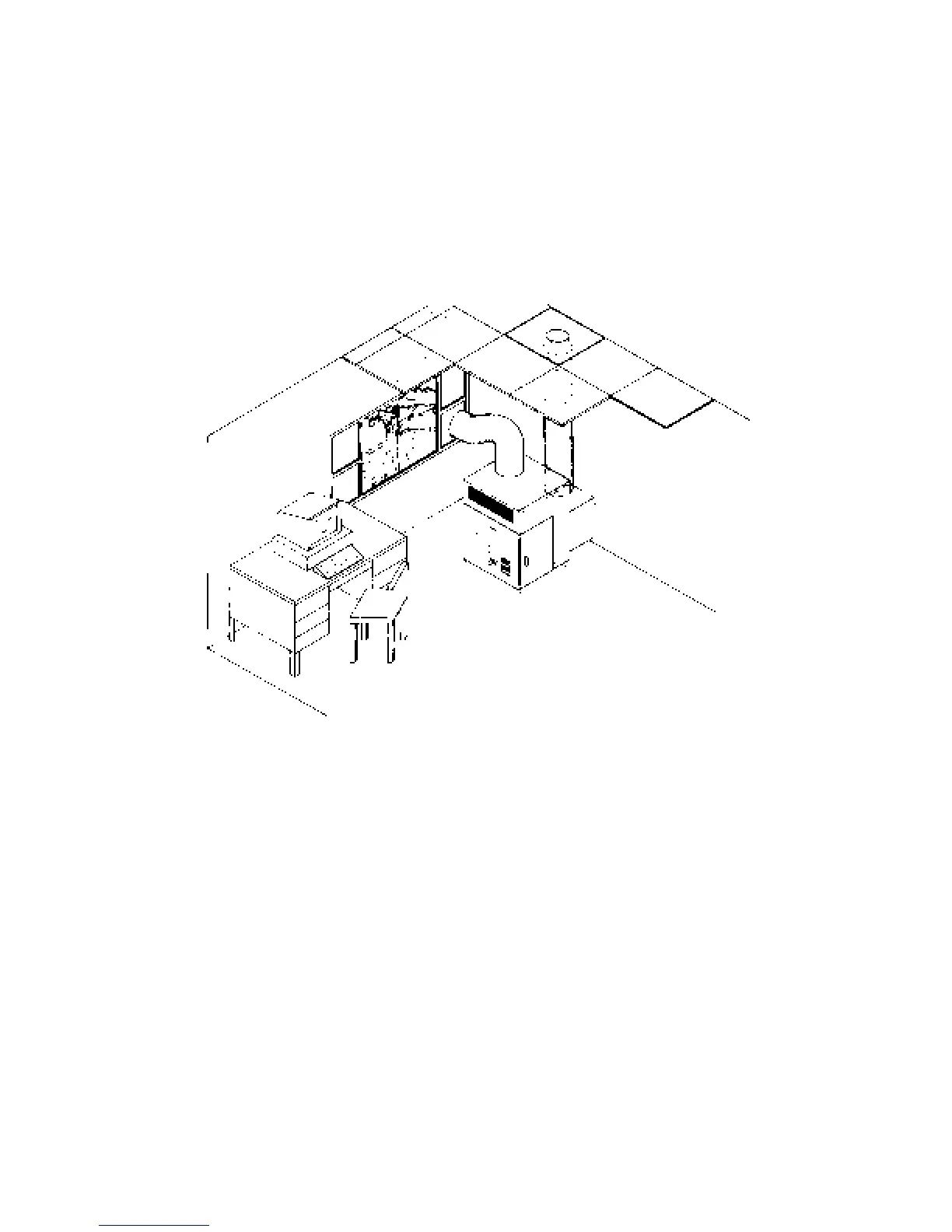

“Optional Features” section. See figure below for
orientation of flexible ducts.
The condenser coil is cooled by the air drawn from the
false ceiling. The air passes through the hot condenser
coil, gets heated up, then discharges to an area
outside the room being cooled (outdoors).
INSTALLATION INSTRUCTIONS
Before installing: Check the air conditioner/spot cooler
for any shipping damage. Air conditioners are
thoroughly inspected at the factory and carefully
packed. If any damage is evident, file a claim with the
delivering carrier immediately.
Electrical requirements: Check the data plate on the
unit to make certain that the proper power is available.
Refer to “Specifications” section for voltage, fuse
requirements and proper NEMA receptacles. Check for
proper wall outlet as described in “Standard Features”
section. Operating the unit on improper voltages will
void the warranty.
CAUTION: An extension cord can be used provided
it is rated at least 20 amps @ 115 volts with
grounding-type attachment plug and grounding type
connector (load fitting).
Koldwave Airmaster portable air conditioner/spot
cooler requires minimal installation. It merely plugs
into a NEMA 5-20R receptacle for 2AK1411M or 5-15R
for 2AK1011 and immediately begins to cool. The
entire system is built into one compact unit which can
be moved and installed easily.
