KOLDWAVE 2AK (AIRMASTER)
2AK1011 AIRMASTER PRODUCT DATA AND SPECIFICATIONS
COOLING CAPACITY (BTU/HR) & EER
Evaporator Fan Speed High Low
Conditions Total Sensible EER* Total Sensible EER*
67°F DB/57°F WB (54% RH) 9148 6653 9.71 8261 5568 9.31
72°F DB/60°F WB (50% RH) 9627 7113 9.83 8586 5906 9.32
75°F DB/62°F WB (48% RH) 9903 7287 9.86 8867 6103 9.38
80°F DB/67°F WB (52% RH) 10,613 7223 10.13 9749 6051 9.82
95°F DB/75°F WB (40% RH) 11,970 8783 10.00 11,161 7314 9.81
95°F DB/83°F WB (61% RH) 12,985 6021 10.79 11,973 5186 10.42
104°F DB/80°F WB (36% RH)** 12,603 9399 9.67 11,600 7917 9.35
ELECTRICAL DATA***
Voltage/Phase/Hertz 115/1/60
Amperage 10.5
Fuse Size (Amps) 15
Watts 1196
Inrush Current (Amps) 69.7
COMPRESSOR (ROTARY)
Horsepower 0.75
Watts 845
RLA 7.4
LRA 44
RPM 3400
Refrigerant R-22
BLOWER (CONDENSER)
Speed High Low
Amps 1.3 0.8
Watts 139 87
RPM 1570 1115
CFM @ 0.0" H2O E.S.P. 440 300
BLOWER (CONDENSER)
Speed High Low
Amps 2.3 1.6
Watts 250 164
RPM 1090 780
CFM @ 0.0 E.S.P. 730 515
CFM @ 0.25 E.S.P. 610 450
CONDENSATE PUMP (OPTIONAL)
Motor HP .0125
Lift (Ft. of H2O) 11.0
Amps .48
Watts 50
EVAPORATOR
Number of Rows 2
Coil Face Area (Ft.2) 1.5
CONDENSER
Number of Rows 3
Coil Face Area (Ft.2) 2.44
EVAPORATOR AIR FILTER SIZE (INCHES)
Width 15.125
Height 18
Thickness 0.5
CONDENSER AIR FILTER SIZE (INCHES)
Width 19.25
Height 16.5
Thickness 0.5

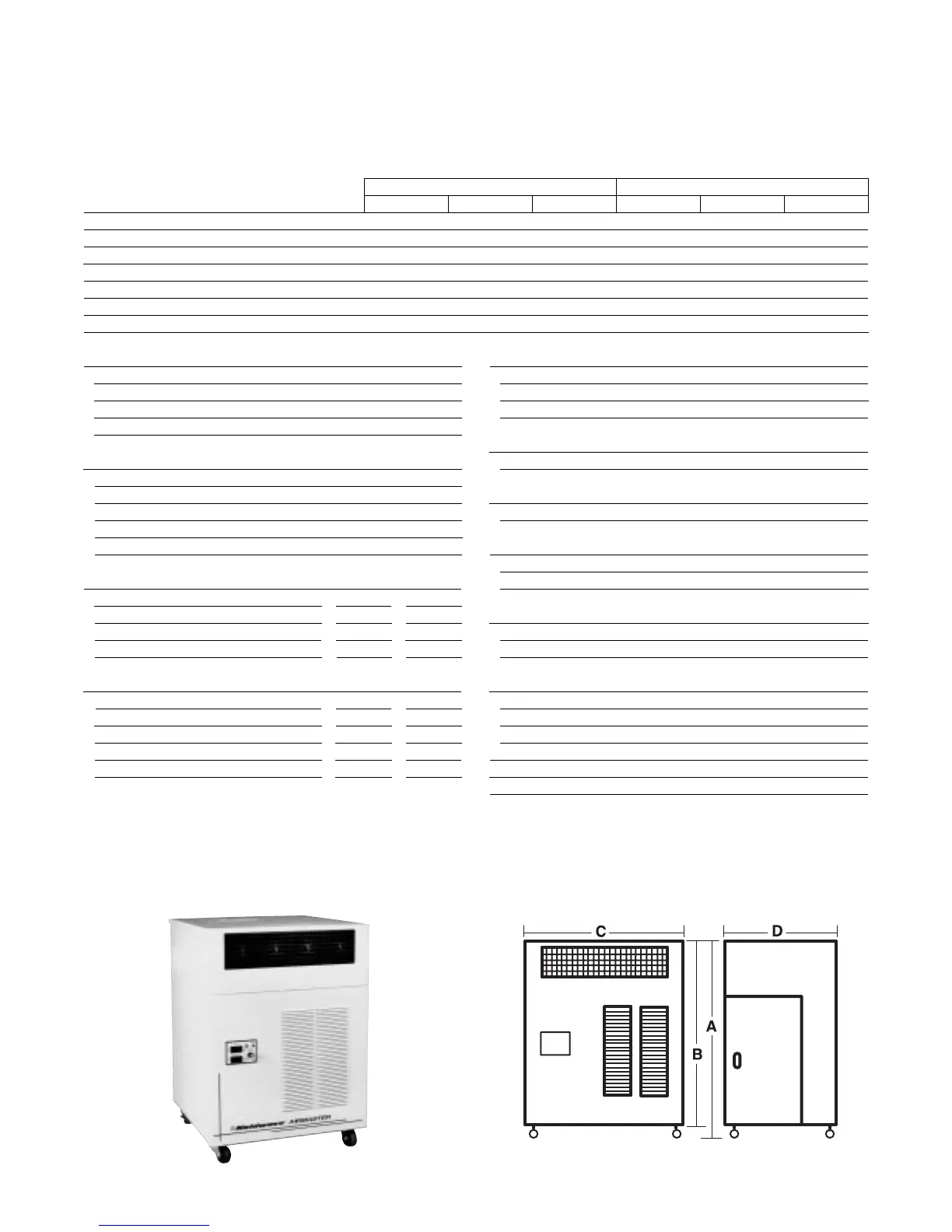

UNIT DIMENSIONS (INCHES)
(A) Height with Casters 34.25
(B) Height without Casters 31.125
(C) Length 25
(D) Depth 24
NET UNIT WEIGHT (LBS.) 182
SHIPPING WEIGHT (LBS.) 207
Time delay fuses and circuit breakers are recommended.
*EER determined with condenser discharge air ducted into another area on high fan speed.
**Maximum operating condition.
***Electrical ratings per U.L Standard 484 at 95°F DB/75° WB on high speed.
