Koldwave 2AK1411M - Evaporator Fan Motor; Condensate Pump Motor (optional); Tank Full and Cooling Mode Pilot Lights

20
KOLDWAVE 2AK (AIRMASTER)
Evaporator Fan Motor
Resistance across white and black
22.5 OHMS ±10% at 25°C
Resistance across red and black
26.2 OHMS ± 10% at 25°C
Resistance across white and red
48.7 OHMS ± 10% at 25°C
When the resistance is not within these stated values,
replace the fan motor.
Condensate Pump Motor (optional)
Measure resistance across the terminals of the pump
motor. 31.0 OHMS ± 8% at 25°C. when the resistance
is not within these stated values, replace the pump
motor.
Tank Full and Cooling Mode Pilot Lights

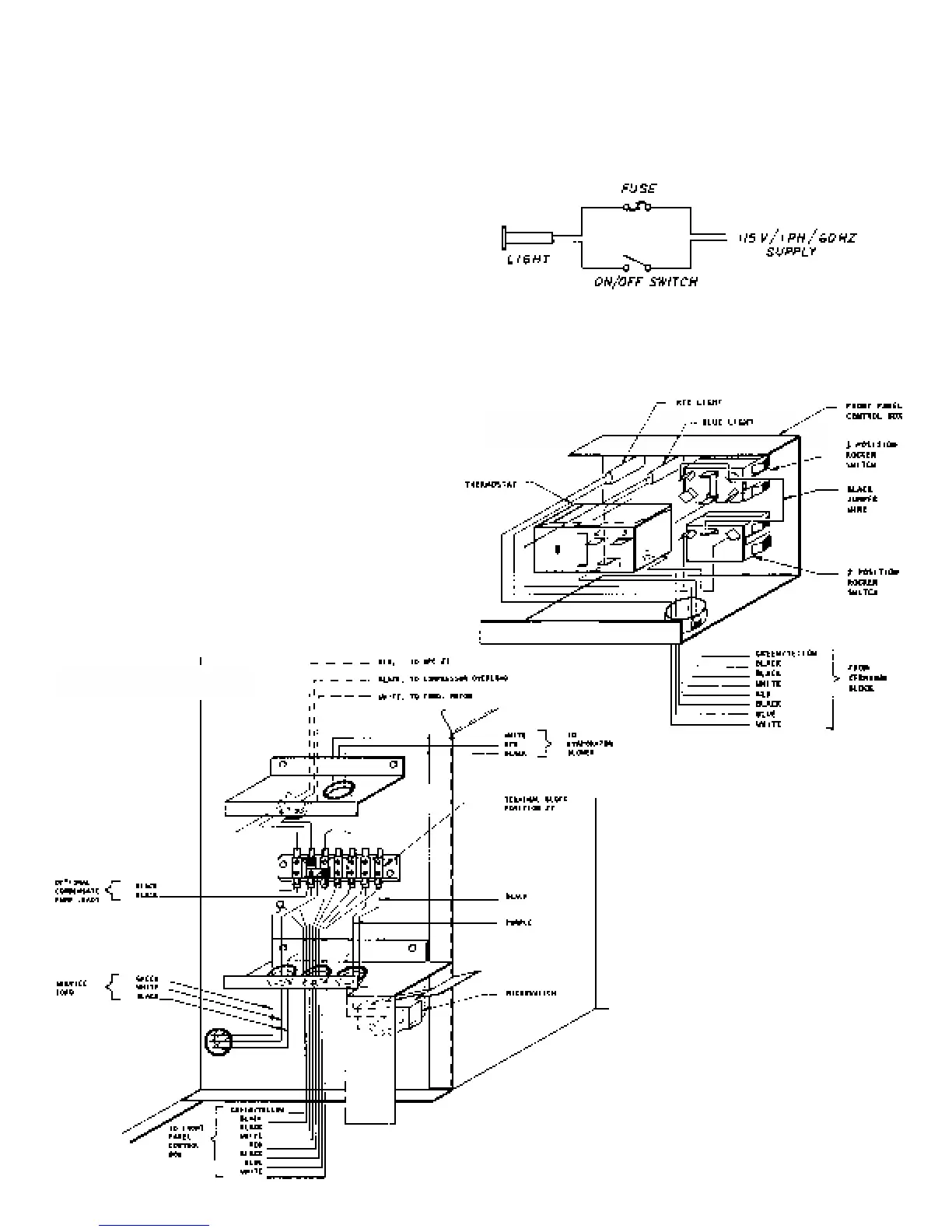

Make a test circuit as shown in figure below. If the light
fails to illuminate, replace it.
CONTROL
ENCLOSURE
TERMINAL BLOCK
ENCLOSURE
