Vers. 270921 Page 26

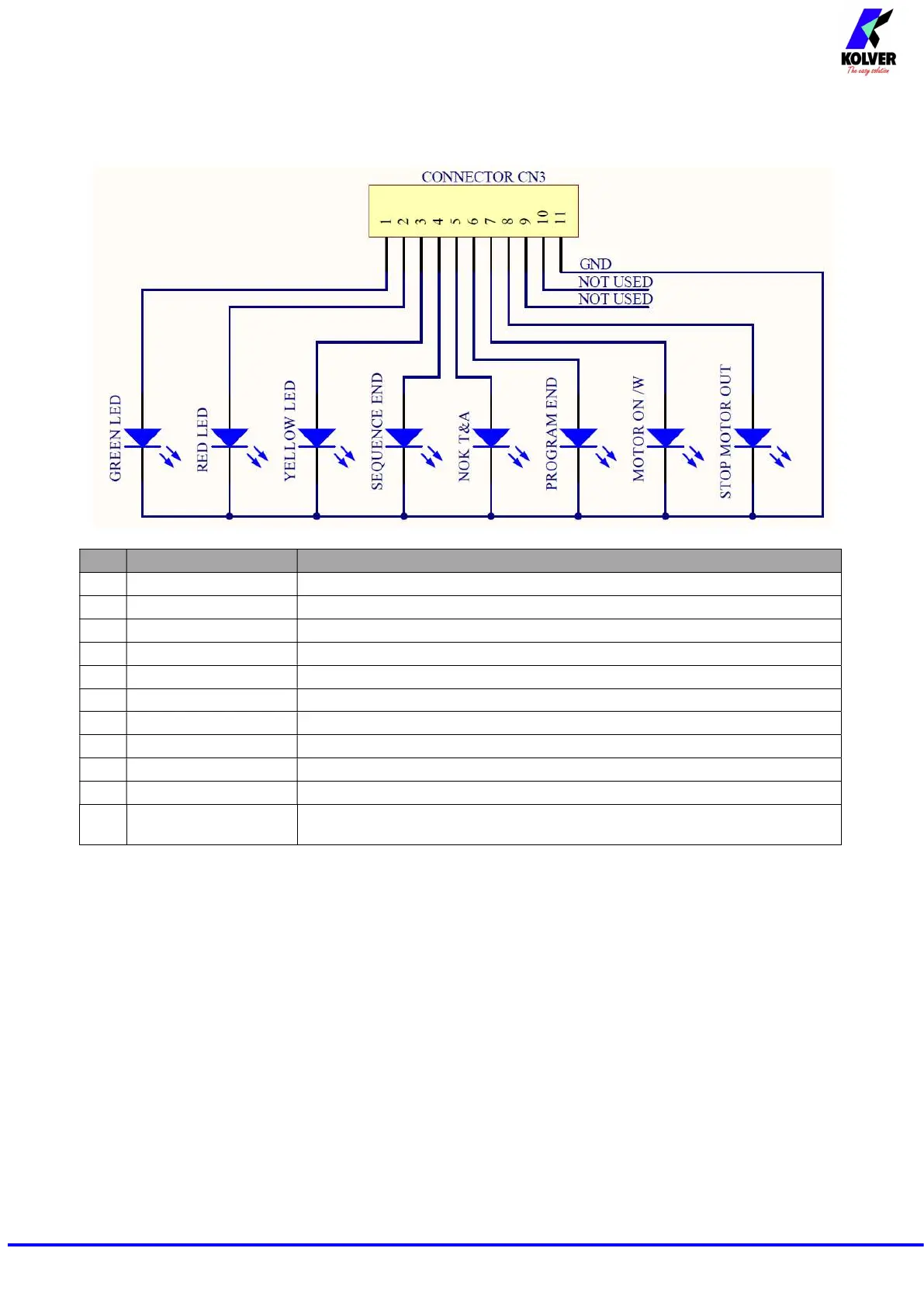

CN3 CONNECTOR – 11 pins
All of the following pins are output.
PIN
NAME FUNCTION
1 GREEN LED
This signal works in parallel with the green led on the front panel.
2 RED LED
This signal works in parallel with the red led on the front panel.
3 YELLOW LED
This signal works in parallel with the yellow led on the front panel.
4 SEQUENCE END
It indicates the end of a sequence, if enabled.
5 NOK T&A
It activates if any angle error occurs.
6 PR OK
It activates at the end of each program.
7 MOTOR ON (\W)
It activates when the motor runs while tightening.
8 STOP MOTOR
It activates when stop motor is enabled.
9 NOT USED
10 NOT USED
11 GND
Common to every output. Signals have to be enabled making contact
the desired signal and this pin
