Kolver EDU 2AE/TOP/TA - Trouble Shooting

Vers. 270921 Page 25

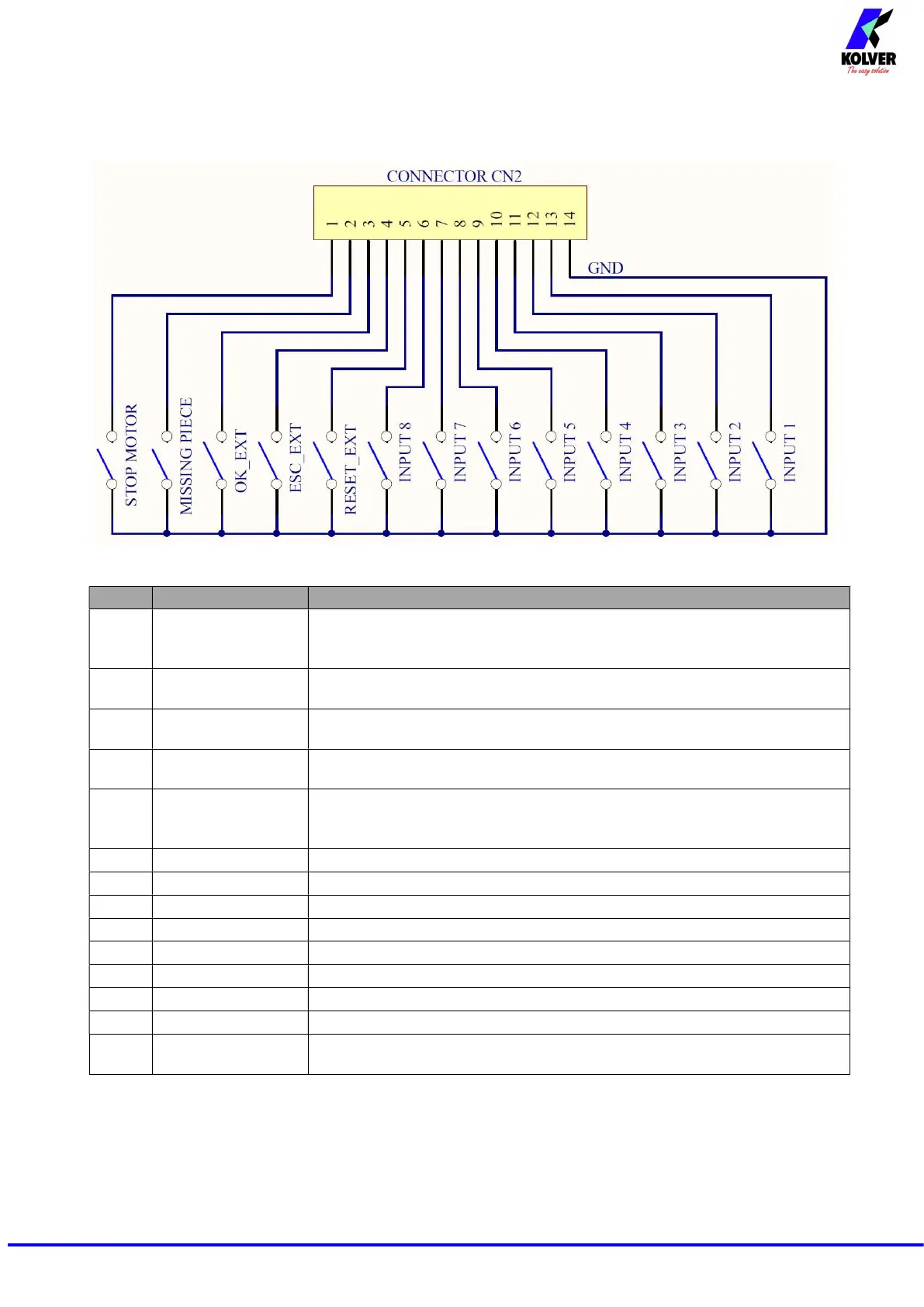

 CN2 CONNECTOR – 14 pins
All of the following pins are input: make a contact with pin 14 to activate them.
PIN NAME FUNCTION
1 STOP MOTOR
Remote motor stop. If it’s activated the message “STOP MOTOR ON”
appears on the display. The motor will stop and won’t start working again as
long as the contact is closed (as
Input pin 1 of CN2).
2 MISSING PIECE
If enabled it stops the motor, enables the error signal and “Error missing
piece
”
is displayed
on the status bar
.
3 OK EXT
If enabled (see point 4: OK-ESC commands, in the option menu), remote
OK key function.
4 ESC EXT
If enabled (see point 4: OK-ESC, in the option menu), ESC key function to
reser remote errors.
5 RESET EXT
If enabled (see point 4: OK-ESC commands, in the option menu), it resets
program or sequence according to the preset function (see point 5: Reset, in
the option menu
)
6 INPUT 8
Switch – selection of program 8
7 INPUT 7
Switch – selection of program 7
8 INPUT 6
Switch – selection of program 6
9 INPUT 5
Switch – selection of program 5
10 INPUT 4
Switch – selection of program 4
11 INPUT 3
Switch – selection of program 3
12 INPUT 2
Switch – selection of program 2
13 INPUT 1
Switch – selection of program 1
14 GND
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin
(
GND
) .
