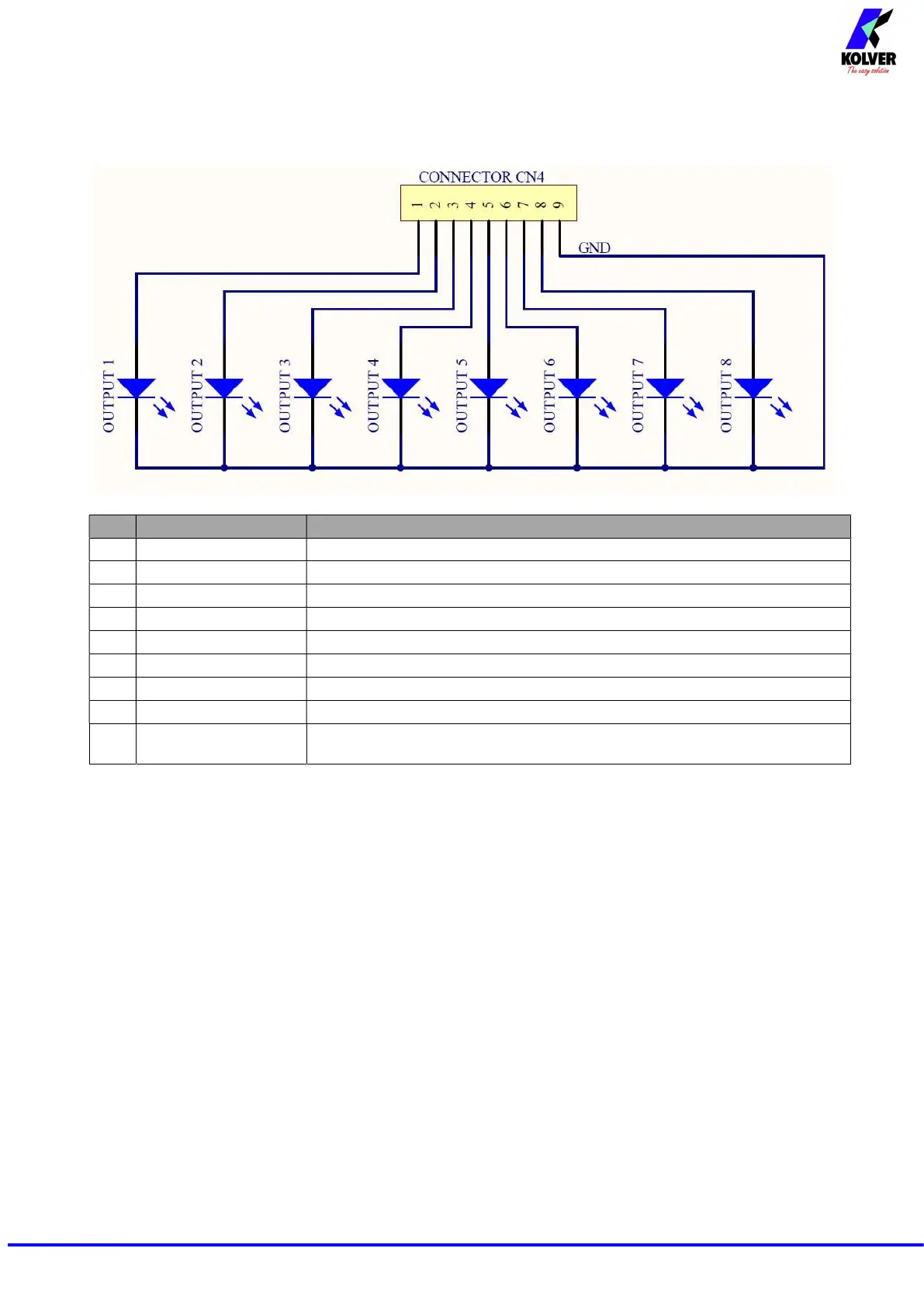

 CN4 CONNECTOR – 9 pins
All of the following pins are output.
PIN NAME FUNCTION
1 OUTPUT 1
It indicates you’re using program 1
2 OUTPUT 2
It indicates you’re using program 2
3 OUTPUT 3
It indicates you’re using program 3
4 OUTPUT 4
It indicates you’re using program 4
5 OUTPUT 5
It indicates you’re using program 5
6 OUTPUT 6
It indicates you’re using program 6
7 OUTPUT 7
It indicates you’re using program 7
8 OUTPUT 8
It indicates you’re using program 8
9 GND
Common to every output. Signals have to be enabled making contact
between
the desired signal and this pin
(
GND
)
.
