SERIAL PRINT:
Every control unit is supplied with a 9 pin serial female connector (connection pin: PIN 2 = TX, PIN 3 =
RX, PIN 5 = GND) and a mini USB connector. You can print the results of each screwing on a printer (for
example Kolver model PRNTR1) and/or on PC (for example through Hyper Terminal or Realterm or any
data transmission program or EDU EXPAND only on EDU2AE/TOP ver. 3.00 – only print not setting). You
can also save those results on a USB device (only on EDU2AE/TOP/E and EDU2AE/TOP/TA from ver.
3.00). The transmission characteristics (only serial and USB) are the following: 9600 (bits per second), 8
(data bits), n (no parity), 1 (bits stop 1).

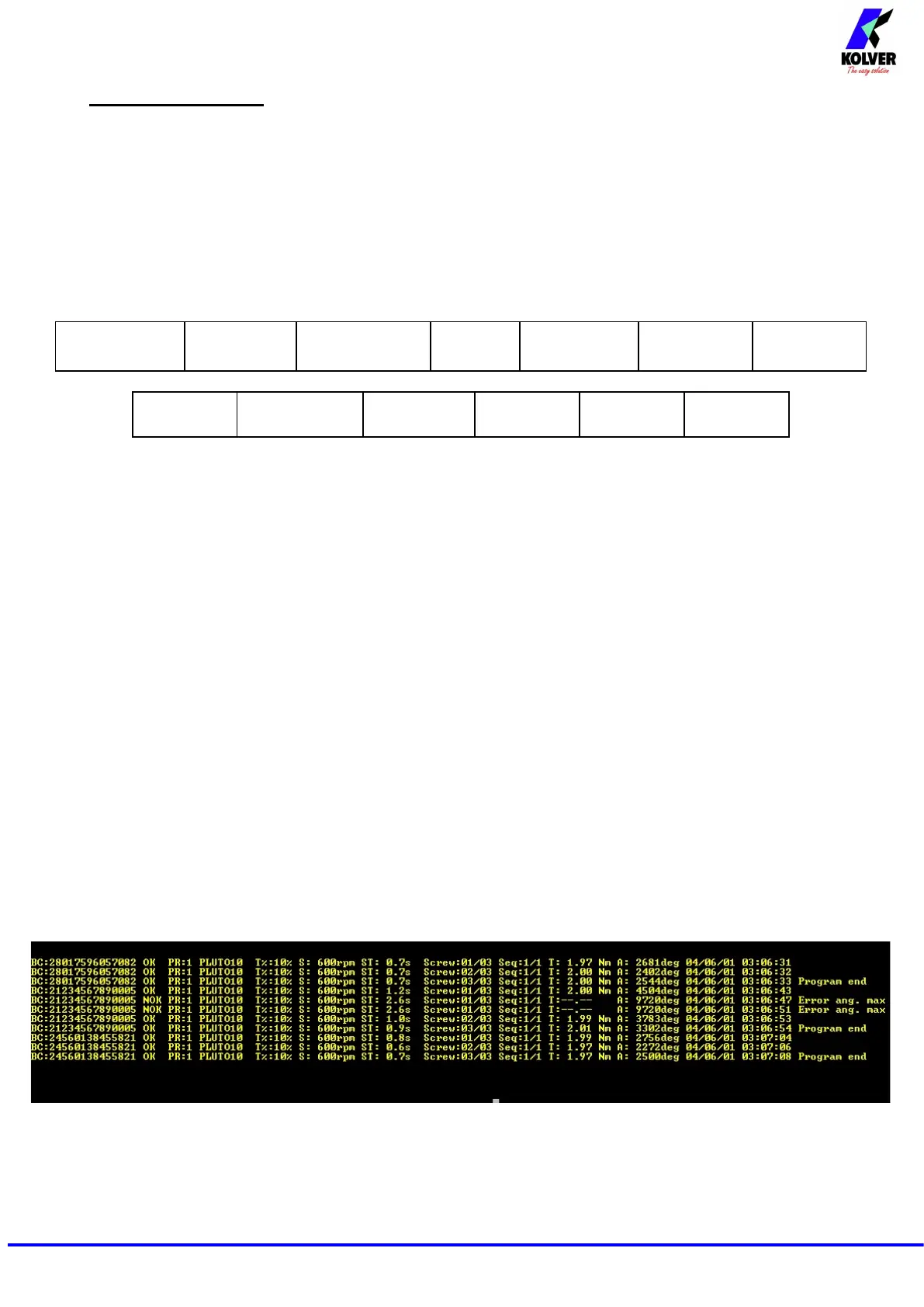

The print string is the following:
SCREW
SEQUENCE
TORQUE
ANGLE
DATE
NOTICE
BC: Barcode = it begins with “BC:” and it’s followed by the code of the scanned product.
Result = screwing result: correct or incorrect.
OK = the torque has been correctly reached, all the selected parameters are satisfied and the control
unit will give out a beep sound of 0.5 sec.
NOK = the torque has been reached during ramp time or Fast Speed (see error table). In this
case, the unit will give out 2 beep sounds and the red led will light up.
PR: Program number = it indicates the running program.
Model = Model of screwdriver you’re using.
T%: Torque% = percentage of the set torque level.
S: Speed = preset speed value.
ST: Screwing time = it indicates the time of the screwing.
Screw: Number of screws = number of tightened screws/total number of screws.
Seq: Sequence stage = it indicates the stage of the sequence.
T: Torque = torque value.
A: Angle = angle value.
Notice = in case of program end, it prints “Program End”, in case of sequence end, it prints “Seq. end” or it
indicates the type of error (see paragraph: trouble shooting).
BARCODE RESULT
PROGRAM
NUMBER
MODEL TORQUE%
SCREWING
TIME
SPEED
