OPERATION
OPERATION
SHIFTING GEAR
The machine does not have to be stopped to shift gears.
1.

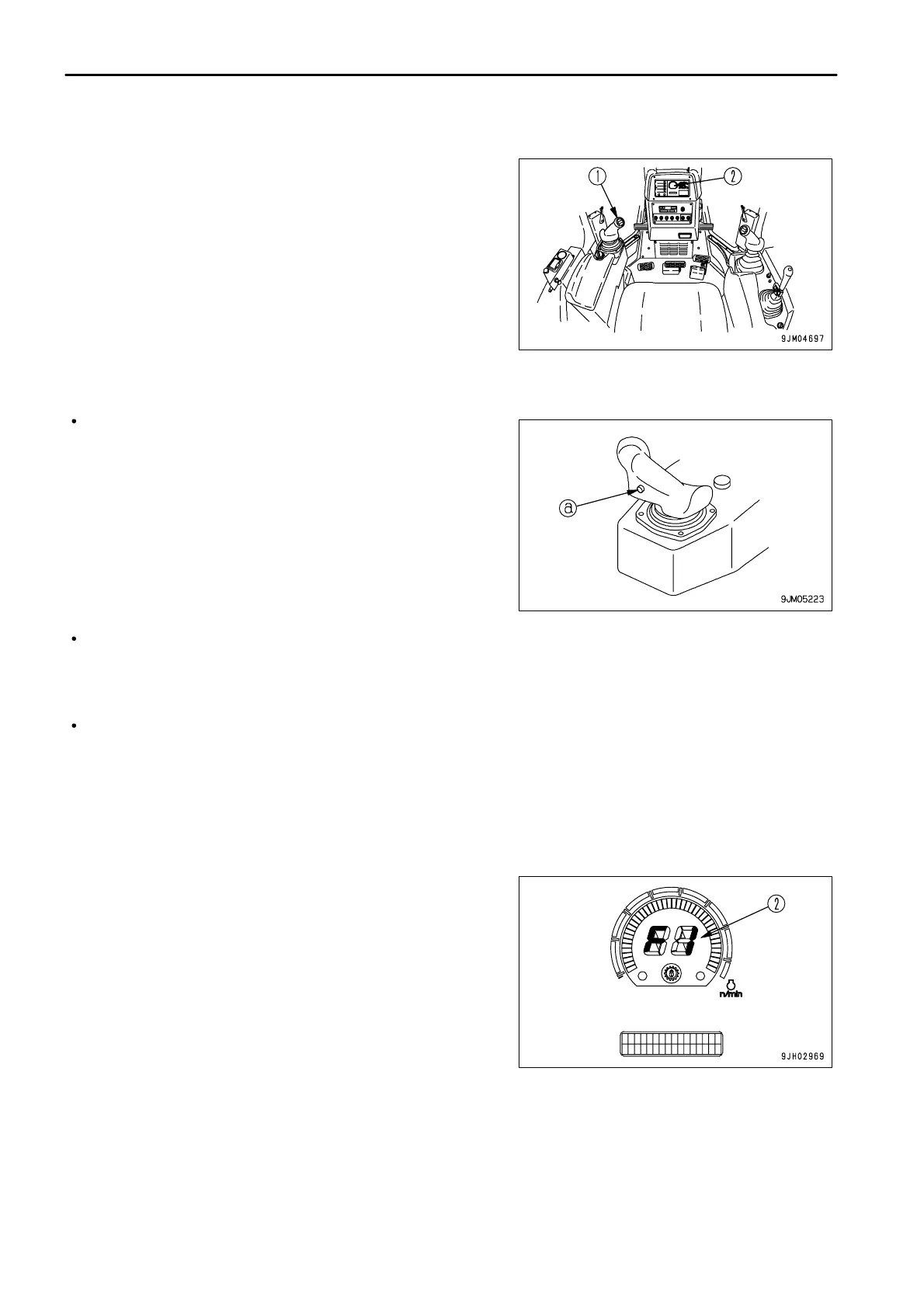

Move joystick (1) to the desired gear position to shift gears.
GEAR SHIFTING
When the joystick is at the FORWARD or REVERSE position
and switch (a) is pushed, the transmission speed will change.
Shift switch (a): Each time switch is pressed, speed range
changes 1st → 2nd → 1st When the joystick is at the
FORWARD or REVERSE position and switch (a) is pushed, the
transmission speed will change.
If the switch is at the N position and the FORWARD switch is pressed, the speed range shifts to F1 (FORWARD
operation).
If the speed range is F1 and the shift switch is pressed once, the speed range shifts to F2.
If the speed range is F2 and the shift switch is pressed once, the speed range shifts to F1.
If the switch is at the N position and the REVERSE switch is pressed, the speed range shifts to R1 (REVERSE
operation).
If the speed range is R1 and the shift switch is pressed once, the speed range shifts to R2.
If the speed range is R2 and the shift switch is pressed once, the speed range shifts to R1.
For details of the maximum speed at each speed range, see SPECIFICATIONS (PAGE 5-2).
REMARK
The speed range in use is displayed on the panel display according
to the gearshift operation.
For example:
Neutral: N is displayed on the display panel A (2)
FORWARD 1st: F1 is displayed on the display panel A (2)
REVERSE 2nd: R2 is displayed on the display panel A (2)
When the parking lever is locked, P is displayed.
3 - 98
