Komatsu D475A-3 - Horn Switch

.
OPERATION
EXPLANATION OF COMPONENTS

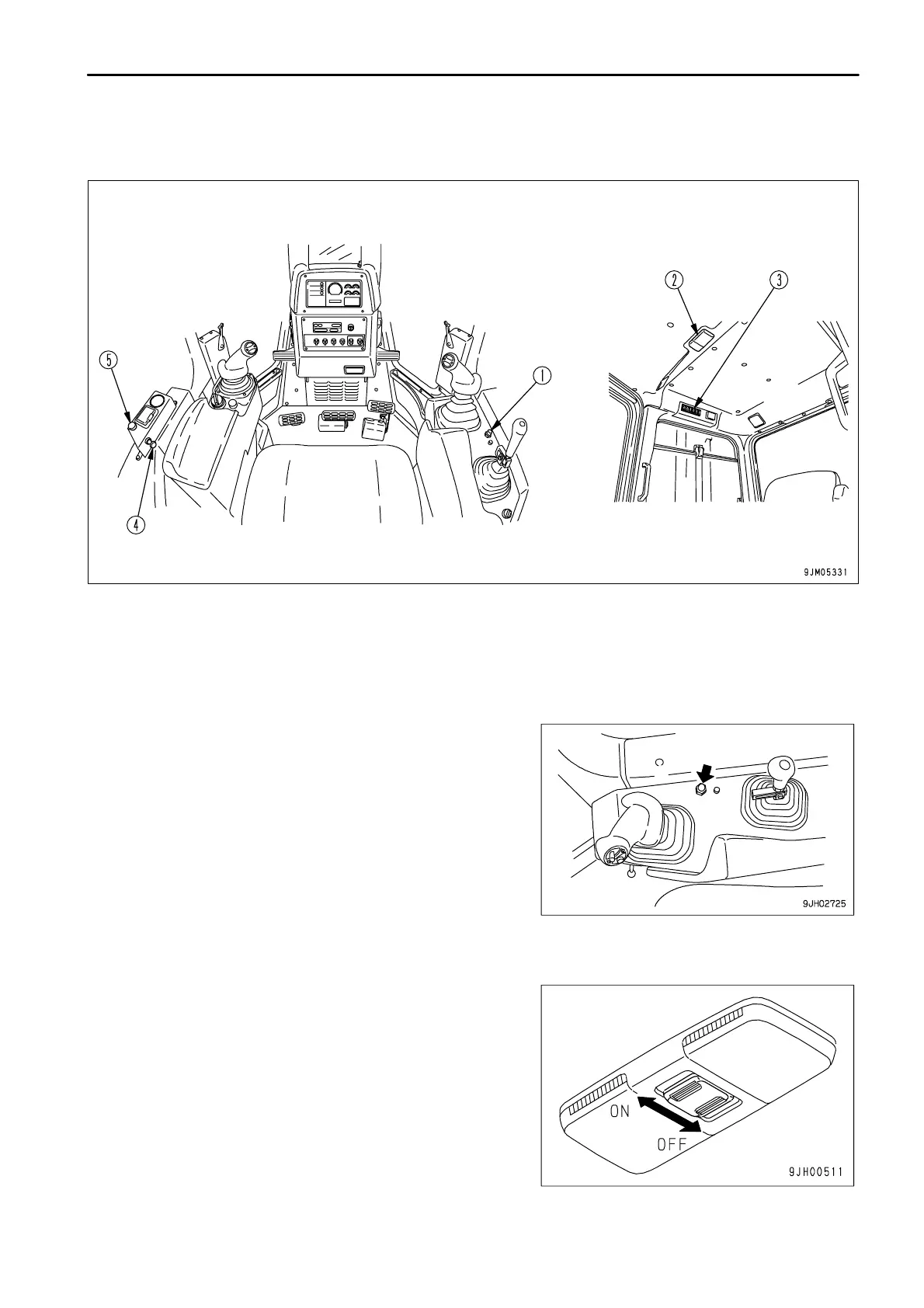

SWITCH
(1) Horn switch
(2) Room lamp switch
(3) Wiper switch
(4) Cigarette lighter (machines equipped with cab)
(5) Accessory socket
HORN SWITCH
The horn sounds when the button (1) at the rear of the blade control
lever at the right side of the operator's seat is pressed.
ROOM LAMP SWITCH
This (2) lights up the room lamp.
ON position: Lamp lights up
OFF position: Lamp is out
3 - 35
