Komatsu D475A-3 - Brake Pedal

.
OPERATION
EXPLANATION OF COMPONENTS

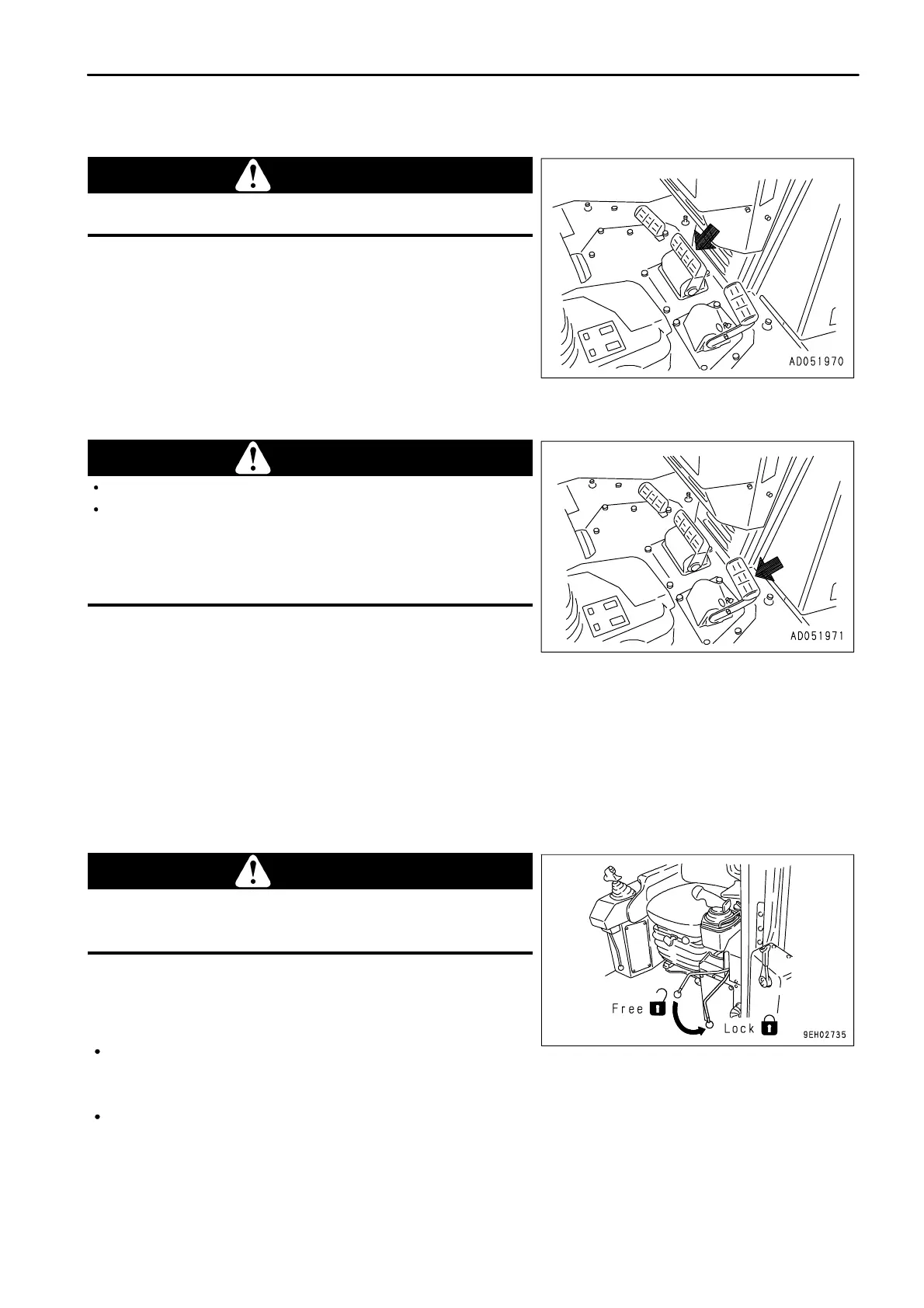

BRAKE PEDAL
WARNING
Do
not
place
your
foot
on
this
pedal
unnecessarily.
Depress the pedal (3) to apply the right and left brakes.
DECELERATION PEDAL
WARNING
Do
not
place
your
foot
on
this
pedal
unnecessarily.
When
passing
over
the
top
of
a
hill
or
when
a
load
is
dumped
over
a
cliff,
the
load
is
suddenly
reduced,
so
there
is
danger
that
the
travel
speed
will
also
increase
suddenly.
To
prevent
this,
depress
the
decelerator
pedal
to
reduce
the
travel
speed.
This pedal (4) is used when reducing the engine speed or stopping
the machine.
When switching between forward and reverse, or when stopping
the machine, use this pedal to reduce speed.
REMARK
When operating the deceleration panel, there may be a particular
noise, but there is no problem with quality or durability.
PARKING LEVER
WARNING
When
the
machine
is
parked,
always
set
the
parking
lever
to
the
LOCK
position.
This lever (5) is used to apply the parking brake.
REMARK
When operating the parking lever to the LOCK position, return
the steering, directional, and gearshift lever to the N position
first.
When starting the engine, if the parking lever is not at the LOCK
position, the limit switch is actuated and it is impossible to start
the engine.
3 - 41
