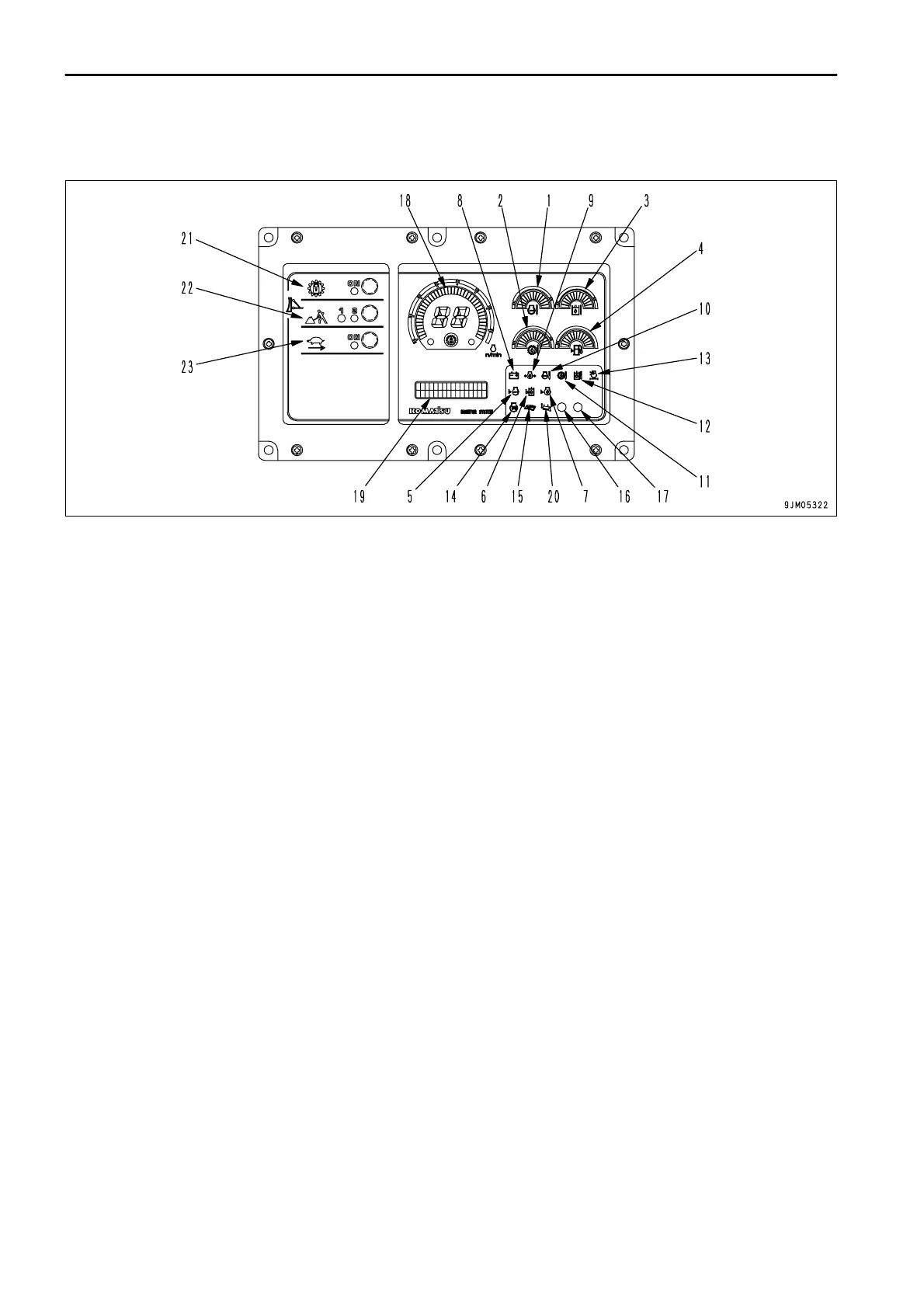

FRONT PANEL
(1) Engine cooling water temperature gauge
(2) Power train oil temperature gauge
(3) Hydraulic oil temperature gauge
(4) Fuel gauge
(5) Radiator coolant level check lamp
(6) Hydraulic oil level check lamp
(7) Engine oil level check lamp
(8) Charge level monitor
(9) Engine oil pressure caution lamp
(10) Engine cooling water temperature caution lamp
(11) Power train oil temperature caution lamp
(12) Hydraulic oil temperature caution lamp
(13) Air cleaner clogging caution lamp
(14) Engine preheating pilot lamp
(15) Maintenance caution lamp
(16) Warning lamp
(17) Filter, oil change interval lamp
(18) Display panel A(Speed range, Engine speed)
(19) Display panel B (Multi-information)
(20) Dual/single tilt selector display lamp
(21) Lock up mode switch
(22) Economy mode selector switch
(23) Reverse slow mode selector switch
