OPERATION
EXPLANATION OF COMPONENTS
METER GROUP
NOTICE
While
the
engine
is
at
rest,
turn
the
starting
switch
ON
to
see
if
engine
cooling
water
temperature
gauge,
power
train
oil
temperature
gauge,
fuel
gauge
and
monitor
lamps
all
light
up.
If
they
do
not,
ask
your
Komatsu
distributor
to
inspect
it.

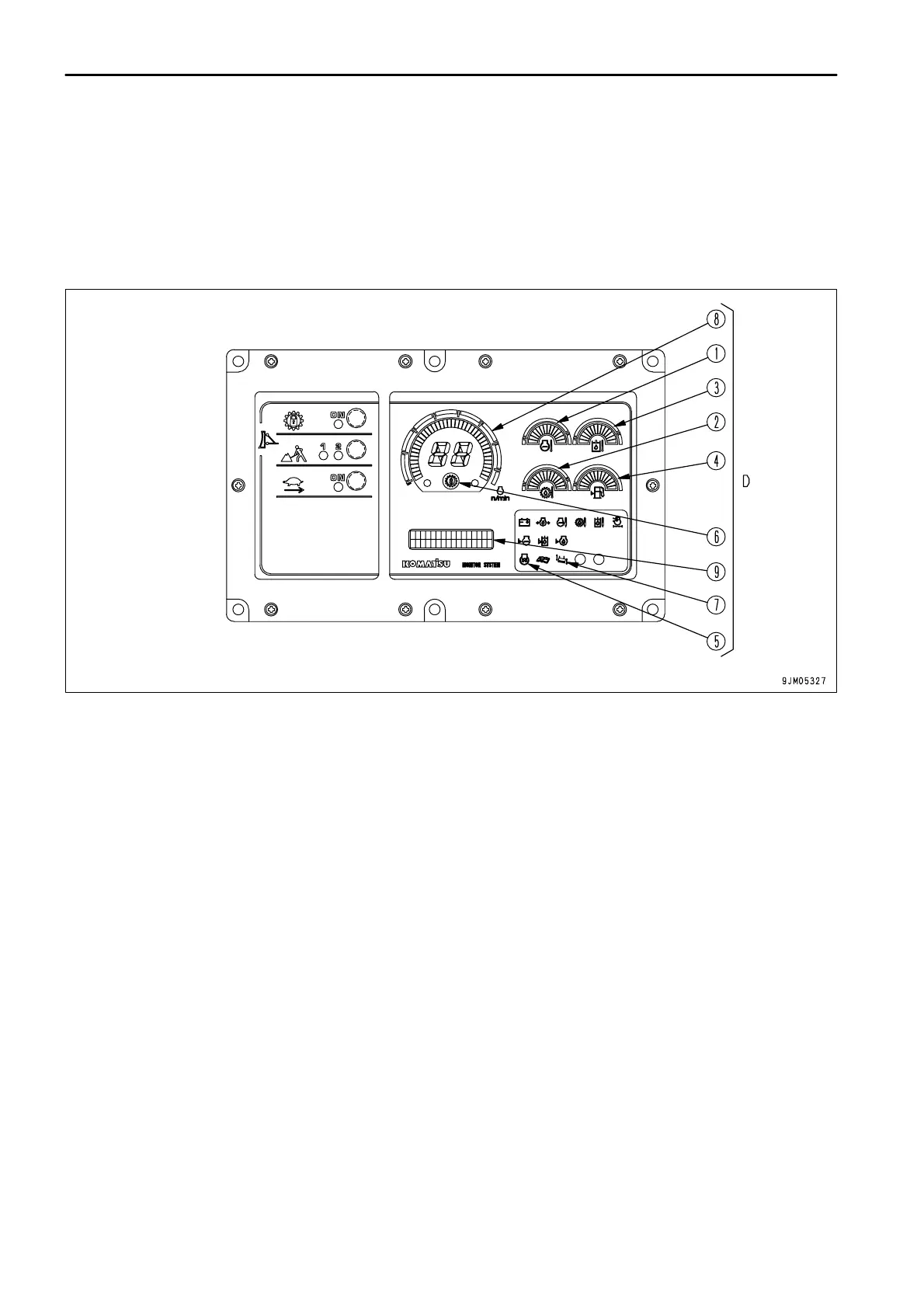

D (1) Engine cooling water temperature gauge
D (2) Power train oil temperature gauge
D (3) Hydraulic oil temperature gauge
D (4) Fuel gauge
D (5) Engine preheating pilot lamp
D (6) Torque converter lock up pilot lamp
D (7) Dual/single tilt selector display lamp
(Dual tilt dozer specification)
D (8) Display panel A
(Speed range display, Engine speed)
D (9) Display panel B (multi-information)
