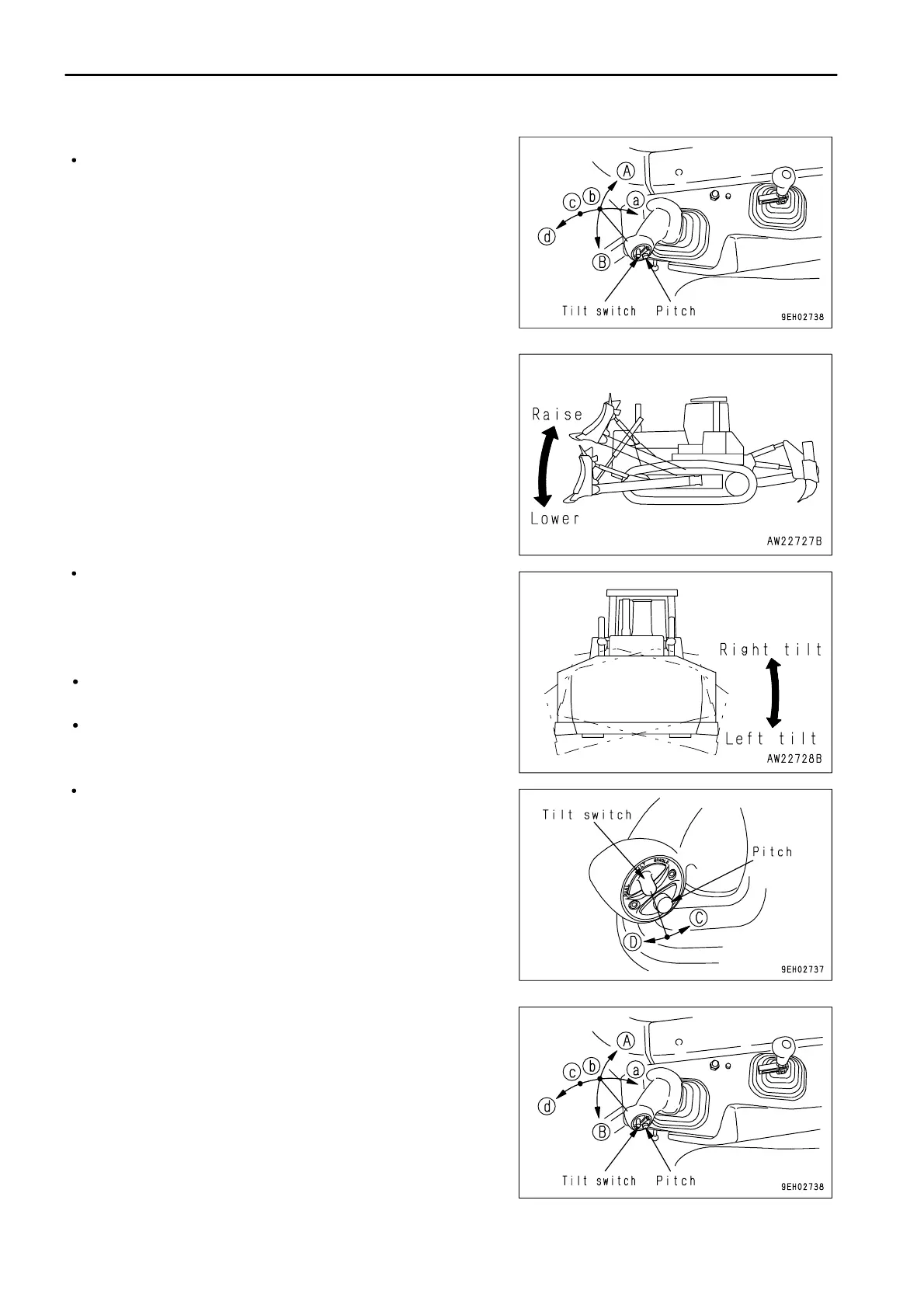

This lever is used to raise or tilt the blade.
Lifting control
(a) RAISE:
(b) HOLD:
Blade is stopped and held in this position.
(c) LOWER:
(d) FLOAT:
Blade will move freely according to external force.
When released form FLOAT position, this lever will not return to
HOLD position, so it must be moved back by hand.
DUAL TILT OPERATION
(A) RIGHT TILT
(B) LEFT TILT
With the dual tilt operation, a larger amount of tilt can be
obtained than with the single tilt operation.
With the dual tilt operation, the blade can be operated to any of
RAISE, HOLD, or LOWER.
Single tilt operation
Operate the tilt switch to the (C) position.
(A) RIGHT TILT
(B) LEFT TILT
