EXPLANATION OF COMPONENTS
The fuses protect the electrical equipment and wiring from burning out.
If the fuse becomes corroded, or white powder can be seen, or the fuse is loose in the fuse holder, replace the fuse.
Replace a fuse with another of the same capacity.
Chassis

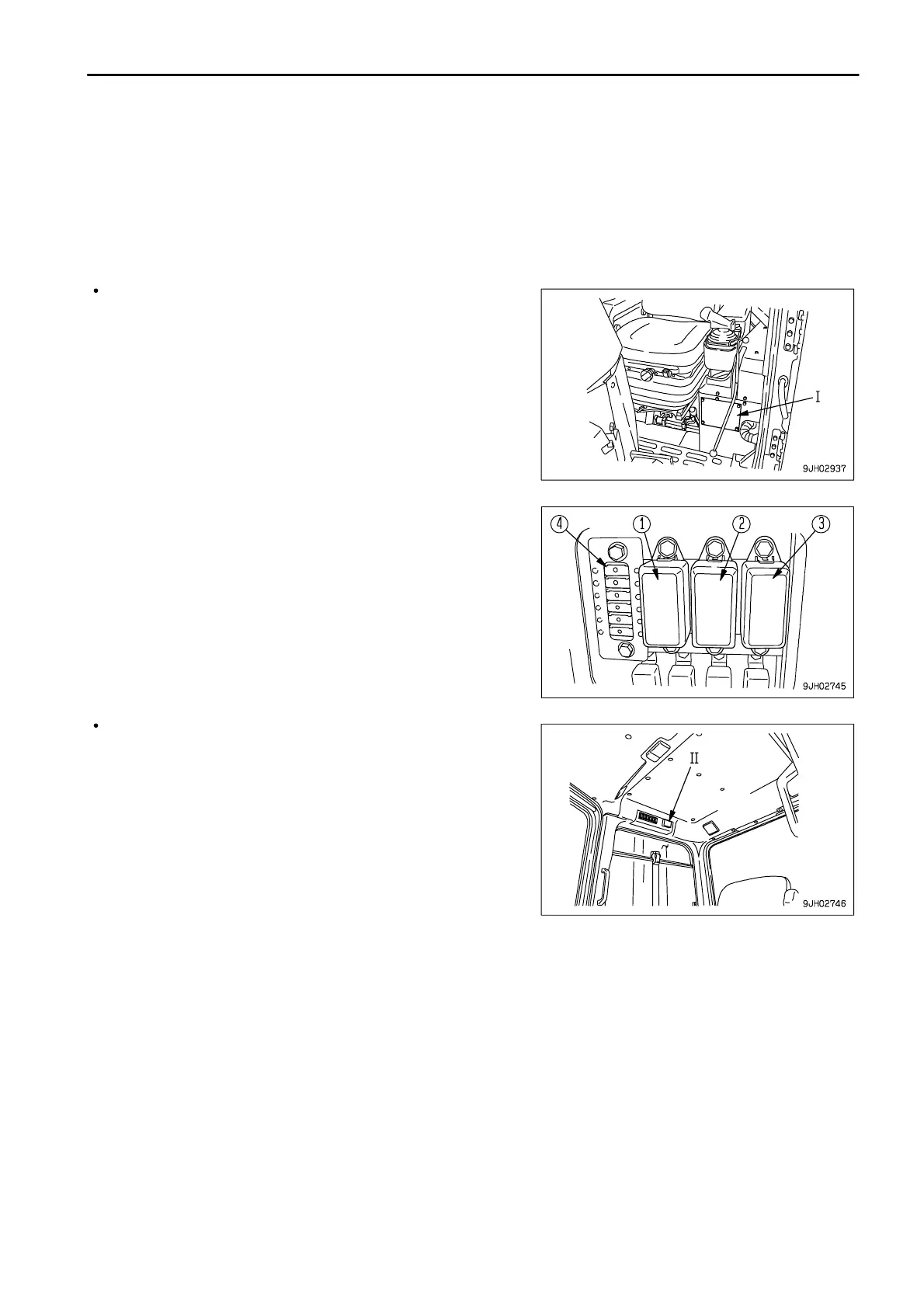

Open the fuse inspection cover at the bottom front left of the
operator's compartment. Fuse box I is installed inside.
(1) Fuse box fs1
(2) Fuse box fs2
(3) Fuse box fs4
(4) Circuit breaker
Cab (machines equipped with cab)
Fuse box II is installed at the bottom of the overhead panel.
