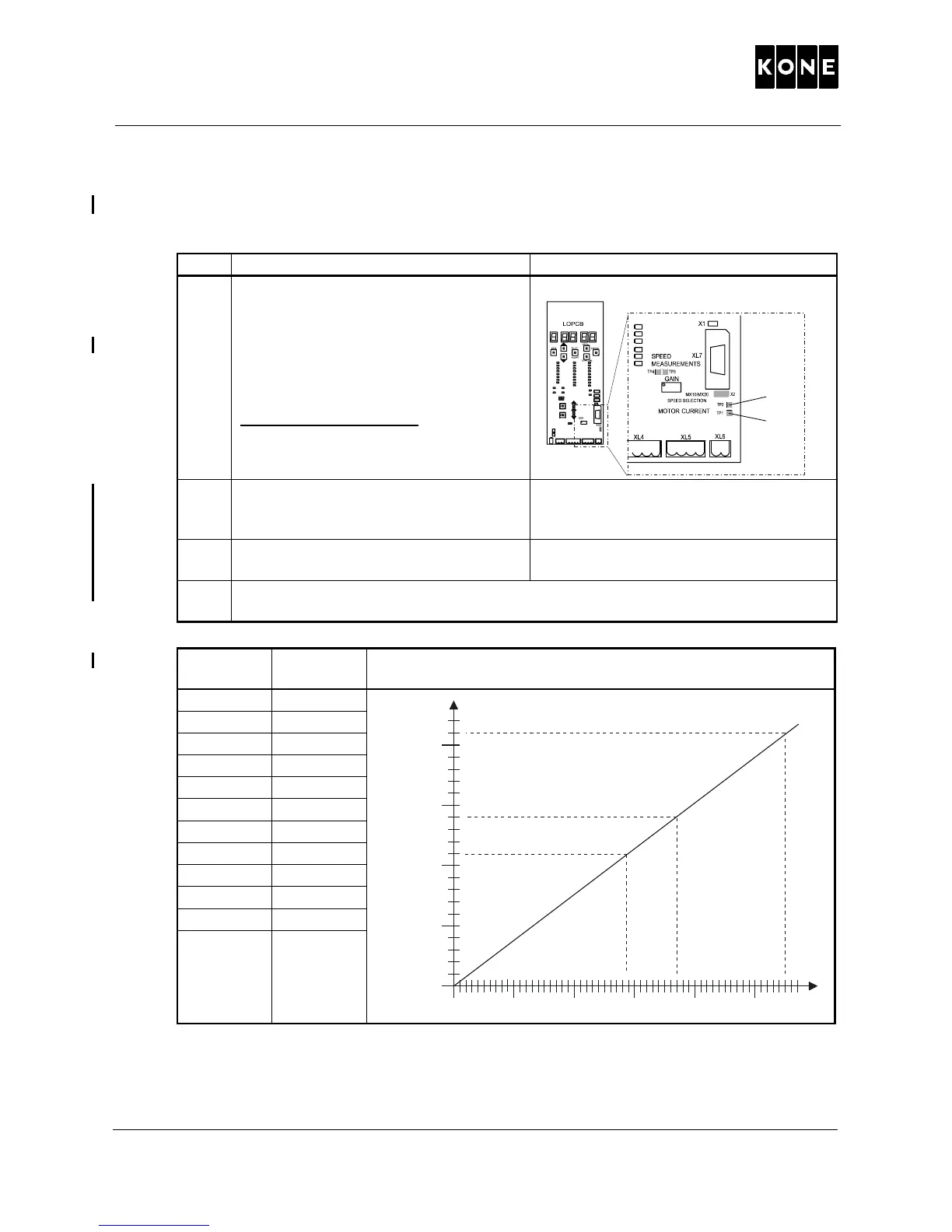

6.6 Balance measurement in elevators with V
3
F18 drive and MAP panel
Step Action Note
1 Measure the voltage in the
maintenance panel between test pins
TP1 and TP2 on LOP-CB board in MAP
panel. This voltage is equivalent to the
motor current.
Scaling ratio of the measurement:
38 mV corresponds 1 A.
Measuring points on
LOP-CB board:
2 Drive the empty car downwards and
with rated load upwards.
Use rated speed.
Measure these values at same level in
the elevator shaft.
3 Record values. The difference of the measurements
may be about 5 %.
4 If the difference is more than 5 %, recheck the elevator mechanical balancing.
Check also the adjustment of guide shoes or rollers against the guide.
Measured
voltage
Motor
current
Figure
1.1 VDC 29 A
1.2 VDC 32 A
1.3 VDC 34 A
1.4 VDC 37 A
1.5 VDC 39 A
1.6 VDC 42 A
1.7 VDC 45 A
1.8 VDC 47 A
1.9 VDC 50 A
2.0 VDC 53 A
2.1 VDC 55 A
1.1 VDC 29 A
TP1
TP2
1019849.wmf
1
0
2
0
30
4
0
50
A
0
0.5
1.0
1.5
2.0
V
1008915.wmf
