V3F25/18 drive
Installation Instruction
© 2004 KONE Corporation AM-11.65.020
All rights reserved. 39 (42) (E) 2004-01-08
0112

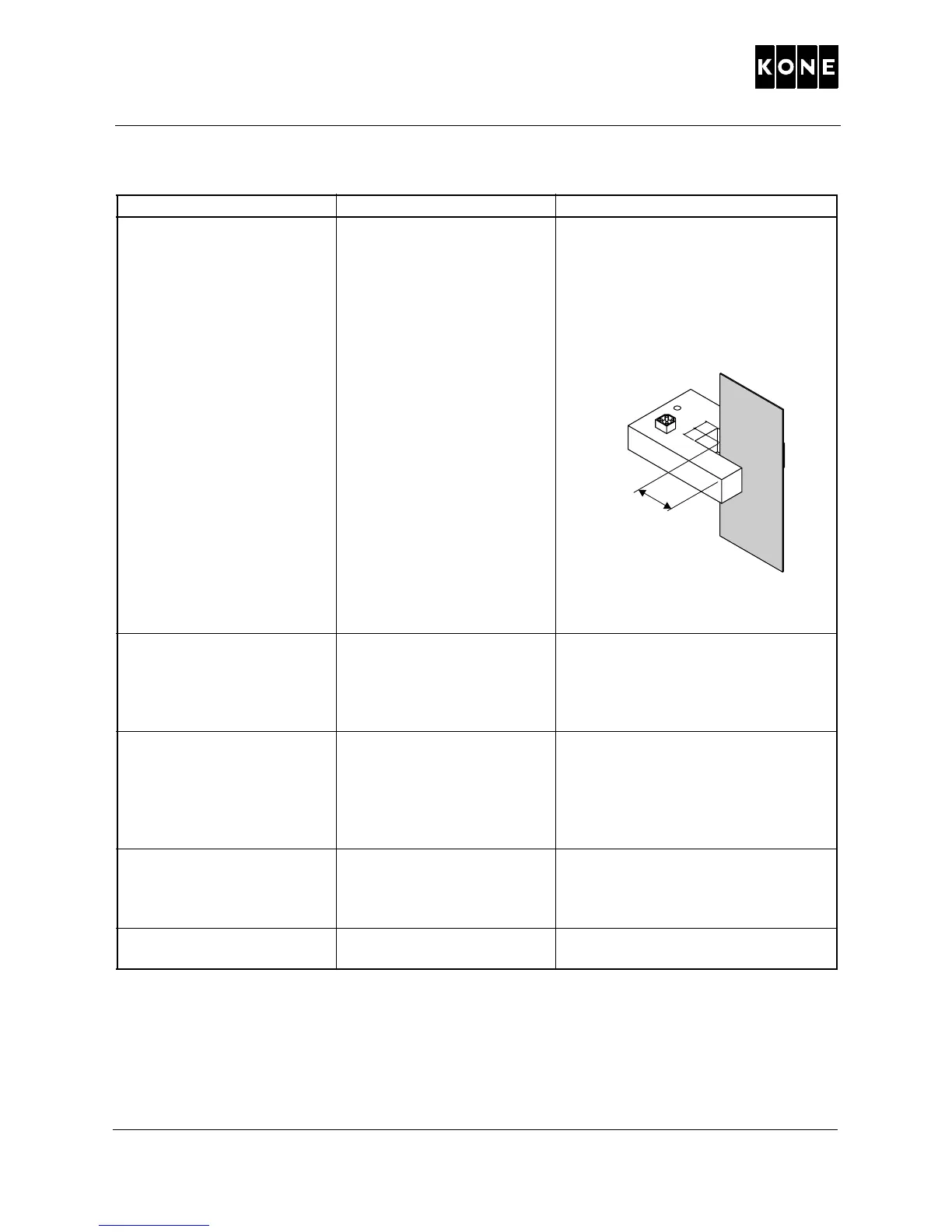

Overlapping of switches
61:U and N too small
Shaft setup not completed. • Check that the vanes or
magnets and switches are
positioned according to the
shaft vane diagram.
• If there are vanes they must be
correctly aligned in accordance
to the oscillator reader.
• Perform the shaft setup after
vane or magnet/switch
adjustment.
0113
Synchronisation switch fault
Shaft setup not completed. • Check the positioning of the
magnets and the gap between
switch and magnet.
• Perform the shaft setup after
vane /switch adjustment.
0114
Too short distance between
the floors.
Shaft setup not completed. • Check that the vanes and
switches are positioned
according to the shaft vane
diagram.
• Perform the shaft setup after
vane /switch adjustment.
0115
Overlapping of switches
61:U and N too long in the
topmost floor.
Shaft setup not completed. • Correct the positioning of the
vanes.
• Perform the shaft setup after
vane /switch adjustment.
0116
Wrong top floor count
Shaft setup not completed. • Perform the shaft setup.
Fault Symptoms of fault Action
3
0
-
3
5
m
m
=
=
1018076.wmf
