V3F25/18 drive
Installation Instruction
© 2004 KONE Corporation AM-11.65.020
All rights reserved. 7 (42) (E) 2004-01-08

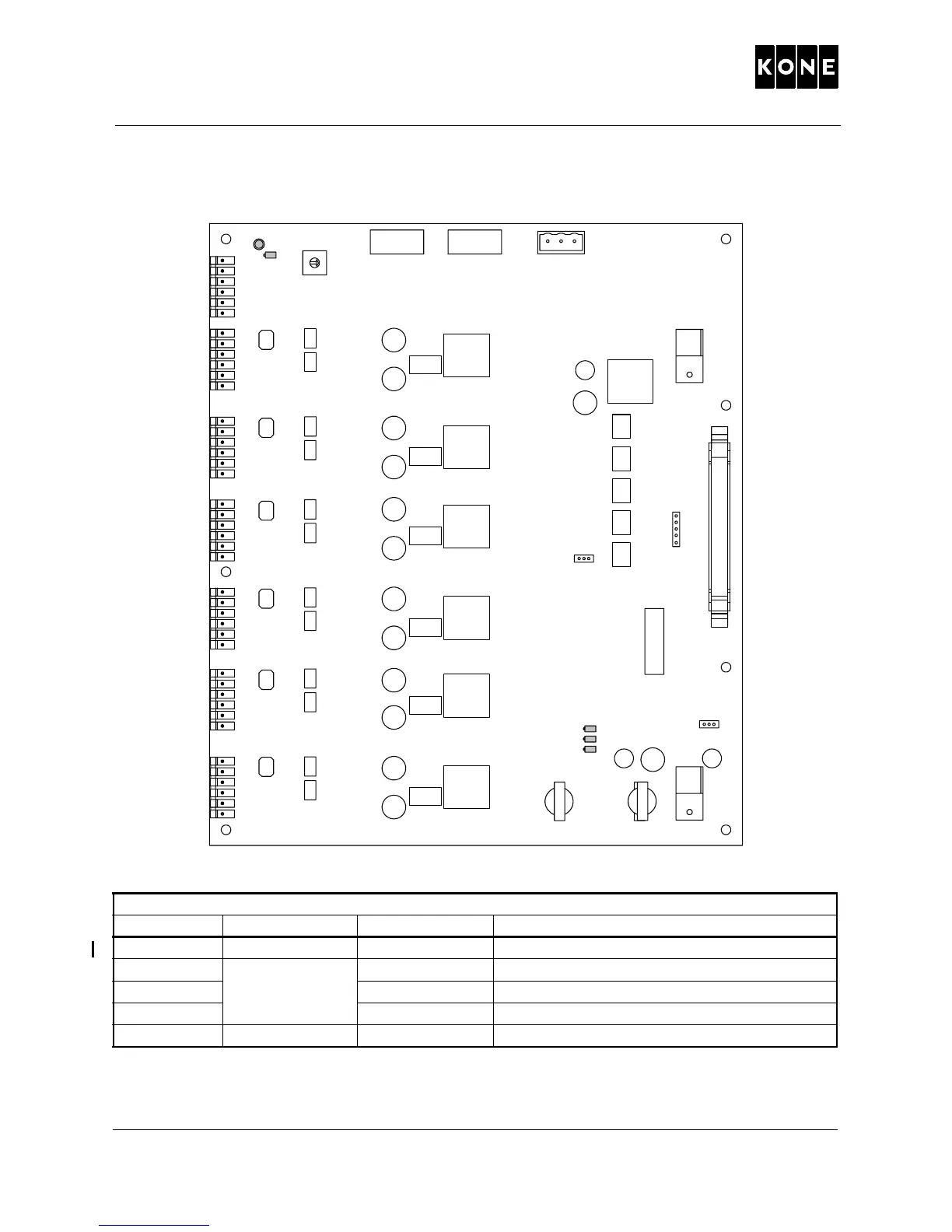

3.1.2 Inverter board (725800G01)
LED indications on the inverter board
LED Note Normal Indicates
DANGER Yellow High voltage exists in the intermediate circuit.
SCL Active approx. 8
sec. also after
power up
Red Overcurrent in the motor.
BRSL Red Problem in the braking transistor circuit.
DCS Red DC over or under voltage.
BRE Not a fault LED Red Resistor braking is on.
1019832.wmf
XD5
X6
X7G
X7F
X7E
X7D
X7C
X7B
X7A
BRF
DANGER
BRE
SCL
BRSL
DCS
BRF
-300V
VCC
DGND
MBE
DGND
SUP
