Kongsberg cNODE User Manual

12
453694/C
12InstallthecrimpterminalsinaMolex8–pinreceptacleaccordingtothecable
drawing.
ServiceconnectorJ5,page19
ThisisnowconnectorJ5.
13ConnectJ5toP5inthefrontonthePCB.

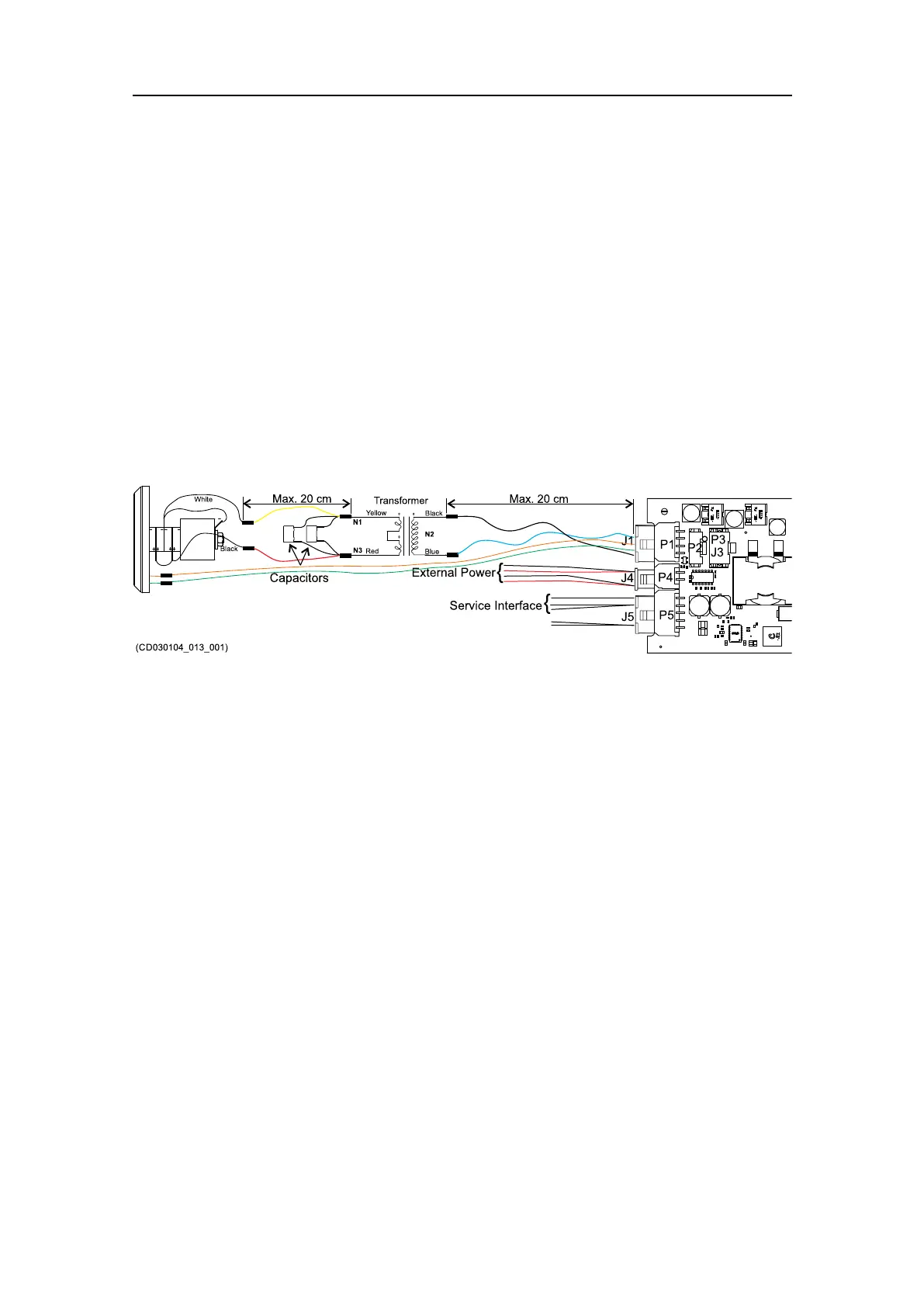

InstallingthetransducercablesTD80V
Cablescanbesuppliedwithanoptionalcablekit.
Prerequisites
TransducerconnectorpinoutJ1,page16
Thefollowingspecicitemsarerequiredforthistask:
•1xMolex8–pinreceptacle43025-0800
•7xMolexFemalecrimpterminal43030-0008
Procedure
1Useoneyellowwire(0.5mm
2
)andconnectthewhitewirefromthetransducerwith
bothcapacitorsandtheyellowwirefromthetransformer.
2Useoneredwire(0.5mm
2
)andconnecttheblackwirefromthetransducerwith
bothcapacitorsandtheredwirefromthetransformer.
3Usetwoblackwires(0.5mm
2
)andconnectbothtotheblackwirefromthe
transformer.
4Usetwobluewires(0.5mm
2
)andconnectbothtothebluewirefromthe
transformer.
5Usetwogreenwires(0.24mm
2
)andconnectbothtothegreenwirefromthe
transducer.
6Useoneorangewire(0.24mm
2
)andconnecttotheorangewirefromthetransducer.
7Addcrimpterminalstotheendofthewires.
8InstallthecrimpterminalsinaMolex8-pinreceptacleaccordingtothecable
drawing.
cNODEModemEmbedInstructionManual
