28
453694/C

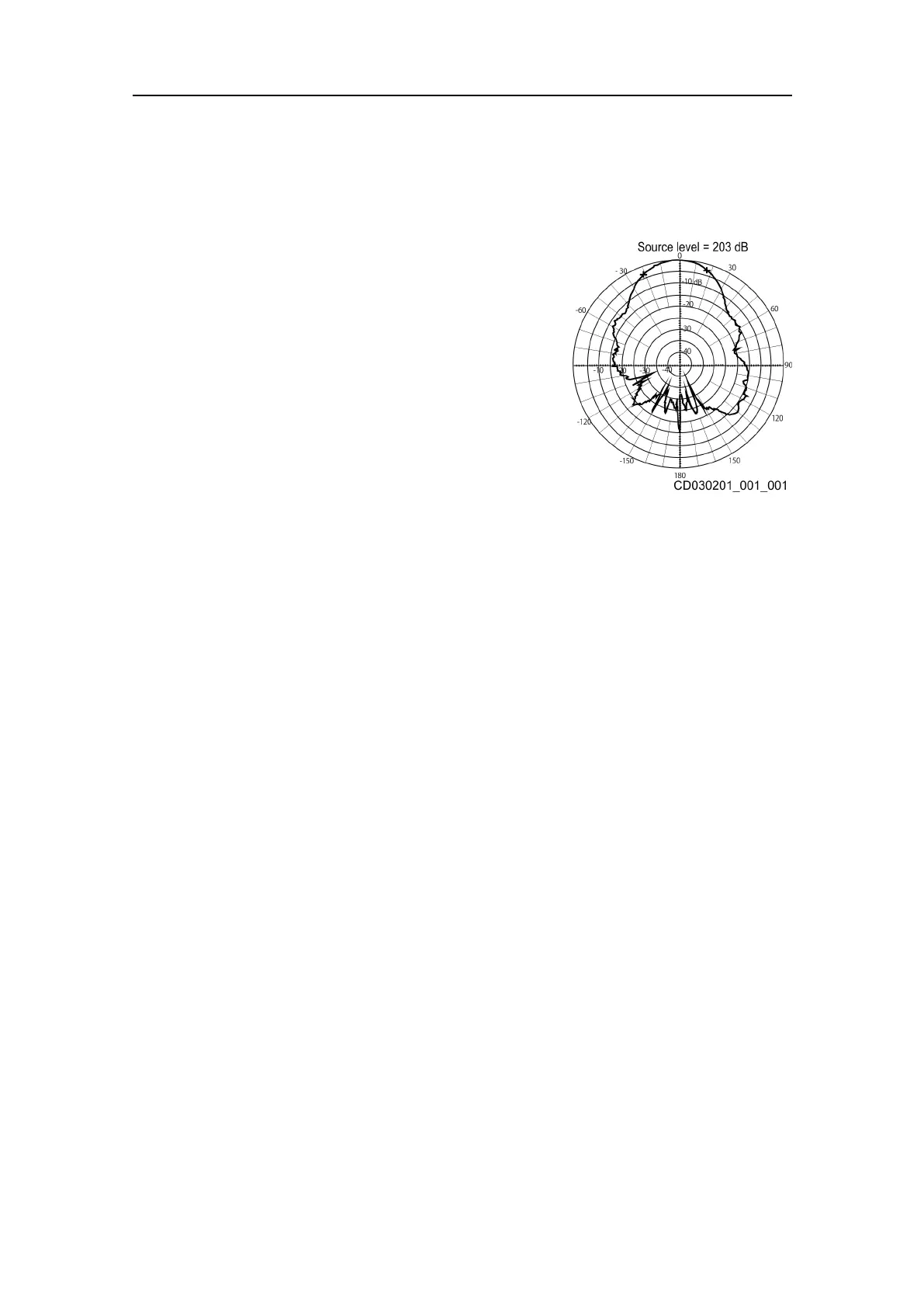

TD40VMini
•Transducerbeam:40°V ertical
•Receiversensitivity:90dB
•Sourcelevel:
–Maximum:203dB
–High:197dB
–Low:191dB
–Minimum:183dB
Weightandoutlinedimensions
Theweightandoutlinedimensionsarelistedbelow.
PrintedCircuitBoard(PCB)
•technicalspecications
Outlinedimensions:
–Height:142mm
–Width:63mm
–Depth:22mm
TD80V
•Outlinedimensions:
–Height:57.7mm
–Diameter:68mm
TD180
•Outlinedimensions:
–Height:70.5mm
–Diameter::88mm
cNODEModemEmbedInstructionManual
