Kongsberg Simrad RA85 - Fitting the Aerial

Chapter 4 RA83/84/85/93/94/95 Series
Installation OperationManual
4.6.2 Fitting the Aerial
(1) Remove the protection cap on the outlet of the rotating base.
(2) Fit the aerial on to the rotating base. Orient the aerial front face (the company logo
printed on it) to the direction to which two arrow-marks on the rotating base point.
(3) Fix the aerial with four bolts attached to the aerial base.
Aperture
Aerial
Rotating base
Arrow Mark
Protection cap
Rotating base
Plain washer
Spring washer
Fixing Bolt

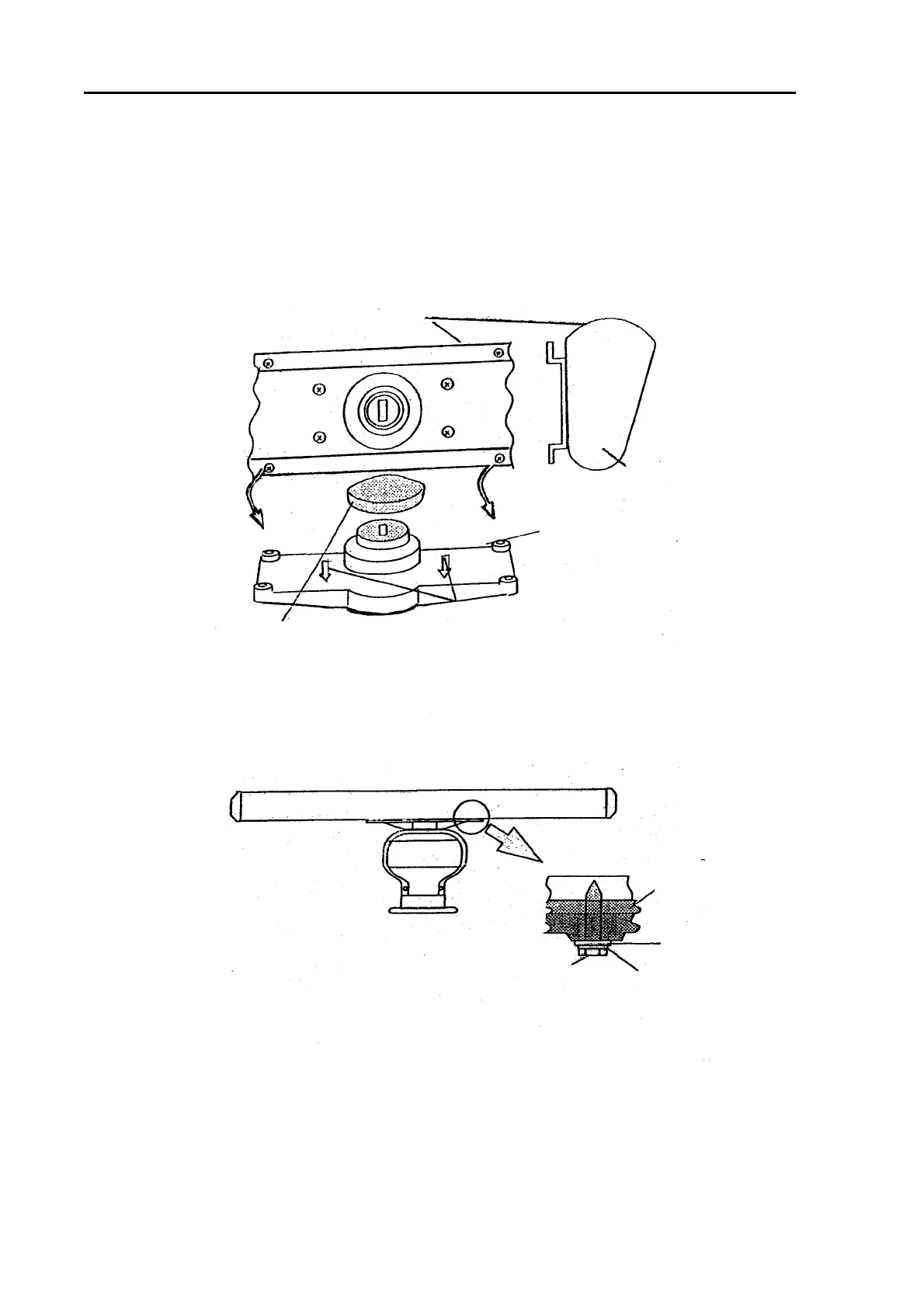

Figure 4.3 Fitting the aerial onto the rotating base
4-4 93142105-02
