Kongsberg Simrad RA85 - AIS Interface (Option); Setting up Option

RA83/84/85/93/94/95 Series Chapter 4
Operation Manual Installation
4-19

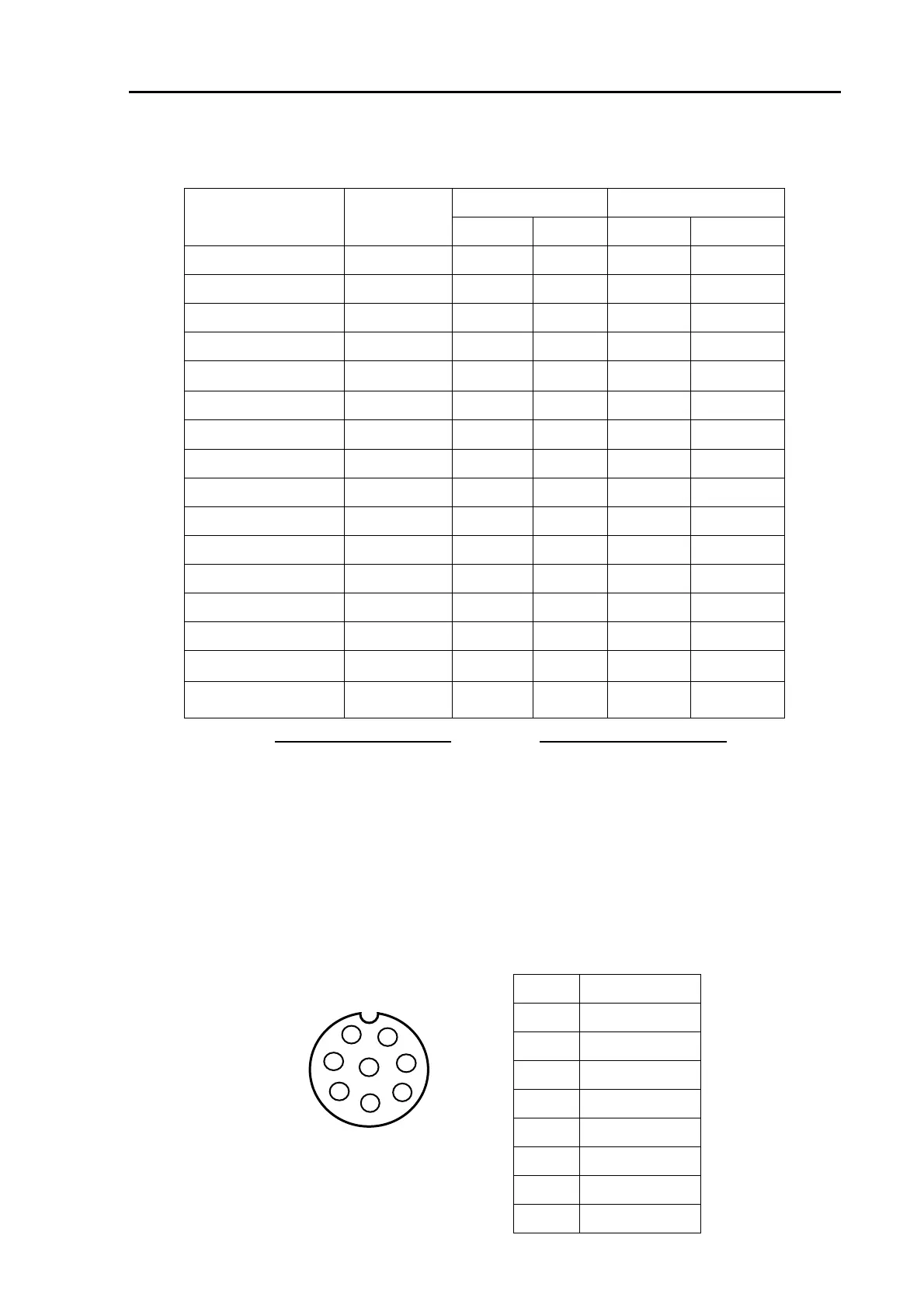

GAIN/SEA/HEIGHT Setting Record sheet
GAIN setting SEA Range scale
Pulse
length
Initial New Initial New
96NM(72or64NM) LP
48NM LP
24NM LP
12NM LP
12NM M2
6NM M2
6NM M1
3NM M2
3NM M1
1.5NM M1
1.5NM SP
0.75NM M1
0.75NM SP
0.5NM SP
0.25NM SP
0.125NM SP
STC HEIGHT: Initial setting: New setting:
4.8 Setting up Option
4.8.1 AIS Interface (Option)
DISP MENU: NAV/AIS
Activate AIS function from DISP/NAV/AIS menu.
Automatic Identification System (AIS) will automatically display ships symbol and data
around your ship. The range of the data display ships can be set from RADAR/AIS
menu.
8
7
Pin assignment on
Data Connector (Top view)
6
5
4
3
2
1
Pin No. NAME
1 Shield
2 IN-B
3 IN-A
4 OUT-B
5 OUT-A
6 GND
7 AIS ALARM+
8 AIS ALARM-
93142105-02
