RA83/84/85/93/94/95 Series Chapter 4
Operation Manual Installation
M5 (5 mm) tapping screw (4 positions)
Operation unit
Screw cover (4 positions)

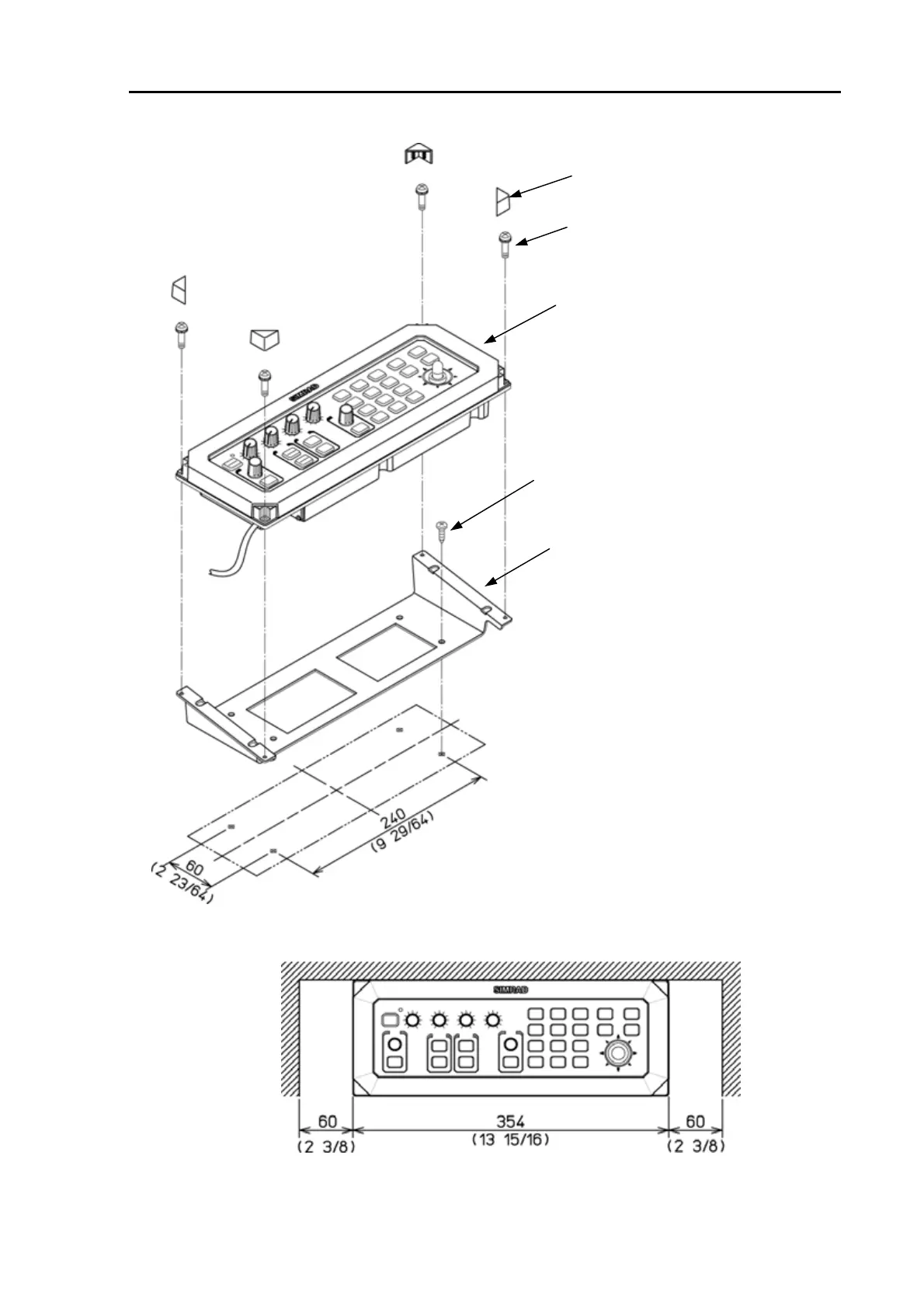

Figure 4.8 Mounting the Control unit
M5 (5 mm) Screw (4 positions)
Mounting bracke
Figure 4.9 Service space required for the Operation unit
