RA83/84/85/93/94/95 Series Chapter 4
Operation Manual Installation
GYRO / LOG
Master Display
SCANNER
DATA 1
DATA 2
DATA
AIS
REMOTE
GYRO/LOG
DATA 1
DATA 2
DATA
AIS
REMOTE
Remote Dis
p
la
y
External Display
Connecting cable
CW-561-10M (10m)
SCANNER

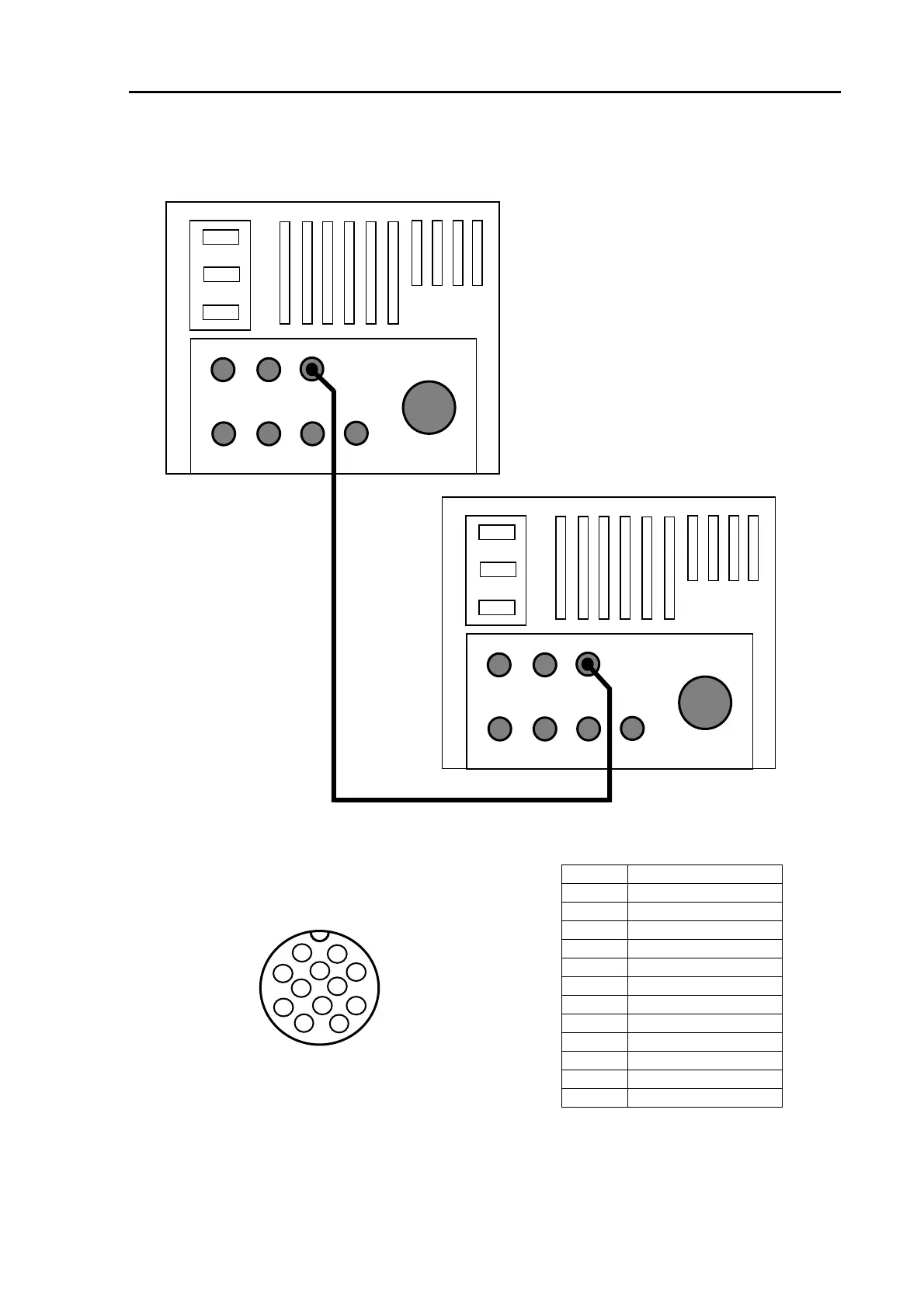

Figure 4.17 Remote display connection
Pin No. NAME
1 VIDEO OUT
2 TRIG OUT
3 GND
4 AZIP OUT
5 SHF OUT
6 GND
7 VIDEO IN
8 TRIG IN
9 GND
10 AZIP IN
11 SHF IN
12 +12Vdc(Not used)
1
2
3
4
5
6
7
8
9
12
11
10
Pin assignment on
REMOTE Connector
(Top view)
93142105-02 4-21
