8.2 Name of each Component
8

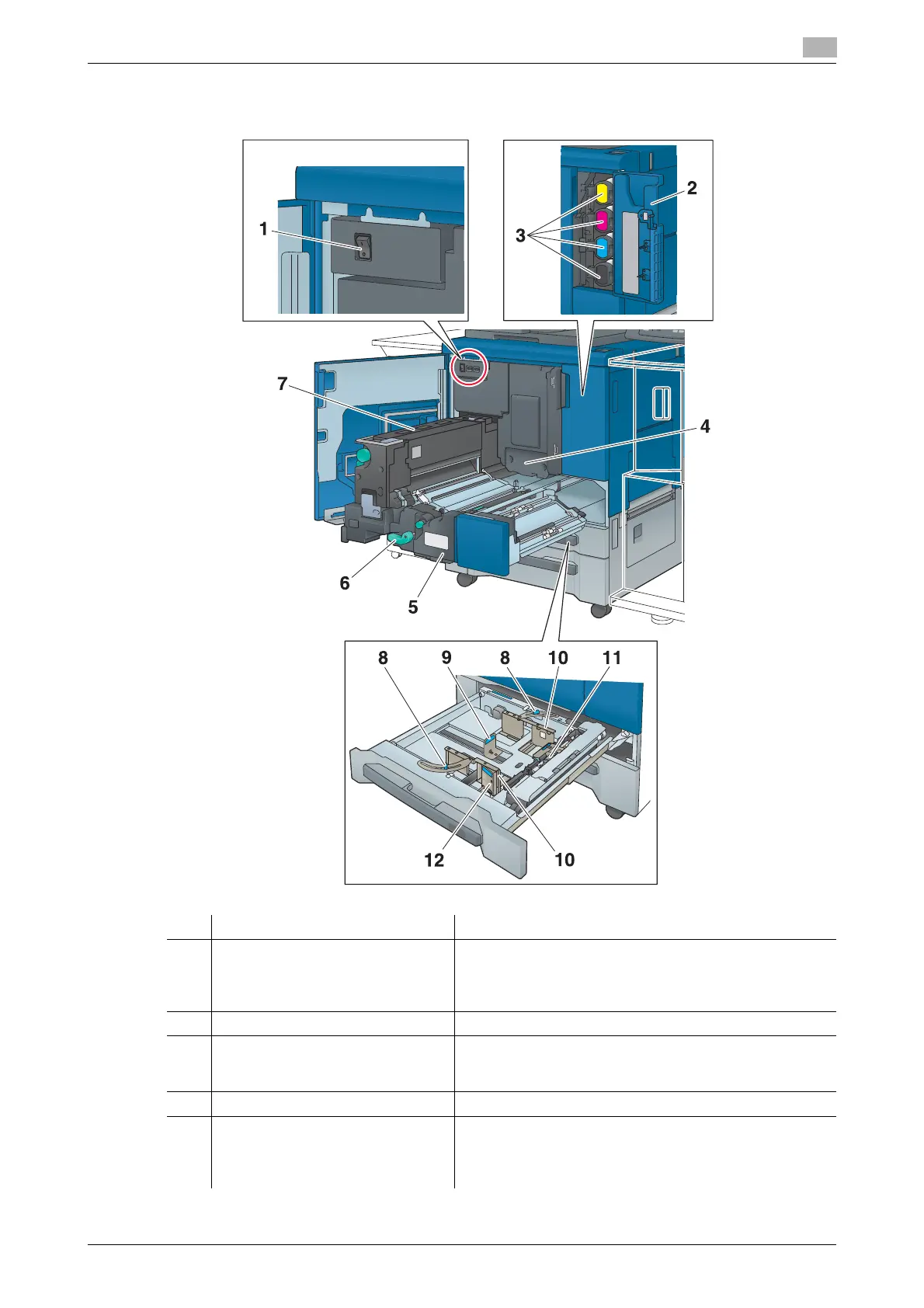

8.2.2 Internal components
No. Name Description
1 Main power switch Turns the main power of the machine on or off.
The main power is basically turned on or off by your service
representative. Be sure not to turn the main power switch
off in usual operation.
2 Toner access door Open when adding toner.
3 Toner bottle cover (Y, M, C, K) Open when placing a toner bottle in the machine.
Toner bottles are classified into four colors: yellow (Y),
magenta (M), cyan (C), and black (K).
4 Drum unit Generates a print image.
5 Conveyance fixing unit Pulled out to remove jammed paper. For information about
how to handle levers and knobs of the conveyance fixing
unit, refer to the screen displayed when a paper jam has
occurred.
