AccurioPress C2070series 6-23
6.1 Both Sides Adjustment
6

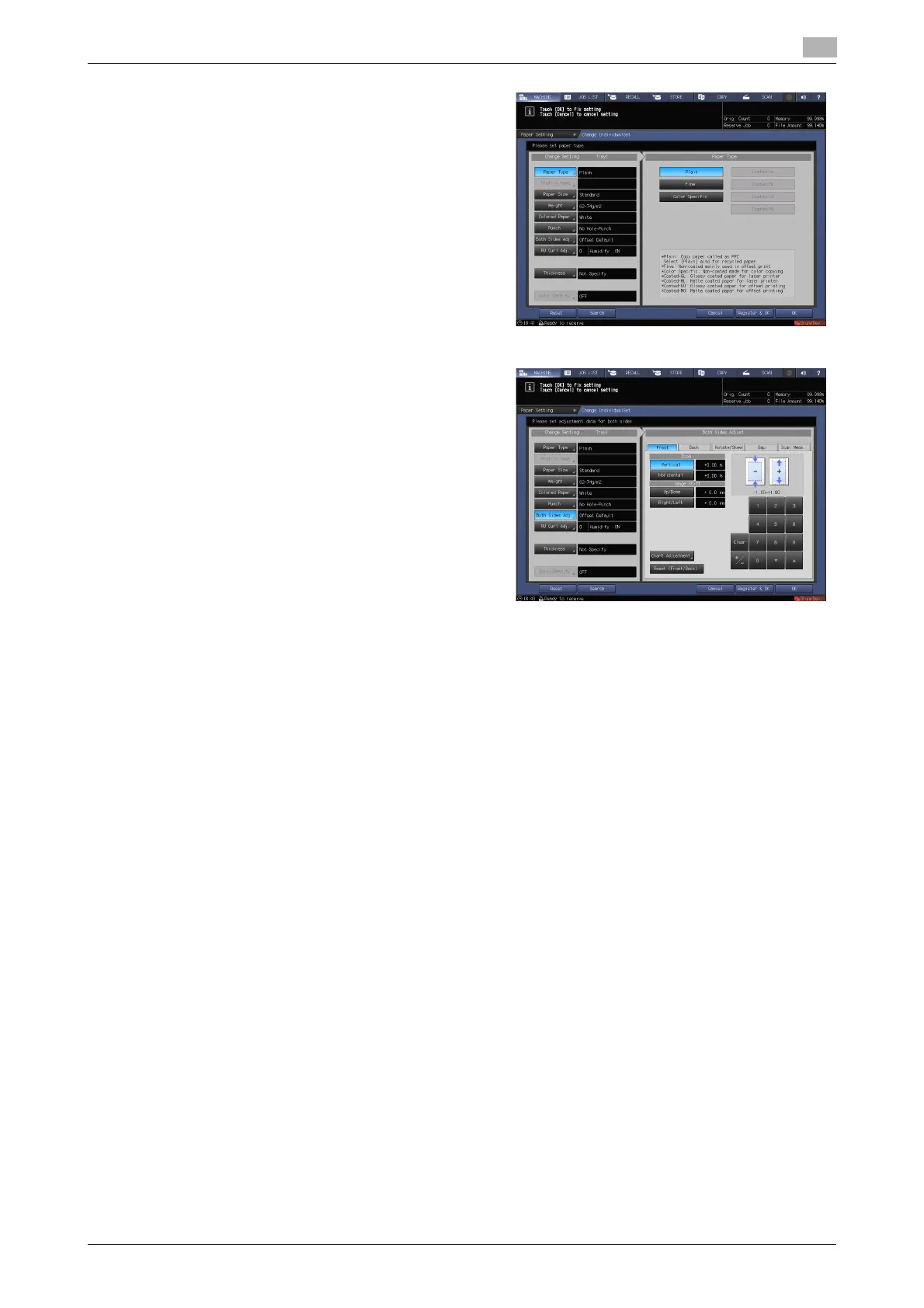

3 Press [Both Sides Adj].
4 Press [Front] or [Back] to select the print side to
be adjusted.
5 Enter the zoom ratio or the image shift value using the keypad, [,], or [+] on the screen or the Keypad
on the control panel.
% To specify the zoom ratio, press [Vertical] or [Horizontal], then enter a value.
[Vertical] is used to adjust the zoom ratio in the crosswise direction.
[Horizontal] is used to adjust the zoom ratio in the paper feed direction.
To enlarge the print side, enter the value with a positive mark (+). To reduce it, enter the value with
a negative mark (-).
The adjustment value changes 0.01% on a 1-step basis.
Adjustment Range: [Vertical] -1.00 to +1.00, [Horizontal] -1.00 to +1.00
*
*
[Horizontal] of [Back] must be specified between -0.80 and +0.20.
% To move the print side upward, downward, leftward, or rightward (image shift), press [Up/Down] or
[Right/Left], then enter the value.
To move the print side upward or rightward, enter the value with a positive mark (+). To move the
print side downward or leftward, enter the value with a negative mark (-).
The adjustment value changes 0.1 mm on a 1-step basis.
Adjustment range: [Up/Down] -10.0 to +10.0, [Right/Left] -3.0 to +3.0
% If [Back Side Magnification Adjustment] is set to [OFF], [Horizontal] of [Back] is not available.
% To switch the positive mark (+) and negative mark (-), press [+/-].
% To reset the numeric value you are currently entering, press [Clear].
% Pressing [Reset (Front/Back)] resets all the values you entered in [Front], [Back], or [Rotate/Skew].
To Next Page
