6.1 Both Sides Adjustment
6
AccurioPress C2070series 6-24

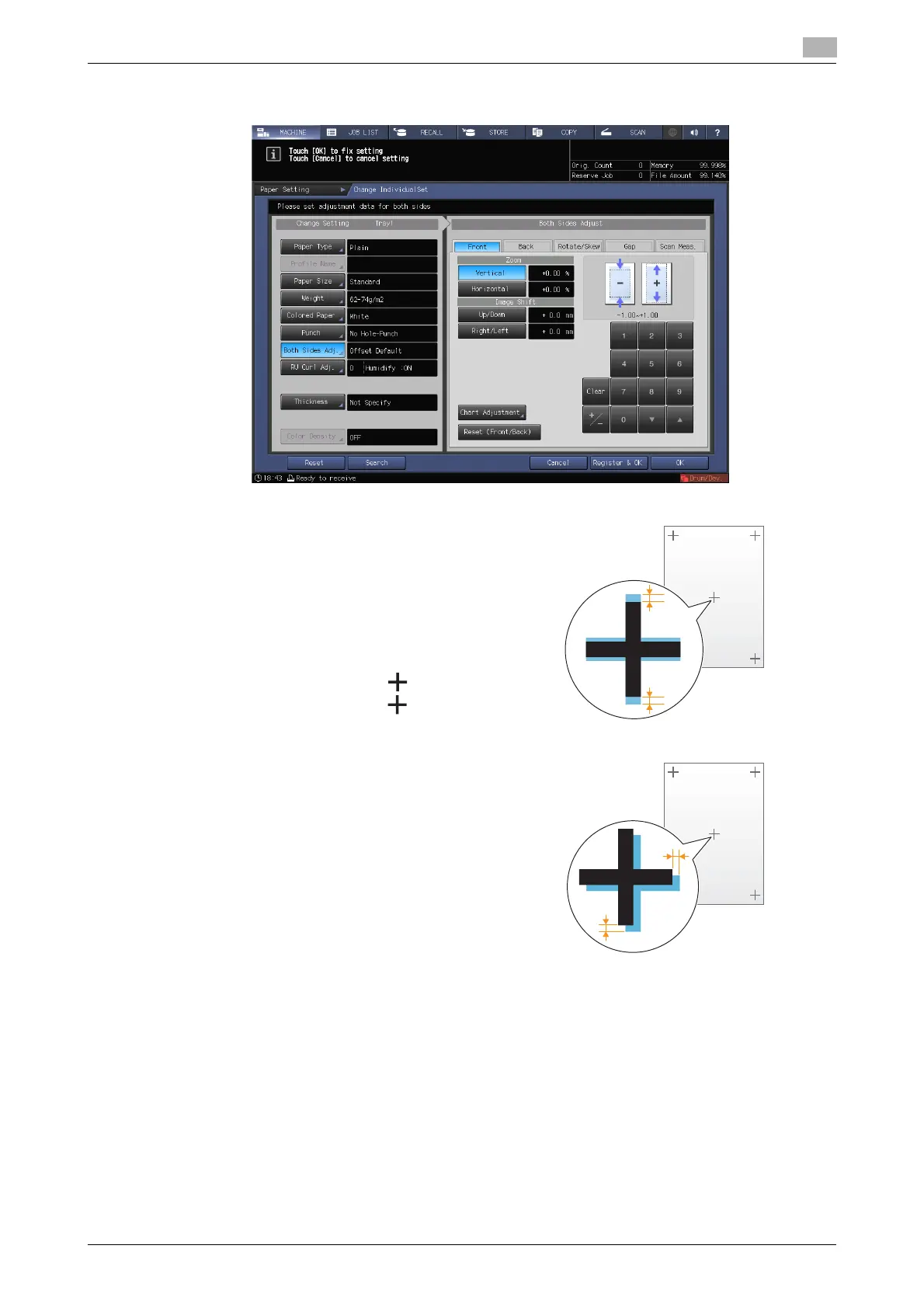

% To adjust the zoom ratio and image shift, check the status in the center of a page.
Zoom ratio adjustment example:
The image on the front side is 10 mm in a length-
wise direction while the image on the back side
has been lengthened to 10.1 mm.
% Press [Vertical] of [Back], then press [1][0][0].
% Then, press [+/-] to change the mark to set
the adjustment value to [-1.00].
The image on the back side is reduced by 1%.
In this figure, the black mark indicates the
front side and the blue mark indicates the
back side.
Image shift adjustment example:
The image on the back side is misaligned 0.5
mm downward and 0.3 mm rightward com-
pared with that on the front side.
% Press [Up/Down] of [Back], then press [5] to
set the adjustment value to [+0.5 mm].
% Next, press [Right/Left], then press [3] and
[+/-] in sequence to set the adjustment value
to [-0.3 mm].
The image on the back side shifts 0.5 mm up-
ward and 0.3 mm leftward.
