Troubleshooting

C450 5-11

Troubleshooting Chapter 5

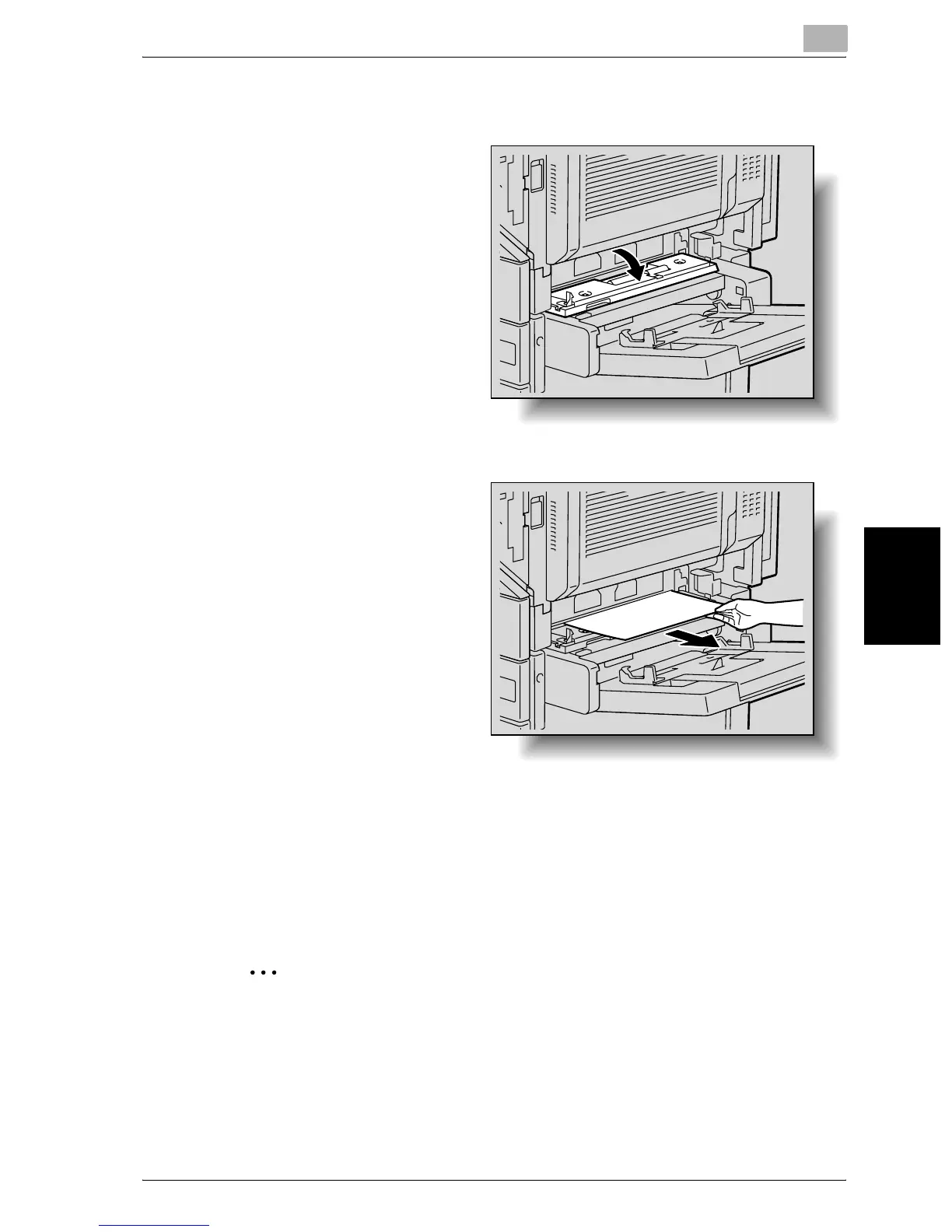

To clear a paper misfeed in the 1st or 2nd drawer

1 Pull the lever, and then

open the right-side door

of the 1st drawer.

2 Carefully pull out any

misfed paper.

3 Close the right-side door.

4 Pull out the paper drawer, and then remove any misfed paper.

5 Close the paper drawer.

Reminder

Be careful not to touch the surface of the paper take-up roller (in the 1st

drawer) or the film (in the 2nd drawer) with your hands.
