Replacing Toner Cartridges and Staples and Emptying Waste Containers

9-14 C450

Replacing Toner Cartridges and Staples and Emptying Waste Containers Chapter 9

To replace the staple cartridge for finisher FS-603

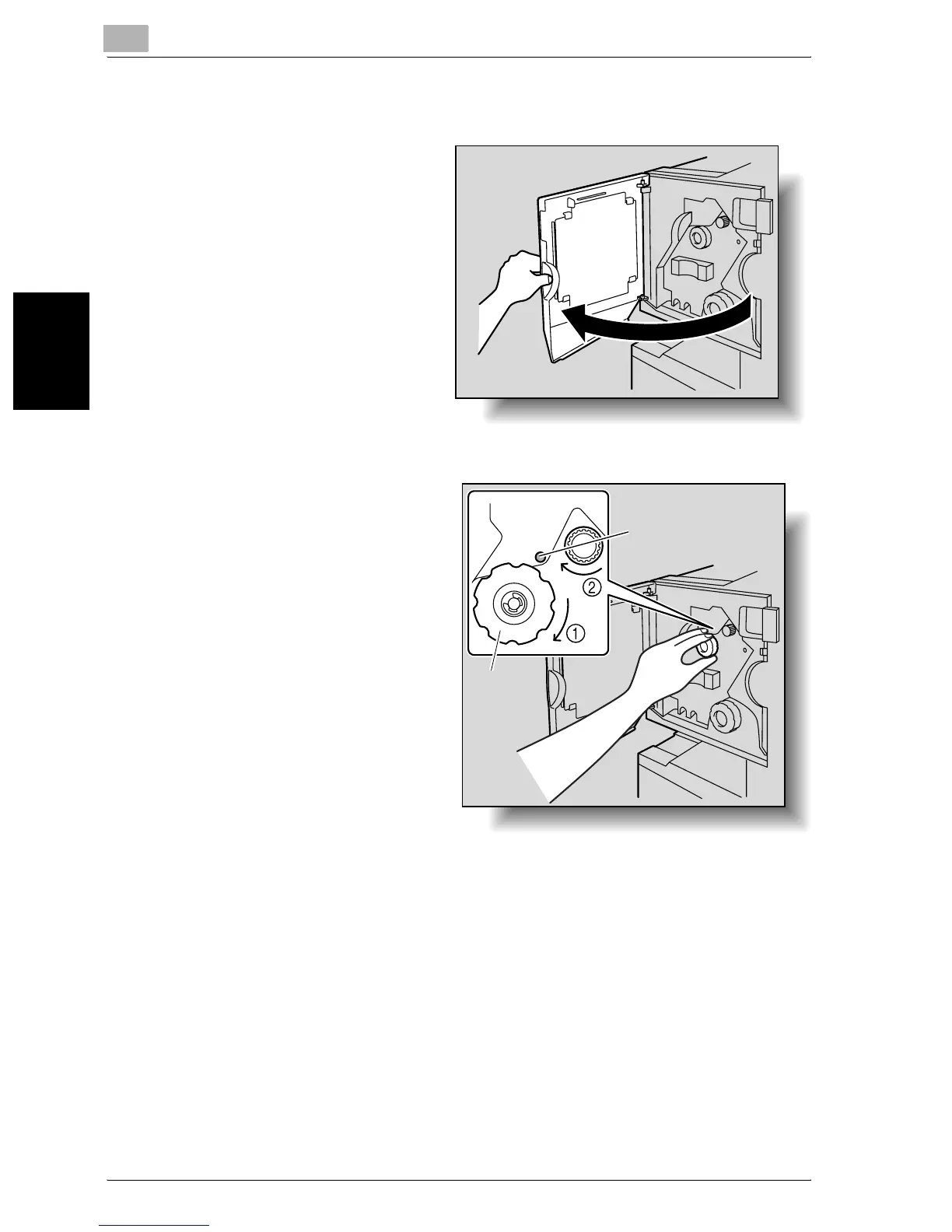

1 Open the front door of

the finisher.

2 Turn misfeed-clearing

dial 1 clockwise until the

removal indicator is

completely blue.

What should be done

if the misfeed-clear-

ing dial 1 is turned

too far?

% Turn the misfeed-

clearing dial 1 coun-

terclockwise to finely

adjust it.

Removal indicator

Misfeed-

clearing

dial 1
