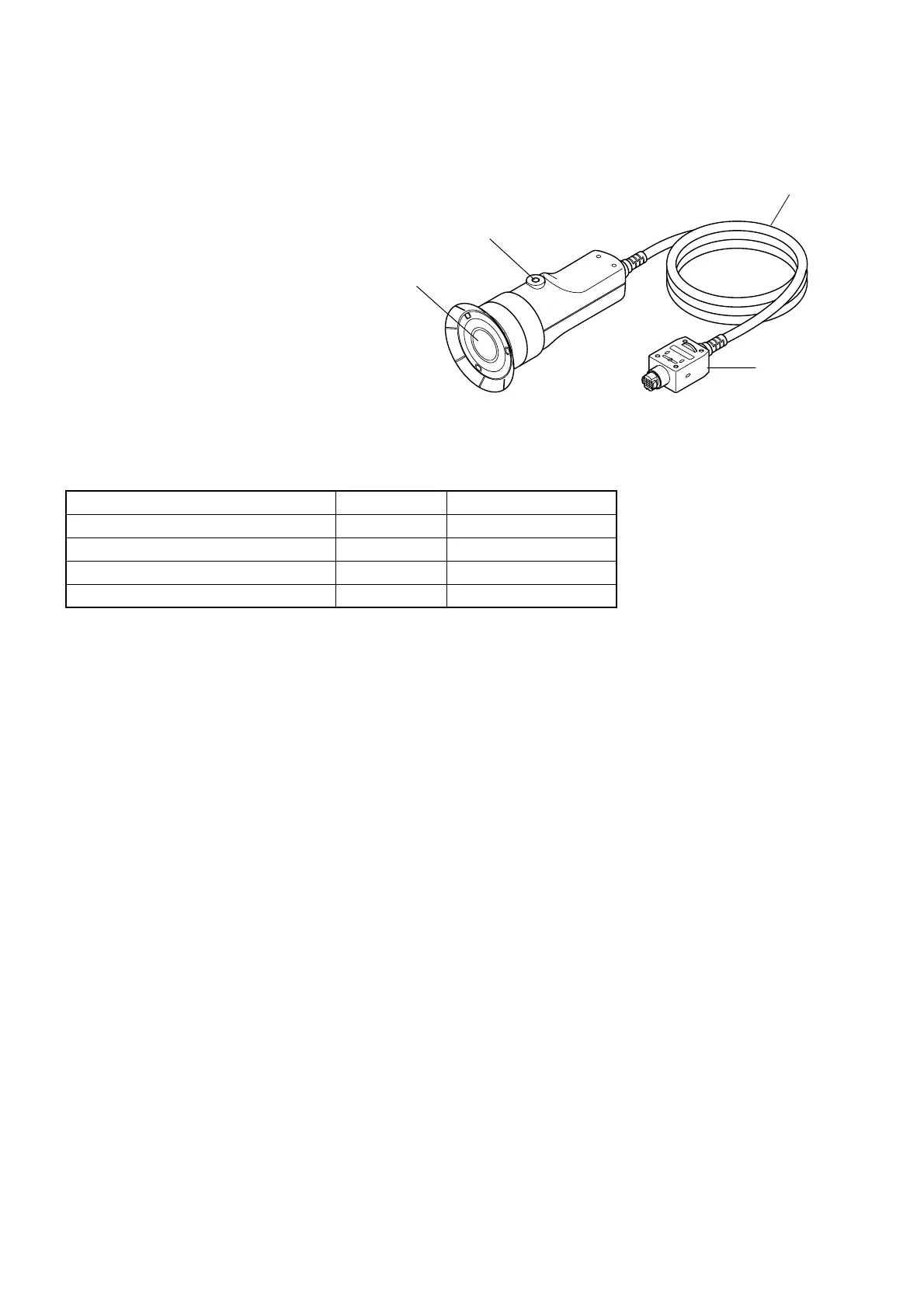

Connecting cord
(CA-P02/PH02: 2 m/6.6 ft)
(CA-P05/PH05: 5 m/6.6 ft)
1 Receptor area
2 Screw hole
ISO screw 5 mm
(depth: 6 mm)
3 Plug
Measuring is done with a probe in intimate contact with the surface of display in the measuring part of this equip-
ment. There are 2 m and 5 m long cord. There are 2 types of Measuring Probe.
Probe model Cord length Product name
Measuring Probe 2m CA-P02
Measuring Probe 5m CA-P05(option)
Hith luminance Measuring Probe 2m CA-PH02
Hith luminance Measuring Probe 5m CA-PH05(option)
∗ Either of the accessories described above is included.
1 Receptor ................................................... • Place this receptor with the display’s screen surface and perform
measurement.
2 Screw hole ............................................... • Used to secure the probe to a jig etc.
3 Plug .......................................................... • Connect this plug to the probe connector on the main unit or that
on the optional 4-Probe Expansion Board (CA-B04).
Measuring Probe CA-P02(2m) /CA-P05(5m)
High luminance Measuring Probe CA-PH02(2m) /CA-PH05(5m)
